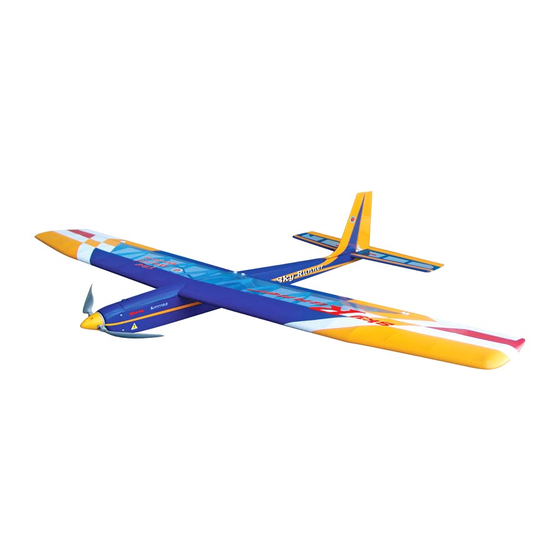

THE WORLD MODELS Sky Runner Instruction Manual

Hide thumbs Also See for Sky Runner:
Table of Contents

Advertisement

Quick Links

Download this manual
Requires : 4-channel radio w/ 4 micro servos,
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
E240RXMPO24071007
Outrunner Motor w/ Propeller Adaptor
20A Brushless ESC, 3 cells 11.1V
2100mAh Li - Po battery & charger.
*Specifications are subject to change without notice.*
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
INSTRUCTION MANUAL
49 in / 1240 mm
336 sq in / 21.7 sq dm
23.7 oz / 670 g
33 in / 835 mm
ALMOST-READY-TO-FLY(ARF)SERIES
FACTORY PRE-FABRICATED
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sky Runner and is the answer not in the manual?

Questions and answers

Related Manuals for THE WORLD MODELS Sky Runner

Summary of Contents for THE WORLD MODELS Sky Runner

  • Page 1 Operating this model without prior preparation may cause injuries. Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. FACTORY PRE-FABRICATED The World Models ALMOST-READY-TO-FLY(ARF)SERIES Manufacturing Co., LTD. MADE IN CHINA www.theworldmodels.com...

  • Page 2: Before You Begin

    INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-9 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
  • Page 3 1. MAIN WING -- 1 pc. 8. FUEL TUBE d2xD4x4mm -- 2 pcs WING JOINER Ø4.5x110mm -- 1 pc. STRAPER PL4112106 -- 2 pcs SPONGE 10x50x150mm (For Battery) -- 1 pc. 2. SCREW PB2x12mm -- 4 pcs DOUBLE-SIDEDTAPE 30x35mm -- 2 pcs STRAPER PL4112106 -- 2 pcs BATTERY TIE --1 pc.
  • Page 4 Apply instant type CA glue to both sides of each hinge. Wing Joiner Ø4.5x110mm Aileron Servo Lead Completed Straper Ø1mm pilot holes for World PB2x12mm Screw Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. Pushrod Ø1.4x63mm Fuel Tube...
  • Page 5 Temporary install the main wing, adjust leveling of the stabilizer to make it as parallel to the main wing as possible. Completed Apply instant type CA glue to both sides of each hinge. C’ C=C’ Apply instant type CA glue to both sides of each hinge.
  • Page 6 Ø1mm pilot holes for World Models tri-horn are pre-drilled. PB2x8mm Screw Please look for pin-hole marks at under side of control surfaces. Bottom View Ø1mm pilot holes for World Models tri-horn are pre-drilled. PB2x10mm Screw Please look for pin-hole marks at under side of control surfaces.
  • Page 7 Make sure rotating motor casing is not in contact with wirings or anything. M3x6mm Socket Head Screw d3xD7mm Washer PWA2x8mm Screw PA2.6x8mm Screw Optional Parts Outrunner Motor 28/ 30 KM0203800 Propeller Adaptor Don't over-tighten the PM3 screws, to much stress on (d3xD5) HW2340101 the screws could split the firewall.
  • Page 8 Battery Install and arrange the servo as shown in the diagram. Sponge Elevator Pushrod Elevator Servo 20A Speed Controller Double-Sided Tape Straper Fuel Tube d2xD4x4mm Rudder Servo Battery Receiver Rudder Pushrod Battery Tie Double-Sided Tape Nylon Bolt M2.5x16mm Plastic Plate Nylon Washer 0.8x20x42mm d2.6xD9mm...
  • Page 9 A=A' B=B' C=C' E240RXMPO24071007...

  • Page 10: Important Safety Precautions

    The ideal C.G. position is 52mm (2.0 in.) behind the leading edge measured at where the wing meets the fuselage. In order to obtain the C.G. Specified, add weight to the fuselage or move the battery position. Check the C.G. Before flying.
  • Page 11 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K, Bennett Drive, Livermore, CA 94551 USA. 1.
  • Page 12 E240RXMPO24071007...

  • Page 13: Optional Parts
