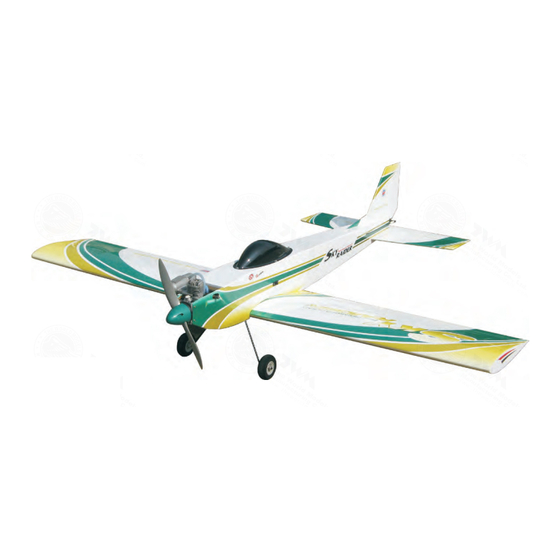

S K Y
M a c h
0.40 0 46 Cubic inch displacement 2 stroke
- .
Requires: 4- channel
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries Remember, safety is the most important thing. Always keep this instruction manual at
.
hand for quick reference.
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
A178NPO29981403
R A I D E R
I I
Specifications
*Specifications are subject to change without notice.*
radio
w/ 4 standard servos
54.0 in / 1370 mm
556 sq in / 35.9 sq dm
5 lb / 2200 g
47.5 in / 1210 mm
INSTRUCTION MANUAL
-
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sky Raider Mach II and is the answer not in the manual?

Questions and answers

Summary of Contents for THE WORLD MODELS Sky Raider Mach II

  • Page 1 Operating this model without prior preparation may cause injuries Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. FACTORY PRE-FABRICATED The World Models Manufacturing Co., Ltd. ALMOST-READY-TO-FLY (ARF) SERIES MADE IN CHINA www.theworldmodels.com...
  • Page 2: Before You Begin

    S K Y R A I D E R M a c h INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-11 P.11 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so that you can have an overall idea of what to do. Check all parts.
  • Page 3: Parts List

    Parts List 1.MAIN WING -- 1 pair 13.PUSHROD Ø1.8x685mm w/ Threads (For Rudder) -- 1 pc. SCREW PB2x12mm -- 3 pcs 2.WING JOINER 6x26x149.4mm -- 1 pc. TRI-HORN M3x14mm PL4111221 -- 1 set FUEL TUBE Ø6X5mm -- 1 pc. 3.PLYWOOD 3x8x22mm -- 1 pc. CLEVIS PL4112103 -- 1 pc.
  • Page 4: Aileron Servo

    Main Wing Pre-glued Left Wing Please dry fit wing joiner into left and right wing to make sure they fit with the proper Main Wing dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of all surfaces in contact.
  • Page 5: Stabilizer & Elevator

    Aileron Servo TWM PL8210010 Ø CLEVIS WRENCH Pushrod 1.8x135mm Straper • Fuel Tube • 6x5mm Ø Clevis Ring Completed Stabilizer & Elevator Pre-glued A=A' Bottom View Completed A178NPO29981403...
  • Page 6: Main Landing Gear

    ertical Fin / Rudder Use thread locker when tightening Screw PM3 x 65mm screw. Don't excessive force Washer d3 x D7mm as you are dealing with balsa. P r e - g l u e d PM3x65mm Washer d3xD7mm Completed ●Bottom View Main Landing Gear Set Screw...
  • Page 7: Engine Mount

    ail Landing Gear PA3 X12mm Screw PM2 x 12mm Screw Aluminum Plate M2 Nut PM2 x 12mm 2.1mm Collar 2.1mm Collar 3mm Set Screw PA3 X12mm 1.5mm Completed Bottom View Engine Mount Socket Head Screw M 3 x 20mm M3 x 20mm Socket Head Screw Washer d3xD7mm d3 x D7mm...
  • Page 8: Elevator Pushrod

    Fuel Tank Cable Tie Double-sided Tape 1.5x5x400mm 40x100mm Fuel Tank 260cc Completed ervo Set 3x3mm Set Screw 3 X 3mm Set Screw Linkage Connector Washer Washer Washer 2m m Throttle Servo. M2 Nut Please refer to attached sheet for linkage connector installation. Ø1mm pilot holes for World Models tri-horn are pre-drilled.
  • Page 9: Rudder Pushrod

    Ø1mm pilot holes for World Models tri-horn Rudder Pushrod are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PB2 x 12mm Screw TWM PL8210010 CLEVIS WRENCH PB2 x 12mm Clevis Fuel Tube Tri-Horn Ø 6 x 5mm M3x14mm Pushrod Ø1.8 x 685mm PM2x10mm...
  • Page 10 adio Equipment Install and arrange the servos as shown in the diagram. Charge Receptacles Rudder Servo Receiver Switch Harness Throttle Servo KP0041300 Fuel Tube Fuel Tube Battery Rudder Ø Ø 6 x 5mm 6 x 5mm Pushrod Straper Straper Elevator Pushrod Plastic Tube Throttle Pushwire...
  • Page 11 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A178NPO29981403 P.1 0...
  • Page 12: Control Throws

    Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your Elevator personal preference. 15mm 15mm Rudder 20mm 20mm Aileron The ideal C.G. position is 76mm (3 in) behind the leading C.G.
  • Page 13 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
  • Page 14 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K, Bennett Drive, Livermore CA 94551 USA. 1.
  • Page 15: Optional Parts

    Optional Parts ACCESSORIES) 180mm Extension Fuel Filler Code No. Size Package Code No. Size Package KW0011800 180mm 1 set PL8110030 15 x 22 x 49mm 1 x 1 pc 180mm Y-Cord Code No. Size Package KW0021800 180mm 1 pc Clevis Wrench Code No.
  • Page 16 The World Models Manufacturing Co., Ltd. www.theworldmodels.com A178NPO29981403...
