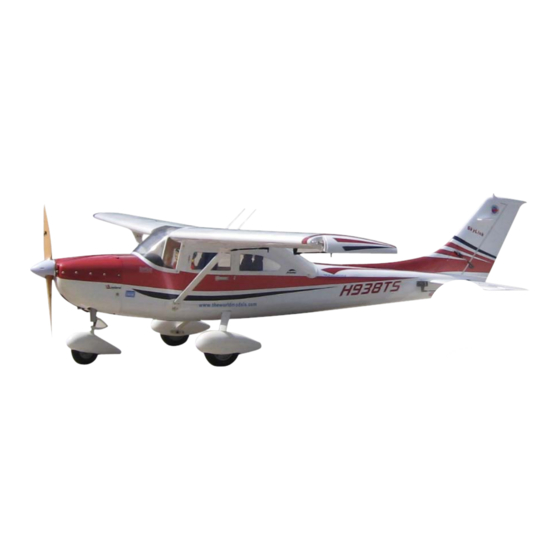

50CC SKY LINK
50CC SKY LINK
50cc gasoline engine
Requires : 6-channel radio w/ 9 high torque servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
THE WORLD MODELS
MANUFACTURING CO., LTD.
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
www.theworldmodels.com
www.HOBBIRAN.COM
Specifications
*Specifications are subject to change without notice.*
108 in / 2745 mm
1575 sq in / 101.6 sq dm
21 Ib / 9.5 kg
84.5 in / 2145 mm
INSTRUCTION MANUAL
Advertisement
Table of Contents
Related Manuals for THE WORLD MODELS 50CC SKY LINK
Summary of Contents for THE WORLD MODELS 50CC SKY LINK
- Page 1 INSTRUCTION MANUAL 50CC SKY LINK 50CC SKY LINK 50cc gasoline engine Requires : 6-channel radio w/ 9 high torque servos Specifications Wing Span 108 in / 2745 mm Wing Area 1575 sq in / 101.6 sq dm Flying Weight 21 Ib / 9.5 kg Fuselage Length 84.5 in / 2145 mm...
-
Page 2: Before You Begin
50CC SKY LINK 50CC SKY LINK INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.12 SAFETY PRECAUTIONS P.13 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 9. SOCKET HEAD SCREW M6x50mm -- 4 pcs PUSHROD Ø1.8x480mm (For Throttle) -- 1 pc. 2. SOCKET HEAD SCREW M4x60mm -- 4 pcs PLASTIC TUBE d2xD3x160mm (For Throttle) -- 1 pc. SCREW PWA2x8mm -- 24 pcs WASHER d6xD15mm -- 4 pcs M4 NYLOON INSERT LOCK NUT -- 4 pcs M6 BLIND NUT -- 4 pcs... - Page 4 Main Wing Aileron Servo Lead Pre-glued Bottom View Aileron & Flap Servos M4x60mm Socket Head Screw M2x8mm Lamp Cover Socket Head Screw PL4120300 PWA2x8mm Screw Signal Lamp PWA2x8mm Nylon Insert Lock Nut 1.5mm M2 Nylon Insert M2 Nylon Insert Lock Nut Lock Nut Heavy Duty Clevis...
-
Page 5: Elevator Pushrod
Stabilizer & Elevator d3xD7mm Washer PA3x12mm Screw PA3x12mm Stabilizer Tube Ø 9.6 x 521mm 3xD7mm Washer 2.5mm Pre-glued PA3x12mm d3xD7mm Washer 2.5mm Completed Elevator Pushrod M4x55mm Socket Head Screw Heavy Duty Servo Horns ( w / Bearing) PL4120250 Nylon Insert Lock Nut M2 x 10mm M2 Nylon Insert Lock Nut... -
Page 6: Rudder Pushrod
Vertical Fin & Rudder Signal Lamp Signal Lamp Wire Lead Vertical Fin`s Wing 6x65x85mm Pre-glued Rudder Pushrod M2x8mm Socket Head Screw PL4120300 PWA2x8 mm Screw C’ M4x60mm Socket Head Screw Nylon Insert Lock Nut C=C’ 1.5mm M2 Nylon Insert Lock Nut M2 Nylon Insert Lock Nut PWA2 x 8mm... - Page 7 Front Landing Gear M3 x 3mm M3 x 3mm Collar 5.6 mm Set Screw Set Screw M4x4mm Set Screw 5.6 mm Collar PA3x25mm Screw 5.6 mm Collar PA3x30mm Screw Wheel Ø100mm Wheel Pant M4 x 4mm Set Screw M4 x 4mm M4 x 4mm Set Screw Set Screw...
-
Page 8: Main Landing Gear
Main Landing Gear M5x65mm Socket Head Screw Wheel Ø128mm M5x25mm Socket Head Screw M3x3mm d5xD12mm Washer Set Screw PWA3x8mm Screw M5x65mm d5xD12mm Washer d5 x D12 mm Main Landing Washer Gear Cover M5 x 25 mm M5 Nut 5.1mm Collar 5.1mm Plate 1mm Front... -
Page 9: Fuel Tank
Fuel Tank Fuel Tank Instrument Panel 800cc Install Balsa 10x10x130.4mm (For Fuel Tank Position Fixing) Fuel Tank Completed 800cc Servo Set 3x3mm Set Screw 3x3mm Set Screw Throttle Pushwire Linkage Connector Washer M2 Nut Washer 1.5mm Throttle Servo. 2mm Washer M2 Nut Please refer to the attached sheet for linkage connector installation. - Page 10 Canopy First insert the grommet to the canopy then apply screw. PWA2.3x12mm Screw PWA2.3x12mm PWA2.3x12mm PWA2.3x12mm d1.5xD6.5mm Silicon Grommet d1.5xD6.5mm Silicon Grommet Pilot Mounting Plate PM2x12mm M2 Nylon PM2x12mm Screw Insert Lock Nylon Insert Lock Nut Pilot Statues Completed Cowling First insert the grommet to the cowling then apply screw.
- Page 11 Main Wing Step 1. Insert the aluminum wing tube with the pre-drilled hole end into the right wing. Align the lines marked at the wing root and wing tube and apply the M3 x 35mm & M3x25mm machine screw through the pre-drilled hole on top of the wing. ( please confirm the alignment of the hole by putting a 2.5mm diameter rod through the pre-drilled wing hole before applying the screw ) M3x35mm Socket Head Screw...
- Page 12 Antenna & Ornament PA2x12mm Screw PA2x12mm Ornament Ornament Aileron Ornament Elevator Completed P.11...
- Page 13 Decals Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can Rudder adjust according to your personal preference. 35mm 35mm Elevator 30mm 30mm Flaps (near fuselage) 60mm Ailerons (away from fuselage) 20mm 20mm C.G.
- Page 14 # First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. 50CC SKY LINK 50CC SKY LINK is specially designed to be powered by 50 c.c. gasoline engine, using a more powerful engine does not mean better performance.
- Page 15 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 16 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 2403 Research Drive, Livermore, CA 94550 USA. 1.
- Page 17 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
-
Page 18: Optional Parts
Optional Parts ACCESSORIES) 180mm Extension Clevis Wrench Code No. Size Package Code No. Size Package PL8210010 1 set KW0011800 180mm 1 set Large Clevis Small Clevis Special tool for clevis installation. Suitable for standard and small (EP) clevis. 180mm Y-Cord Code No. - Page 20 http://www.theworldmodels.com A306PO21090907...
