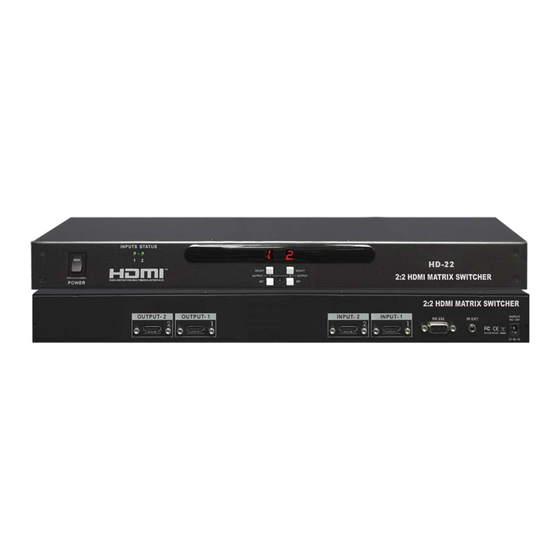

HD-22
2x2 HDMI Matrix Switcher
INSTRUCTION MANUAL
HDMI Matrix Switcher Series
Thank you for purchasing the HD-22 HDMI Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it
is essential that you read this manual thoroughly before attempting to use 2x2 HDMI Matrix switcher.
Advertisement
Table of Contents
Related Manuals for A-Neuvideo HD-22
Summary of Contents for A-Neuvideo HD-22
- Page 1 HDMI Matrix Switcher Series Thank you for purchasing the HD-22 HDMI Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 2x2 HDMI Matrix switcher.
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
INSTRUCTION The HD-22 is a 2x2 HDMI Matrix Switcher featuring 2 inputs and pre-emphasized 2 outputs. • 2 inputs as following : 2 x HDMI (Digital Video/Audio) • 2 matrix outputs as following : 2 x HDMI (Digital Video/Audio) Automatic input/output HD signals detection : •... -
Page 4: Features
FEATURES & SPECIFICATIONS FEATURES • Supports 2x HDMI digital A/V devices independently switched to 2x HDMI monitors • HDMI digital video/audio format, DVI format and HDCP compliant • Support HDMI/DVI high defi nition resolutions 408p, 720p, 1080i/1080p • Supporting link speeds of up to 2.25 Gbps (link clock rate of 225 MHZ) •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL POWER SWITCH The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be evoked. INPUT STATUS DISPLAY Input sources 1 to 2 LED illuminates blue to indicate that a video source is present on that input. -
Page 6: Rear Panel
REAR PANEL REAR PANEL DC POWER INLET The Switcher is fi tted with a DC power plug input connector. Power Jack: Ensure that the used is of an approved type and is of suffi cient DC Jack - Inner OD ᴓ 2.1mm (+ ) current carrying connector capacity with the correct voltage and Outside OD ᴓ... -
Page 7: Remote Control
REMOTE CONTROL Before making any connections to the HD-22. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug- Pack (+/- 10%) > Power up all source and destination audio-visual sources >... -
Page 8: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used Ground -------- Not used -------- Not used -------- Not used -------- Not used RS-232 The switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system. -
Page 9: Rs-232 Serial Commands
RS-232 SERIAL COMMANDS MORE STUFF FOR HD-22 Note: Turning the unit System Power Off over RS-232 will distinguish the LED display leaving only the Power Switch LED on. The Video and Audio outputs will also mute. While the unit is turned off by RS-232 it will continue to accept and act upon switching commands. - Page 10 2. HDMI - HDMI connector with fi x screw OUTPUT PORT SIGNALS : 1. HDMI - HDMI connector with fi x screw 2. HDMI - HDMI connector with fi x screw HD-22 SUPPORTS TWO HDMI INPUTS TO TWO HDMI MATRIX OUTPUTS SUPPORT IR & IR EXTENDER PORTS...
-
Page 11: Ir Extender
IR EXTENDER REAR PANEL IR EXTENDER PORT HD-22 IR Extender to a Room IR EXTENDER PACKAGE : HOW TO SETUP THE IR EXTENDER COMPONENTS... -
Page 12: Instruction
LIMITED WARRANTY WARRANTY Warrants this product against defects in materials and workman ship for a period of 3 years from the date of purchase. Please be sure to send in your warranty registration card promptly, as the warranty will not be active without registration. Should this product, after inspection, prove defective within this warranty period, at its option, will repair or replace this product without charge, to whatever extent it shall deem necessary to restore said product to proper operation condition.
