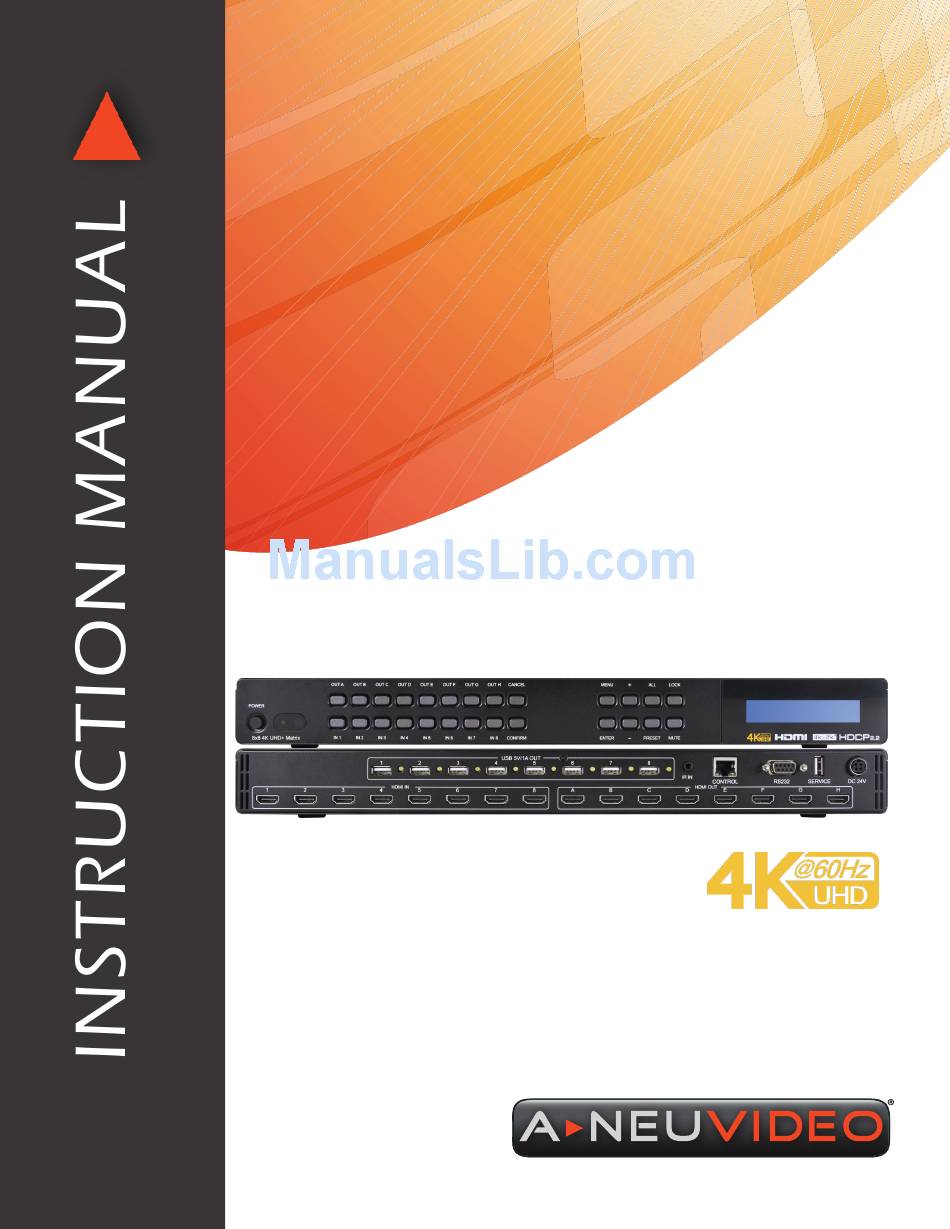

- Page 1 ANI-88HDRH 8X8 HDR 4K@60HZ HDMI 18G MATRIX SWITCHER SCALER w/ USB POWER PORTS A-NeuVideo.com Frisco, Texas 75034 (469) 277-7606 AUDIO / VIDEO MANUFACTURER...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
This product has a 3 year warranty. We reserve the right to make improvements to this document and/ PACKAGE CONTENTS or product at any time and without notice. • ANI-88HDRH Matrix • Remote control unit • Rack ear set COPYRIGHT NOTICE •... -
Page 4: Features & Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI 2.0a and DVI 1.0 compliant • HDCP 1.4 and 2.2 compliant • (8) 6G HDMI inputs can be matrixed to (8) 6G displays • Supports HDTV resolutions up to 4K (3840x2160@24/25/30/50/60Hz & 4096x2160@24/25/30/50/60Hz) and VGA~WUXGA (RB) •... -
Page 5: Operation Controls & Functions

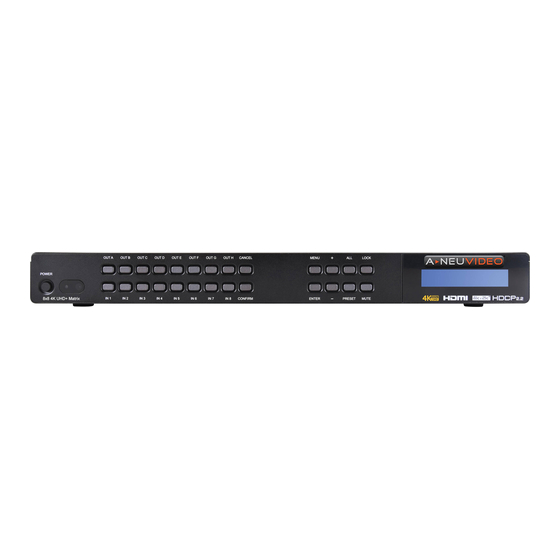

NEUVIDEO OPERATION CONTROLS & FUNCTIONS FRONT PANEL POWER: Press this button to power the unit on (Green LED) or place it into stand-by mode (Red LED). IR RECEIVING WINDOW: Accepts IR signals from the included IR remote for control of this unit only. IN 1~8 &... -
Page 6: Rear Panel
NEUVIDEO OPERATION CONTROLS & FUNCTIONS Rear Panel HDMI IN 1~8: Connect to the HDMI source equipment such as media players, game consoles or set-top boxes. HDMI OUT A~H: Connect the HDMI outputs to devices such as HDMI TVs, monitors or amplifiers for digital video and audio output. Connect the optical outputs to powered speakers or amplifiers for digital audio output using an appropriate optical cable. -
Page 7: Remote Control & Ir Cable Pin Assignment
NEUVIDEO Remote Control & IR Cable Pin Assignment Remote Control POWER: Press to power the unit on or place it into stand-by mode. 1/A ~ 8/H: Press these keys to configure the video routing. Press the “OUT” key followed by the key (A~H) of the outputs you wish to route a source to (they will flash to indicate selection). -
Page 8: Lcd Menu Tree & Rs-232 Protocols
NEUVIDEO LCD Menu Tree & RS-232 Protocols LCD Menu Tree 1ST LEVEL 2ND LEVEL EDID In1 / In2 / In3 / In 4 / In All Preset Setup 1/2/3/4 Network Status Link (Valid) / Mode (Static/DHCP)/ IP/Mask / Gate/MAC Network Setup Mode: (Static/DHCP) Static: IP/Mask/Gate Firmware... - Page 9 NEUVIDEO RS-232 & Telnet Commands RS-232 & Telnet Commands COMMAND DESCRIPTION DESCRIPTION OF PARAMETER Print all available RS-232/Telnet NONE commands to the screen GET FW VER Print Firmware version to the screen NONE Print command version to the COMMAND VER NONE screen GET MAC ADDR...
-
Page 10: Rs-232 & Telnet Commands
NEUVIDEO RS-232 & Telnet Commands COMMAND DESCRIPTION DESCRIPTION OF PARAMETER SET TELNET USERNAME S Set Telnet username s = name string GET TELNET USERNAME Print Telnet username to the screen NONE GET TELNET USERNAME Print Telnet username to the screen NONE SET TELNET PASSWORD S Set Telnet password... - Page 11 NEUVIDEO RS-232 & Telnet Commands COMMAND DESCRIPTION DESCRIPTION OF PARAMETER Set machine usb power supply GET USB X POWER SUPPLY B x = a,b,c…h / b = ON, OFF mode to ON/OFF Print machine usb power supply GET USB X POWER SUPPLY x = a,b,c…h / b = ON, OFF mode Routing command for all OUTPUT...
- Page 12 NEUVIDEO RS-232 & Telnet Commands COMMAND DESCRIPTION DESCRIPTION OF PARAMETER x = a,b,c…h / s = black, white, red, green, blue, GET OUT X BANNER FONT COLOR S Query OSD text color magenta, yellow, cyan, gray s = black, white, red, green, blue, magenta, GET OUT BANNER FONT COLOR LIST S Query OSD text color list value yellow, cyan, gray x = a,b,c…h / s = black, blue, green, cyan, red,...
- Page 13 NEUVIDEO RS-232 & Telnet Commands COMMAND DESCRIPTION DESCRIPTION OF PARAMETER n = 1,2,3… 22 (1-INT1, 2-INT2…,7-USER1, 8-USESR2…,15-Sink A, 16-Sink B) Total User EDID number equal to Input source SET ALL IN EDID N Set select EDID to all input number. Total Sink EDID number equal to output number of device.
-
Page 14: Telnet Control
NEUVIDEO Telnet Control Telnet Control Before attempting to use the Telnet control, please ensure that both the Matrix (via the ‘LAN /CONTROL’ port) and the PC/Laptop are connected to the same active networks. To access the Telnet control in Windows 7, click on the ‘Start’ menu and type “cmd” in the search field then press ENTER. -
Page 15: Webgui Control
NEUVIDEO WebGUI Control WebGUI Control Install the IP Discovery Tool: 1. Please obtain the Device Discovery software and save it in a directory where you can easily find it. NOTE: The unit’s default IP address is 192.168.1.50 2. Connect the unit and your PC/Laptop to the same active network and execute the Device Discovery software. Click on “Find Devices on Network”... -
Page 16: Video Switch
NEUVIDEO WebGUI Control Video Switch This page provides video routing settings, preset saving/ loading, and Pattern timing/color control settings. • Video Routing: To begin assigning a new video route, please click the button of the HDMI output you wish to send video to and then click on the button of the preferred HDMI input port. - Page 17 NEUVIDEO WebGUI Control • Preset Setting This matrix can store up to (8) video routing presets. Presets can be utilized to store multiple different routing states in advance for rapid, hassle-free, recall. • Store: Once you have the matrix set the way you like, youcan click the “Preset Set”...
- Page 18 NEUVIDEO WebGUI Control EDID Settings This matrix provides the option of (6) standard EDIDs, (8) sink sourced EDIDs and (8) customer uploaded EDIDs that can be assigned to each input port individually. The names of the (8) customer uploaded EDIDs can changed if desired. •...
-
Page 19: System Setting
NEUVIDEO WebGUI Control Device Setting • This page provides device settings options including turning the USB power supply ON/OFF, changing the IR Channel and IR discrete custom code, Displays the unit’s temperature and current state of (2) external fans including individual fan RPM. The fan control default setting is always on. -
Page 20: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM CONNECTION DIAGRAM... -
Page 21: Supported Resolutions
NEUVIDEO Support Timing Support Timing RESOLUTION INPUT OUTPUT 640x480@60/72/75/85 720x400@85 720x480p@59.94/60 720x576p@50 800x600@56/60/72/75/85 1024x768@60/70/75/85 1152x864@75 1280x720p@50/59.94/60 1280x768@60/75 1280x800@60RB/60 1280x960@60 1280x1024@60 1360x768@60 1366x768@60 1440x480i@59.94/60 1440x576i@50 1400x1050@60RB/60 1440x900@60RB/60 1600x900@60 1600x1200@60 1680x1050@60RB/60 1920x1080@60RB 1920x1080i@60 1920x1080p@23.97/24/25/29.97/30/59.94/60 3840x2160p@24/25/30 3840x2160@50/60(4:4:4)/50/60(4:2:0) 4096x2160p@24... -
Page 22: Ir Cable Pin Assignment
NEUVIDEO HDMI Cable Length/ IR CABLE PIN ASSIGNMENT HDMI Cable Length TIMING INPUT OUTPUT 1080p ~33ft/10M ~33ft/10M 4K2K@30 ~33ft/10M ~33ft/10M 4K2K@60 (certified HDMI cable) ~10/3M ~33ft/10M IR Cable Pin Assignment IR Signal Power Grounding... - Page 23 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 24 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
