A-Neuvideo ANI-MODX Series Instruction Manual

Modular seamless matrix switcher
Hide thumbs Also See for ANI-MODX Series:
Table of Contents

Advertisement

Quick Links

Download this manual
A-NeuVideo.com
Frisco, Texas 75036
ANI-MODX

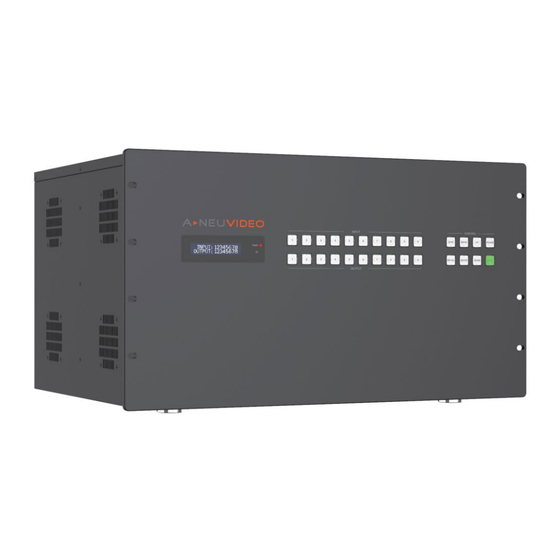

ANI-MODX Series: Modular Seamless Matrix Switcher
AUDIO / VIDEO MANUFACTURER
8x8
16x16
36x36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANI-MODX Series and is the answer not in the manual?

Questions and answers

Related Manuals for A-Neuvideo ANI-MODX Series

Summary of Contents for A-Neuvideo ANI-MODX Series

  • Page 1 ANI-MODX ANI-MODX Series: Modular Seamless Matrix Switcher 16x16 36x36 A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Keep unit protected from rain, water and excessive moisture.

  • Page 3: Table Of Contents

    NEUVIDEO TABLE OF CONTENTS CONTENTS PACKAGE CONTENTS ...............1 SAFETY PRECAUTIONS INTRODUCTION ................2 Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. FEATURES ...................2 Please keep the following in mind as you unpack and install this SPECIFICATIONS ................3 equipment: OPERATION CONTROLS &...

  • Page 4: Introduction

    NEUVIDEO INTRODUCTION & FEATURES INTRODUCTION This Modular Seamless Switching Matrix is a professional all-in-one machine that supports various audio and video signal switching and distribution, integrated video wall function and control system. It supports 8~72 signal Inputs and 8~72 signal Outputs. Audio and video matrix adopts pure hardware high-speed matrix switching chip, which has high integration, stable system, no compression/loss/delay of signal.

  • Page 5: Specifications

    NEUVIDEO Specifications Matrix TECHNICAL HDMI Compliance HDMI 1.4 (2K series card), HDMI 2.0b (4K series card) HDCP Compliance HDCP 1.4 (2K series card), HDCP2.2 (4K series card) Video Bandwidth 600MHz/18Gbps Video Resolution 1920x1200p60Hz (2K series card) 3840x2160p60Hz 4:4:4 (4K series card) Color Depth 2K series card: 8/10/12-bit (1080P60Hz) 4K series card: 8/10/12-bit (4K30Hz);...
  • Page 6 NEUVIDEO Specifications 2K Input/Output Card INTERFACE TYPE SIGNAL FORMAT DVI-U HDMI DVI VGA YPbPr HDMI: 640x480p60, 800x600p60, 1024x768p60, 1280x768p60, CVBS 1280x800p60, 1280x1024p60, 1360x768p60, 1400x1050p60, 1600x1200p60, 1920x1080p60, 1920x1200p60, 480i60, 576i50, 1080i50/60, 720p50/60, 1080p23/24/25/29/30/50/60 DVI / VGA: 640x480p60, 800x600p60, 1024x768p60, 1280x768p60, 1280x800p60, 1280x1024p60, 1360x768p60, 1440x900p60, 1400x1050p60, 1600x1200p60, 1920x1080p60, 1920x1200p60 Input YPbPr: 480i60, 576i50, 720p50, 720p60, 1080i50, 1080i60, 1080p50,...

  • Page 7: Operation Controls & Functions

    NEUVIDEO Operation Controls & Functions Front Panel (example: 16x16 Matrix) LED SCREEN : Display the status information (Matrix switching channel, EDID information, baud rate and so on). PWR LED: The power LED lights in green when the system is powered on, and red when the system is in standby. INPUT &...
  • Page 8 NEUVIDEO Operation Controls & Functions Rear Panel (example: 16x16 Matrix) INPUT CARDS : Video input card, connected to source devices directly or via an Extender OUTPUT CARDS: Video output card, connected to display devices directly or via an Extender. RS-232 / COM PORT: Connect to the PC or the third-party control processor to transmit RS-232 command and control the Matrix.

  • Page 9: Ir Remote

    NEUVIDEO IR Remote Remote Control POWER: Power on or set the unit to standby status. INPUT 0~9: Used to select the input channel. OUTPUT 0~9: Used to select the output channel. The IR Remote has the following three operation methods: Method 1: First press the input button, then press the output button to switch the input signal to the display device.

  • Page 10: Card Introduction

    NEUVIDEO Card Introduction 2K Input Card 2K HDMI Input Card SPECIFICATIONS Signal Channel 4-channel HDMI input signals Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz, 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50),...
  • Page 11 NEUVIDEO Card Introduction 2K VGA Input Card SPECIFICATIONS Signal Channel 4-channel VGA input signals Signal Format RGB (Analog) Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x720p60Hz, 1280x800p60Hz,1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz Horizontal Scan Frequency 15KHz ~ 90KHz Synchronization Type RGBHV Impedance 75Ω...
  • Page 12 NEUVIDEO Card Introduction 2K FIBER Input Card SPECIFICATIONS Signal Channel 4-channel FIBER input signals Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz, 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50),...
  • Page 13 NEUVIDEO Card Introduction 2K Output Card 2K HDMI Output Card SPECIFICATIONS Signal Channel 4-channel HDMI output signals Resolution 1024x768p60, 1280x720p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1600x1200p60, 1920x1080p30, 1920x1080p60, 1920x1200p60 (The user can select the resolution through the control software) HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth...
  • Page 14 NEUVIDEO Card Introduction 2K HDBT 100M Output Card SPECIFICATIONS Signal Channel 4-channel HDBT output signals Resolution 1024x768p60, 1280x720p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1600x1200p60, 1920x1080p30, 1920x1080p60, 1920x1200p60 (The user can select the resolution through the control software) HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 4.95Gbps...
  • Page 15 NEUVIDEO Card Introduction 2K SDI Output Card SPECIFICATIONS Signal Channel 4-channel SDI output signals Resolution 720x480i60Hz (480i60), 720x576i50Hz (576i50), 1280x720p25Hz (720p25), 1280x720p30Hz (720p30), 1280x720p50Hz (720p50), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i60Hz (1080i60), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p60Hz (1080p60) Signal Format HD-SDI (SMPTE 292M)/3G-SDI Video Bandwidth...
  • Page 16 NEUVIDEO Card Introduction 2K DVI Output Card SPECIFICATIONS Signal Channel 4-channel SDI output signals Signal Format DVI-I full digital TMDS signal, which is compliant with DVI1.0 *Supports these signal types via use of adaptors (not included) HDMI / YPbPr / VGA /COMPOSITE/ COMPONENT Resolution 1024x768p60, 1280x720p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1600x1200p60,...
  • Page 17 NEUVIDEO Card Introduction 4K Cards 4K HDMI Input Card SPECIFICATIONS Signal Channel 4-channel HDMI input signals Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz, 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50),...

  • Page 18: Host Computer Control Operation Guide

    NEUVIDEO Host Computer Control Operation Guide Login & Connection 1. Login: Double-click the Host Computer to enter the Login interface, as shown in the figure below: Input the username (admin) and the initial password (admin), then select the required language, finally click “Confirm” to enter the communication setting page.
  • Page 19 NEUVIDEO Host Computer Control Operation Guide Method 2. Serial connection Step 1. Connect the RS-232 port of the Matrix to a PC with the included RS-232 serial cable and USB to RS-232 serial cable, as shown in the figure below. Step 2.

  • Page 20: Host Computer Main Interface

    NEUVIDEO Host Computer Main Interface Matrix Switching Page (example of a 16X16) 1. Refresh Data & Reconnection: As shown in the figure above, icon is used to refresh the data of the current page; icon is used to return to the connection interface and reselect the connection method;...
  • Page 21 NEUVIDEO Host Computer Main Interface 3. Scene & Configuration There are 64 scenes in total. You can select the corresponding scenes to save or load. The parameters for Save Preset include the switching relationship between input and output ports and the configuration of video walls. The exported configurations mainly include: a.
  • Page 22 NEUVIDEO Host Computer Main Interface eRESOLUTION_1280_720P_60, eRESOLUTION_1024_768P_60, eRESOLUTION_1920_1080P_30, Mirroring mainly supports: H_MIRROR V_MIRROR H+V_MIRROR Picture Quality Setting Page Only the output port supports picture quality adjustment. The value ranges from 0 to 32, and all values after resetting are 16. Both input and output ports support position adjustment.
  • Page 23 NEUVIDEO Host Computer Main Interface System Setting Page MODIFY NETWORK SETTING Modify the IP Mode, IP Address, Gateway, Subnet Mask, TCP Port, Telnet Port and Baud rate as required, click “Save” to save the settings, then it will come into effect. After modification, if the IP Mode is “Static”, it will switch to the corresponding IP Address;...
  • Page 24 NEUVIDEO Host Computer Main Interface System Upgrade Page SYSTEM UPGRADE Click “Select File” to select the upgrade file, then click “Upgrade” to start the system upgrade. After the progress bar reaches 100%, the upgrade is successful, and the device will reboot automatically. You can click “Export Version”...

  • Page 25: Rs-232/Tcp/Telnet Api Control Commands

    NEUVIDEO RS-232/TCP/Telnet API Control Commands This Matrix supports API command control. Connect the RS-232 port or the LAN port of the Matrix to a PC, then open a command tool on PC to send ASCII commands to control the Matrix. ASCII COMMAND Serial port protocol.
  • Page 26 NEUVIDEO RS-232/TCP/Telnet API Control Commands COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING r inport x info! (CONT’D) Get the information of the x input r inport 1 info! hdmi: 0 port, x=0~16(0=all) h_pixel: 0 v_pixel: 0 rate: 0 scan: 0 tmds: 0 mcu version: V1.00.01-1.08 /1.08/1.08/1.08...
  • Page 27 NEUVIDEO RS-232/TCP/Telnet API Control Commands COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING s save preset z! Save switch state between all s save preset 1! save to preset 1 output port and the input port to preset z, z=1~16 s recall preset z! Call saved preset z scenarios, s recall preset 1!
  • Page 28 NEUVIDEO RS-232/TCP/Telnet API Control Commands COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING r switch and mute! Get all output switch and mute r switch and input 7 -> output 7 (CONT’D) status mute! input 7 -> output 8 input 1 -> output 9 input 1 ->...
  • Page 29 NEUVIDEO RS-232/TCP/Telnet API Control Commands COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING r vw info! (CONT’D) Get video wall info r vw info! output: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 input: 1 1 1 1 7 7 7 7 1 1 1 1 1 1 1 1 screen is mosaiced: 0 0 0 0 2...
  • Page 30 NEUVIDEO RS-232/TCP/Telnet API Control Commands COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING s edid in x from z! s edid in 1 from 1! input 1 edid: 1080p,stereo 1080p,Stereo Audio 2.0 19. USER1 20. USER2 (CONT’D) audio 2.0 21. copy from hdmi output 1 22.
  • Page 31 NEUVIDEO RS-232/TCP/Telnet API Control Commands COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING s tcp/ip port x! Set network TCP/IP port s tcp/ip port 8000! Set tcp/ip port: 8000 8000 (x=1~65535) r tcp/ip port! Get network TCP/IP port r tcp/ip port! tcp/ip port: 8000 s telnet port x! Set network telnet port...

  • Page 32: Receiver Options

    NEUVIDEO RECEIVER OPTIONS RECEIVERS ANI-MODX-RX-70 - RECEIVER ANI-MODX-RX-100 - RECEIVER ANI-MODX-RX-150 - RECEIVER...

  • Page 33: Application Example

    NEUVIDEO Application Example Example Installation (example of a 16X16)
