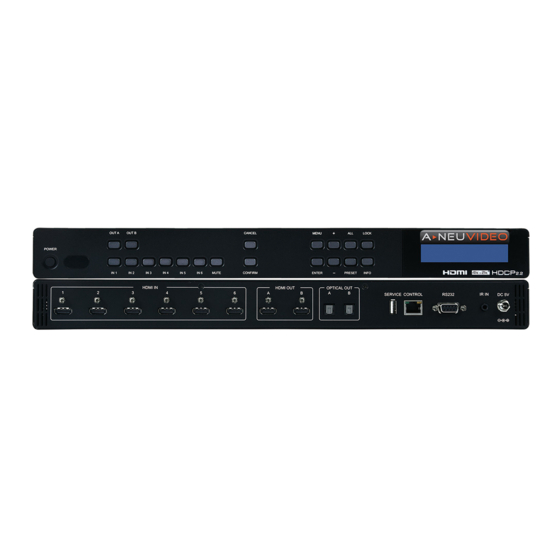

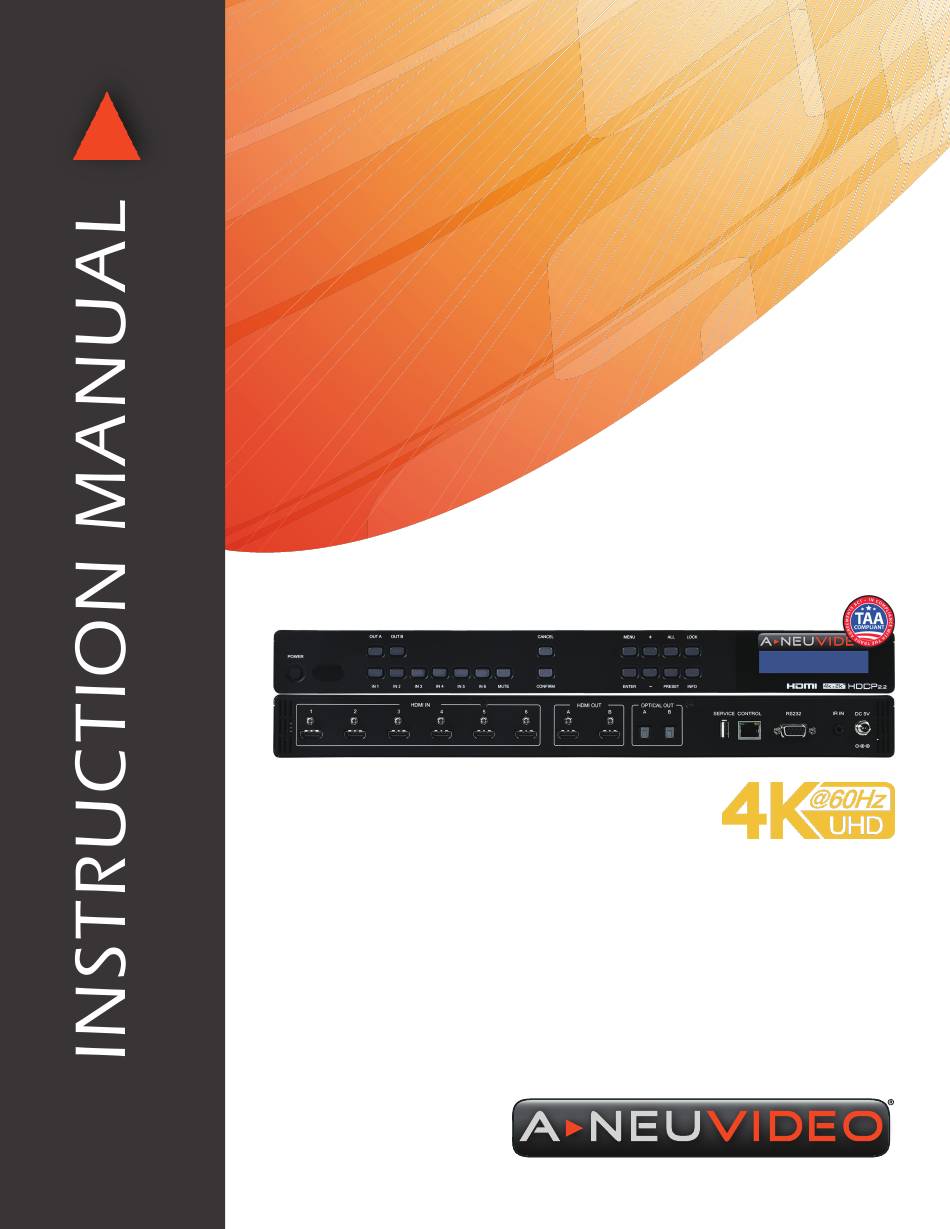

- Page 1 ANI-62HDRH 4K UHD+ HDR 6X2 HDMI MATRIX w/ AUDIO DE-EMBEDDING A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
We make no commitment to update or to keep current the information contained in this document. PACKAGE CONTENTS • ANI-62HDRH 4K UHD+ 6x2 HDMI Matrix We reserve the right to make improvements to this document and/ • Remote Control or product at any time and without notice. -
Page 4: Features & Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI input and output with 18Gbps (600MHz) 4K UHD support • DVI 1.0 compliant with the use of an HDMI-DVI adaptor • HDCP 1.4 and 2.2 compliant • Supports HD resolutions up to 3840x2160@60Hz (YUV 4:4:4, 8-bit) and 4096x2160@60Hz (YUV 4:4:4, 8-bit) •... -
Page 5: Operation Controls & Functions
NEUVIDEO OPERATION CONTROLS & FUNCTIONS FRONT PANEL POWER: Press this button to power the unit on (Green LED) or place it into stand-by mode (Red LED). NOTE: Ethernet, RS-232 and IR remain active while the unit is in stand-by mode. IR WINDOW: Accepts IR signals from the included IR remote for control of this unit only. - Page 6 NEUVIDEO OPERATION CONTROLS & FUNCTIONS Rear Panel HDMI IN 1~6: Connect to HDMI source equipment such as media players, game consoles or set-top boxes. DVI source equipment may be connected by using HDMI to DVI adapters. HDMI OUT A~B: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. DVI display equipment may be connected by using HDMI to DVI adapters.
-
Page 7: Remote Control
NEUVIDEO Remote Control & IR Cable Pin Assignment Remote Control POWER: Press this button to switch the unit between On and Stand-by mode. OUT A~B: Press the button (A or B) of the output(s) you wish to route a source to. Pressing an OUT button a second time will de-select that output. -
Page 8: Rs-232 Protocols
NEUVIDEO RS-232 Protocols RS-232 Protocol MATRIX REMOTE SYSTEM Assignment Assignment Baud Rate: 115200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 IR Cable Pin Assignments IR Signal Power Grounding... -
Page 9: Rs-232 & Telnet Commands
NEUVIDEO RS-232 & Telnet Commands RS-232 & Telnet Commands COMMAND DESCRIPTION OF PARAMETER HELP SHOW THE FULL COMMAND LIST. SHOW THE FULL COMMAND LIST. SHOW HELP DETAILS ABOUT COMMAND N1. ? N1 N1 = {ANY COMMAND NAME} TURN UNIT’S POWER OFF. (STAND-BY MODE) TURN UNIT’S POWER ON. - Page 10 NEUVIDEO RS-232 & Telnet Commands RS-232 & Telnet Commands COMMAND DESCRIPTION OF PARAMETER SET THE EDID MODE. AVAILABLE VALUES FOR N1: EDIDMODE N1 [APPOINT] [ALL] EDIDMODE SHOW THE CURRENT EDID MODE SETTING. SET THE EDID TO USE IN “ALL” MODE. AVAILABLE VALUES FOR N1: [OUTPUT A] [OUTPUT B]...
- Page 11 NEUVIDEO RS-232 & Telnet Commands RS-232 & Telnet Commands COMMAND DESCRIPTION OF PARAMETER SET THE ETHERNET GATEWAY. SGATEWAY N1 N1 = X.X.X.X [X = 0~255] HTTPPORT N1 SET THE HTTP PORT. N1 = 0~65535 TELNETPORT N1 SET THE TELNET PORT. N1 = 0~65535 SET THE CURRENT IP ADDRESS MODE.
-
Page 12: Telnet Control
NEUVIDEO TELNET CONTROL Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC/laptop are connected to the same active network. To Access Telnet Click START, type “cmd” in the search field and press ENTER. Windows 7 Windows 10 1. -
Page 13: Webgui Control
NEUVIDEO WebGUI Control Device Discovery Softw are Please obtain the “Device Discovery Software” from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery Software”. Click on “Find Devices on Network”... - Page 14 NEUVIDEO WebGUI Control WebGUI Overview All functions, including status, power, input selection, preset activation & management, EDID management, HDCP management, Ethernet settings, and reset/firmware functions are controllable via multiple tabs in the WebGUI interface allowing for intuitive operation. To view the contents of a tab, click on the appropriate button at the bottom of the window.
- Page 15 NEUVIDEO WebGUI Control • Matrix Control: This tab provides direct control over the unit’s power state, input/ output routing, and EDID management. A way to reboot the unit, or perform a factory reset is also provided. Any of the available inputs may be selected as a source for either of the two outputs by selecting the preferred input from the dropdown next to the “Output A”...
- Page 16 NEUVIDEO WebGUI Control • Settings: This tab allows for control over each inputs HDCP mode as well as configuration of all (6) routing presets. The HDCP mode for each input may be switched between the “Standard” and “Apple” modes. “Apple” mode allows for the display of non-HDCP required content from Apple, and similar, devices on non-HDCP displays.
-
Page 17: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM CONNECTION DIAGRAM... -
Page 18: Supported Resolutions
NEUVIDEO Video Specifications Supported Resolutions (Hz) RESOLUTION INPUT OUTPUT 640x480@60/72/75/85 800x600@60/72/75/85 1024x768@60/70/75 1366x768@60 1280x1024@60 1600x1200@60 1920x1200@60 480i/576i 480p/576p 720p@50/60 1080i@50/60 1080p@24/50/60 3840x2160p@24/25/30 4096x2160p@24/50/60... - Page 19 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 20 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
