A-Neuvideo ANI-MODX Series Instruction Manual

Modular seamless matrix switcher
Hide thumbs Also See for ANI-MODX Series:
Table of Contents

Advertisement

Quick Links

Download this manual
A-NeuVideo.com
Frisco, Texas 75036
ANI-MODX

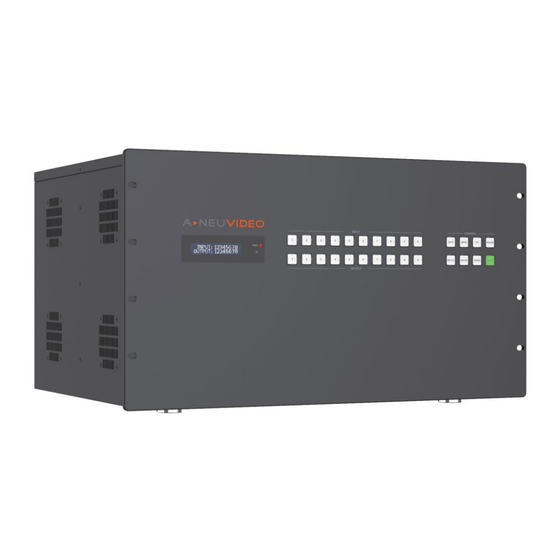

ANI-MODX Series: Modular Seamless Matrix Switcher
8x8
16x16
36x36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANI-MODX Series and is the answer not in the manual?

Questions and answers

Related Manuals for A-Neuvideo ANI-MODX Series

Summary of Contents for A-Neuvideo ANI-MODX Series

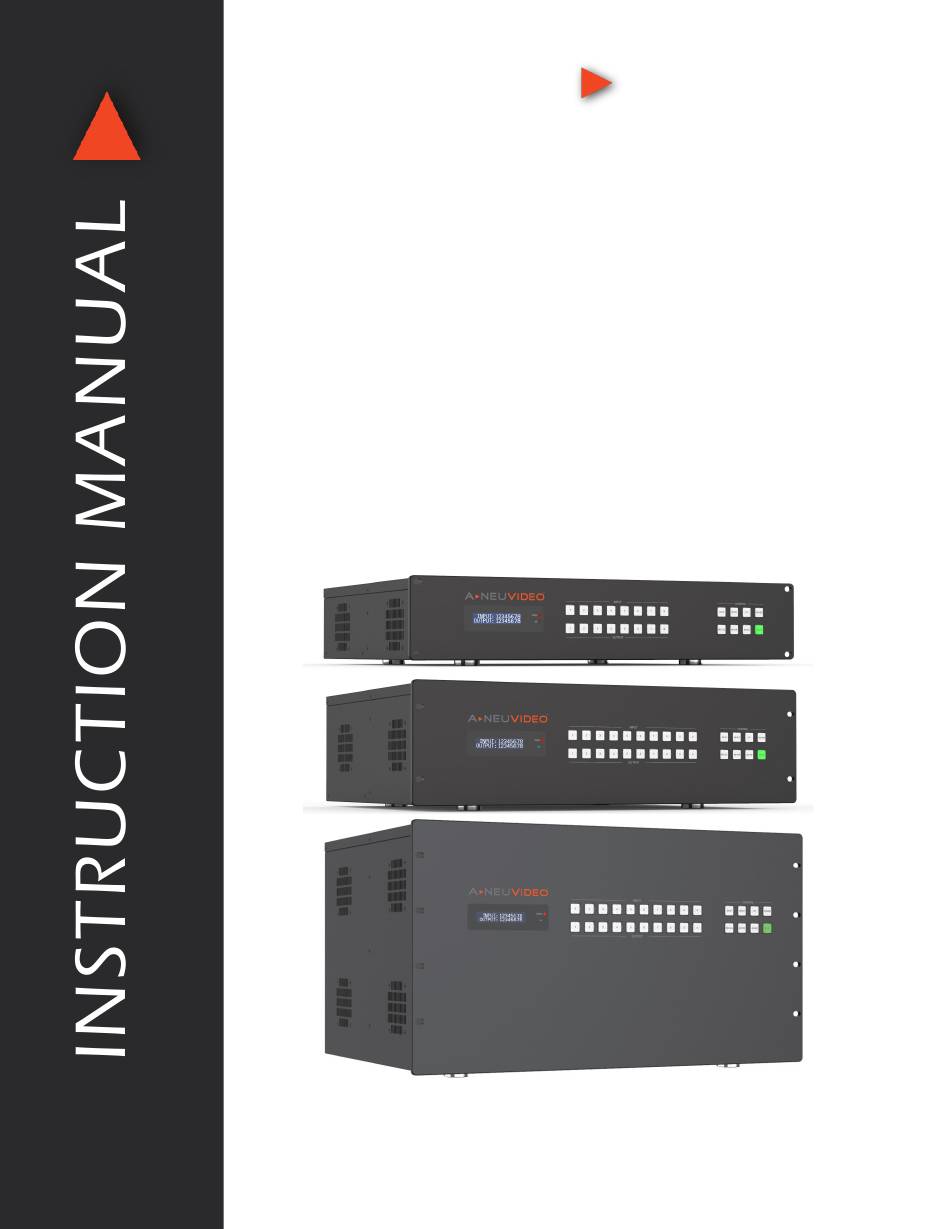

  • Page 1 ANI-MODX ANI-MODX Series: Modular Seamless Matrix Switcher 16x16 36x36 A-NeuVideo.com Frisco, Texas 75036...

  • Page 2: Safety Information

    SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Keep unit protected from rain, water and excessive moisture.

  • Page 3: Table Of Contents

    NEUVIDEO TABLE OF CONTENTS CONTENTS PACKAGE CONTENTS ...............1 SAFETY PRECAUTIONS INTRODUCTION ................2 Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. FEATURES ...................2 Please keep the following in mind as you unpack and install this SPECIFICATIONS ................3 equipment: SPECIFICATIONS - CARDS............4...

  • Page 4: Introduction

    NEUVIDEO INTRODUCTION & FEATURES INTRODUCTION This Modular Seamless Switching Matrix is a professional all-in-one machine that supports various audio and video signal switching and distribution, integrated video wall function and control system. It supports up to 8~36 signal inputs and 8~36 signal outputs. Audio and video matrix adopts pure hardware high-speed matrix switching chip, which has high integration, stable system, no compression/loss/ delay of signal.

  • Page 5: Specifications

    NEUVIDEO Specifications Matrix TECHNICAL HDMI Compliance HDMI 1.4 (2K series card), HDMI 2.0b (4K series card) HDCP Compliance HDCP 1.4 (2K series card), HDCP2.2 (4K series card) Video Bandwidth 600MHz/18Gbps Video Resolution 1920x1200p60Hz (2K series card) 3840x2160p60Hz 4:4:4 (4K series card) Color Depth 2K series card: 8/10/12-bit (1080P60Hz) 4K series card: 8/10/12-bit (4K30Hz);...

  • Page 6: Specifications - Cards

    NEUVIDEO Specifications - CardS Specifications - CARDS MAIN CONTROL CARD NAME FUNCTION DESCRIPTION RS-232 PORT RS-232 serial signal input port, connected to the PC or the third party control processor to transmit RS-232 command and control the Matrix. RS-232 OUT PORT RS-232 serial signal output port.

  • Page 7: Hdmi Input Card

    NEUVIDEO Specifications - 2K INPUT Cards 2K Input Cards 2K HDMI INPUT CARD SPECIFICATIONS Signal Channel 4-channel HDMI input signals Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz, 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30),...
  • Page 8 NEUVIDEO Specifications - 2K INPUT Cards 2K HDBT 100M INPUT CARD SPECIFICATIONS Signal Channel 4-channel HDBT input signals Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz, 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p59.94Hz (1080p59), 1920x1080p60Hz (1080p60), 1920x1200p60Hz...

  • Page 9: Vga Input Card

    NEUVIDEO Specifications - 2K INPUT Cards 2K VGA INPUT CARD SPECIFICATIONS Signal Channel 4-channel VGA input signals Signal Format RGB (Analog) Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x720p 60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz Color Depth 8-bit (1080p60Hz) Impedance 75Ω...

  • Page 10: Sdi Input Card

    NEUVIDEO Specifications - 2K INPUT Cards 2K SDI INPUT CARD SPECIFICATIONS Signal Channel 4-channel SDI input signals Signal Format HD-SDI (SMPTE 292M) / 3G-SDI (SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C) Resolution 720x480i59.94Hz (480i59), 720x576i50Hz (576i50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p59.94Hz (1080p59),...
  • Page 11 NEUVIDEO Specifications - 2K OUTPUT Cards 2K Output Cards 2K HDMI OUTPUT CARD / 2K HDMI-V OUTPUT CARD SPECIFICATIONS Signal Channel 4-channel HDMI output signals Resolution 1024x768p60, 1280x720p50, 1280x720p60, 1280x800p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1600x1200p60, 1920x1080p24, 1920x1080p25, 1920x1080p30, 1920x1080p50, 1920x1080p60, 1920x1200p60 (The user can select the resolution through the control software.) HDMI Compliance HDMI 1.4...
  • Page 12 NEUVIDEO Specifications - 2K OUTPUT Cards 2K HDBT 100M OUTPUT CARD SPECIFICATIONS Signal Channel 4-channel HDBT output signals Resolution 1024x768p60, 1280x720p50, 1280x720p60, 1280x800p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1600x1200p60, 1920x1080p24, 1920x1080p25, 1920x1080p30, 1920x1080p50, 1920x1080p60, 1920x1200p60 (The user can select the resolution through the control software.) HDCP Compliance HDCP 1.4 Video Bandwidth...
  • Page 13 NEUVIDEO Specifications - 2K OUTPUT Cards 2K VGA OUTPUT CARD SPECIFICATIONS Signal Channel 4-channel VGA output signals Signal Format RGB (Analog) Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x720p 60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz Color Depth 8-bit (1080p60Hz) Impedance 75Ω...

  • Page 14: Sdi Output Card

    NEUVIDEO Specifications - 2K OUTPUT Cards 2K SDI OUTPUT CARD SPECIFICATIONS Signal Channel 4-channel SDI output signals Signal Format HD-SDI (SMPTE 292M) / 3G-SDI (SMPTE 424M/425M-AB) Resolution 720x480i60, 720x576i50, 1280x720p25, 1280x720p30, 1280x720p50, 1280x720p60, 1920x1080i50, 1920x1080i60, 1920x1080p24, 1920x1080p25, 1920x1080p30, 1920x1080p50, 1920x1080p60 Color Depth 8/10/12-bit (1080p60Hz) Impedance...
  • Page 15 NEUVIDEO Specifications - 4K Input Cards 4K Input Cards 4K HDMI INPUT CARD SPECIFICATIONS Signal Channel 4-channel HDMI input signals Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360 x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz, 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920 x1080i59.94Hz (1080i59), 1920x1080i60Hz (1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30),...
  • Page 16 NEUVIDEO Specifications - 4K Input Cards 4K HDBT 100M INPUT CARD SPECIFICATIONS Signal Channel 4-channel HDBT input signals Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz, 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz (1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p59.94Hz (1080p59), 1920x1080p60Hz (1080p60),...
  • Page 17 NEUVIDEO Specifications - 4K INPUT Cards 4K FIBER INPUT CARD SPECIFICATIONS Signal Channel 4-channel FIBER input signals Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz (576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz (1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz (2160p24), 3840x2160p25Hz (2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz (2160p30), 3840x2160p50Hz (2160p50),...

  • Page 18: Hdmi Output Card

    NEUVIDEO Specifications - 4K OUTPUT Cards 4K Output Cards 4K HDMI OUTPUT CARD SPECIFICATIONS Signal Channel 4-channel HDMI output signals Resolution 720x576i50, 720x480i60, 1024x768p60, 1280x720p50,1280x720p60, 1280x800p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1600x1200p60, 1920x1080i50, 1920x1080i60, 1920x1080p24, 1920x1080p25, 1920x1080p30, 1920x1080p50, 1920x1080p60, 1920x1200p60, 2560x1440p60, 3840x2160p24, 3840x2160p25, 3840x2160p30, 3840x2160p50, 3840x2160p60, 4096x2160p24, 4096x2160p25, 4096x2160p30, 4096x2160p50, 4096x2160p60 HDMI Compliance HDMI 2.0b...
  • Page 19 NEUVIDEO Specifications - 4K OUTPUT Cards 4K HDBT 100M OUTPUT CARD SPECIFICATIONS Signal Channel 4-channel HDBT output signals Resolution 720x576i50, 720x480i60, 1024x768p60, 1280x720p50,1280x720p60, 1280x800p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1600x1200p60, 1920x1080i50, 1920x1080i60, 1920x1080p24, 1920x1080p25, 1920x1080p30, 1920x1080p50, 1920x1080p60, 1920x1200p60, 2560x1440p60, 3840x2160p24, 3840x2160p25, 3840x2160p30, 3840x2160p50, 3840x2160p60, 4096x2160p24, 4096x2160p25, 4096x2160p30, 4096x2160p50, 4096x2160p60 HDCP Compliance HDCP 2.2...
  • Page 20 NEUVIDEO Specifications - 4K OUTPUT Cards 4K FIBER OUTPUT CARD SPECIFICATIONS Signal Channel 4-channel FIBER output signals Resolution 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz (576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz (2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50),...

  • Page 21: Specifications - Signal Adapters

    NEUVIDEO Specifications - Signal Adapters The DVI card is equipped with (3) DVI signal adapters that can convert DVI signals to HDMI, VGA or YPbPr/CVBS signals. Users can use the corresponding signal adapter as required. DVI MALE TO HDMI FEMALE ADAPTER DVI-I Connector Function Function...
  • Page 22 NEUVIDEO Specifications - Signal Adapters ANI-MODX-DVI-3BNC-F ANI-MODX-DVI-3RCA-F ANI-MODX-VGA-5BNC-F...

  • Page 23: Operation Controls & Functions

    NEUVIDEO Operation Controls & Functions Front Panel (example: 16x16 Matrix) LED SCREEN : Display the current status information (Matrix switching channel, EDID information, baud rate and so on). PWR LED: The power LED lights in green when the system is powered on, and red when the system is in standby. INPUT &...
  • Page 24 NEUVIDEO Operation Controls & Functions Rear Panel (example: 16x16 Matrix) INPUT CARDS : Video input card, connected to source devices directly or via an Extender OUTPUT CARDS: Video output card, connected to display devices directly or via an Extender. MAIN CONTROL CARD: Main control card, equipped with various control ports.

  • Page 25: Ir Remote

    NEUVIDEO IR Remote Remote Control POWER BUTTON: Power on the Matrix or set it to standby mode. INPUT 1/2/3/4/5/6/7/8/9/0: Used to select the input channel. OUTPUT 1/2/3/4/5/6/7/8/9/0: Used to select the output channel. The IR Remote has the following (3) operation methods (take the 36x36 Matrix as an example): Method 1: First press the INPUT button, then press the output button to switch the input...

  • Page 26: Host Computer Control Operation Guide

    NEUVIDEO Host Computer Control Operation Guide Login & Connection Login: Double-click the Host Computer to enter the Login interface, as shown in the figure. Input the username (admin) and the initial password (admin), then select the required language, finally click “Confirm” to enter the communication setting page. Note: You can reset the password on the system setting page.
  • Page 27 NEUVIDEO Host Computer Control Operation Guide Method 2. Serial connection Step 1. Connect the RS-232 port of the Matrix to a PC with the included RS-232 serial cable and USB to RS-232 serial cable, as shown in the figure. Step 2. Check “COM”...

  • Page 28: Host Computer Main Interface

    NEUVIDEO Host Computer Main Interface Matrix Switching Page (Take the 36x36 Matrix as an example) There are (2) UI styles of the Host Computer software. You can click the “Switch UI” button to switch between UI 1 and UI 2. Matrix Switching UI 2 Matrix Switching UI 1...
  • Page 29 NEUVIDEO Host Computer Main Interface Refresh Data & Reconnection: As shown in the figure above, icon is used to refresh the data of the current page; icon is used to return to the connection interface and reselect the connection method; icon is used to power on the Matrix or set it to standby mode.
  • Page 30 NEUVIDEO Host Computer Main Interface Switch matrix correspondence: As shown in the figure, click an input channel, and then click an output channel or click “All” (the selected output channel will turn to yellow), finally click “Switch” to take effect. After switching is completed, the output channel will turn to green.
  • Page 31 NEUVIDEO Host Computer Main Interface Recall Preset: Click the “Recall Preset” button, and the following window will pop up. Select a preset ID, then click “Perform” to recall the preset. Import Config: Click the “Import Config” button, select the configuration file, it will prompt as shown in the lower left figure.
  • Page 32 NEUVIDEO Host Computer Main Interface The output card supports the configuration of output resolution and mirroring. Notes: (1) The 2K HDMI-V output card, 2K SDI output card and 2K FIBER output card do not support mirroring. (2) When the output resolution is set to CVBS/YPbPr, the 2K DVIU output card do not support mirroring.
  • Page 33 NEUVIDEO Host Computer Main Interface Step 6. After releasing the mouse, the selected screens will turn blue. Then click the right mouse button and select “Screen Splicing” from the settings menu to complete the splicing. Note: The 2K DVIU output card (when the output resolution is set to CVBS/YPbPr), 2K SDI output card and 2K FIBER output card do not support splicing settings.

  • Page 34: System Upgrade Page

    NEUVIDEO Host Computer Main Interface Video W all Setting Page Modify Network Setting: If the IP Mode is set to “Static”, you can modify the IP Address, Subnet Mask, Gateway, TCP Port, Telnet Port and Baudrate as required, and click “Save”...
  • Page 35 NEUVIDEO Host Computer Main Interface Screen Setting Page The system setting with the main control card (optional 2) supports serial port pass-through function, as shown in the figure. Click “Screen Setting” to enter the Screen Setting page, as shown in the figure. You can add the command (ASCII/HEX) for the manufacture and select the baud rate, then click “Send”...
  • Page 36 NEUVIDEO Host Computer Main Interface Add Manufacturer Other Commands: Input the name in the input box of “Add Command”, input the command data in the input box of “Command Data”, then click “Add Command” button to complete adding, as shown in the figure. Send Manufacturer Power On/Off Command: There are (2) methods to send manufacturer power on/off command.

  • Page 37: Web Gui Operation Guide

    NEUVIDEO Web GUI Operation Guide Connection & Login The matrix can be controlled by Web GUI, allowing users to operate the matrix online. Follow the steps below to connect and log in. Step 1. Get the current IP Address. The default IP address is 192.168.0.100 (when the system is not connected to a router). You can get the current matrix IP address in the following (2) methods.
  • Page 38 NEUVIDEO Web GUI Interface Instruction Matrix Switching Page (Take the 36x36 Matrix as an example) There are (2) UI styles of the Web GUI. You can click the “Switch UI” button to switch between UI 1 and UI 2. Matrix Switching UI 2 Matrix Switching UI 1...
  • Page 39 NEUVIDEO Web GUI Interface Instruction Refresh Data & Reconnection: As shown in the figure above, icon is used to refresh the data of the current page; icon is used to power on the Matrix or set it to standby mode; icon is used to logout and return to the login interface, then log in again.
  • Page 40 NEUVIDEO Web GUI Interface Instruction Turn off the output: As shown in the above figures, double-click an output port, then click “All Mute” to turn off the audio and video output of the selected output port; double- click “All”, then click “All Mute” to turn off the outputs of all output channels.
  • Page 41 NEUVIDEO Web GUI Interface Instruction Signal Setting Page This page is mainly used to view and configure the relevant parameters of the I/O card. The input card supports the configuration of audio source (bypass or embedding) and EDID. Notes: (1) The 2K VGA input card does not support audio source switching, and is fixed to Audio Embedding. (2) Both 2K SDI and 2K VGA input cards do not support EDID settings.
  • Page 42 NEUVIDEO Web GUI Interface Instruction Video W all Setting Page Follow the steps below to create Video Wall Creation: a video wall. Step 1. Input the video wall name (The maximum length is 32 English characters or 16 Chinese characters). Step 2.

  • Page 43: System Setting Page

    NEUVIDEO Web GUI Interface Instruction Screen Setting: You can click any screen to view the screen’s configuration information, or configure the corresponding input, output and other parameters, as shown in the figure. Note: When the screen is in splicing state, the corresponding output port can not be configured.
  • Page 44 NEUVIDEO Web GUI Interface Instruction System Upgrade Page Click “Select File” to select the upgrade file, then click “Upgrade” to start the system upgrade. After the progress bar reaches 100%, the upgrade is successful, and the device will reboot automatically. You can click “Export Version” to export the current upgrade version information.
  • Page 45 NEUVIDEO Web GUI Interface Instruction Add Manufacturer Power On/Off Command: Follow the steps below to add manufacturer power on/off command. Step 1. Select the manufacturer from the manufacturer list on the left. Step 2. Input the power on command. Step 3. Click the corresponding “Setting”...
  • Page 46 NEUVIDEO Web GUI Interface Instruction Send Manufacturer Other Commands: Select the manufacturer from the manufacturer list on the left, and click the command in the command list, then click “Send Command” button to send the command, or directly doubleclick the command in the command list to complete send, as shown in the figure.

  • Page 47: Api Controls

    NEUVIDEO API Controls API Control (Take the 16x16 Matrix as an example) ASCII COMMAND Serial port protocol. Baud rate: 115200 (default) Data bits: 8bit Stop bits: 1 Check bit: 0 TCP/IP protocol port: 8000 Telnet port:23 x,y,z, XXX are parameters. Error Code describe: E00 ->...
  • Page 48 NEUVIDEO API Controls COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING r inport x info! (CONT’D) Get the information of the x r inport 1 info! audio mode: 0 input port, x=0~16 hdcp: 0 (0=all input ports) input timing: hdmi: 0 h_pixel: 0 v_pixel: 0 rate: 0...
  • Page 49 NEUVIDEO API Controls COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING s lock z! Lock/Unlock front panel button, s lock 1! panel button lock on / panel button lock off z=0~1(z=0 lock off, z=1 lock on) panel button lock off r lock! Get panel button lock state r lock!
  • Page 50 NEUVIDEO API Controls COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING r av out y! Get output y signal status r av out 0! input 1 -> output 1 y=0~16 (0=all output) input 2 -> output 2 …… input 16 -> output 16 r switch and mute! Get all output switch and mute r switch and...
  • Page 51 NEUVIDEO API Controls COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING s output x resolution y! s output 13 set output 13 resolution: 1920x1080@60 3-1680x1050p@60, 4-1360x768p@60, (CONT’D) resolution 8! 1920x1080p@30 5-1280x1024p@60, 6-1280x720p@60, 7-1024x768p@60, 8-1920x1080p@30, 9-720x576_cvbs_ntsc, 10-720x480_cvbs_pal, 11-1920x1080_YPbPr, 12-1280x7200_YPbPr, 13-1920x1080p@50, 14-1920x1080p@25, 15-1920x1080p@24, 16-1280x800p@60, 17-1280x720p@50;...
  • Page 52 NEUVIDEO API Controls COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING r output x resolution! r output 1 output 1 resolution: Get output x output format x: 0~16 (0=all output) resolution! 1920x1200p@60 r vw info! Get video wall information r vw info! get video wall info: name: 111 col: 4...

  • Page 53: Network Setting

    NEUVIDEO API Controls COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING s edid in x from y! 5, 1080i,Dolby/DTS 5.1 s edid in 1 from 1! input 1 edid: 1080p, stereo 1080p, Stereo Audio 2.0 (CONT’D) 6, 1080i,HD Audio 7.1 audio 2.0 7, 4K2K30_444,Stereo Audio 2.0 8, 4K2K30_444,Dolby/DTS 5.1...
  • Page 54 NEUVIDEO API Controls COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT SETTING s ip mode z! Set network IP mode to static IP s ip mode 1! set ip mode: dhcp (please dhcp or DHCP, use “s net reboot!” command z=0~1 (z=0 Static, z=1 DHCP) to apply new config!) r ip mode! Get network IP mode...

  • Page 55: Application Example

    NEUVIDEO Application Example Example Installation (example of a 16X16)

  • Page 56: End Of Document

    BY, THROUGH OR UNDER A-NEUVIDEO, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-Neuvideo, Inc. at the return address set forth on the Product’s packing label at your expense.
