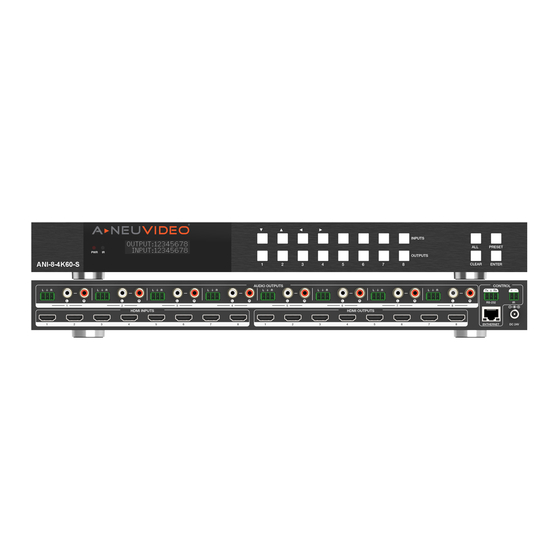

A-Neuvideo ANI-8-4K60-S Instruction Manual
  1. Manuals
  2. Brands
  3. A-Neuvideo Manuals
  4. Matrix Switcher
  5. ANI-8-4K60-S
  6. Instruction manual

A-Neuvideo ANI-8-4K60-S Instruction Manual

8x8 hdmi 18gbps matrix w/ audio matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ANI-8-4K60-S
8x8 HDMI 18Gbps Matrix w/ Audio Matrix
A-NeuVideo.com
Frisco, Texas 75036
AUDIO / VIDEO MANUFACTURER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANI-8-4K60-S and is the answer not in the manual?

Questions and answers

Related Manuals for A-Neuvideo ANI-8-4K60-S

Summary of Contents for A-Neuvideo ANI-8-4K60-S

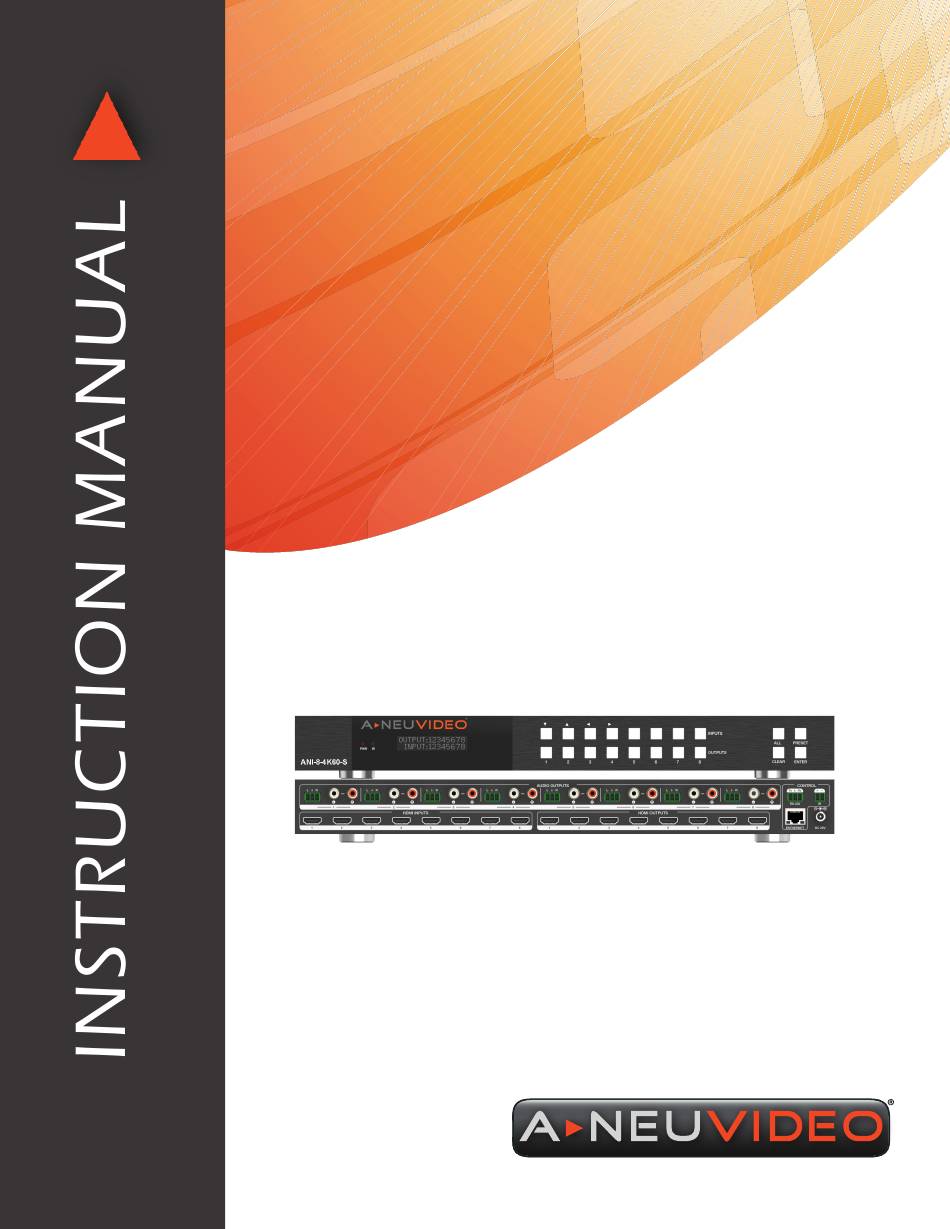

  • Page 1 ANI-8-4K60-S 8x8 HDMI 18Gbps Matrix w/ Audio Matrix A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    IR remote, RS-232, LAN and to keep current the information contained in this document. Web GUI. In addition to supporting 8x8 HDMI, the ANI-8-4K60-S supports Independent 8x8 audio matrix routing, in which you can We reserve the right to make improvements to this document and/ route the incoming audio from any HDMI source to Analog Audio or product at any time and without notice.

  • Page 4: Features

    NEUVIDEO FEATURES FEATURES • HDMI 2.0b HDCP 2.3/2.2/HDCP 1.x, 18Gbps uncompressed signal bandwidth • (8) HDMI inputs, (8) HDMI outputs • (8) RCA analog audio output • (8) 3-pin Phoenix analog audio output • Independent video downscaling 4K-> 1080P/Bypass/HDBT mode (4K60 420) •...

  • Page 5: Specifications

    NEUVIDEO SPECIFICATIONS SPECIFICATIONS • HDMI Compliance: HDMI 2.0b • HDCP Compliance: HDCP 2.2 and HDCP 1.4 • Video Bandwidth: 18Gbps • Video Resolution: 4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080p@120Hz and 1080p 3D@60Hz • Color Space: RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0 • Color Depth: 8-bit, 10-bit, 12-bit •...

  • Page 6: Operation Controls And Functions

    NEUVIDEO Operation Controls & Functions FRONT PANEL POWER LED: The LED will light in blue when the product is connected to power supply, and amber when the product is on standby. IR WINDOW: IR receiver window, it only receives the IR remote signal from this product. OLED SCREEN: Display matrix switching status, input / output port, EDID, Baud rate, IP Address, etc.

  • Page 7: Remote Control

    NEUVIDEO Remote Control Remote Control POWER ON OR STANDBY: Power on the Matrix or set it to standby mode. INPUT 1/2/3/4/5/6/7/8: Press these buttons to select the signal source input channel. Press these buttons to circularly switch the last or next signal source input Ó...

  • Page 8: Edid Management

    NEUVIDEO EDID Management EDID Management This Matrix has (7) factory defined EDID settings, (2) user-defined EDID modes and (8) copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 control or Web GUI. ON-PANEL BUTTON OPERATION: On the initial OLED display screen, press “MENU”...

  • Page 9: Web Gui User Guide

    NEUVIDEO Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: STEP 1: Get the current IP Address. The default IP address is 192.168.1.100. You can get the current Matrix IP address in two ways: THE FIRST WAY: You can get the IP address via panel buttons.
  • Page 10 NEUVIDEO Web GUI User Guide VIDEO Page You can do the following operations on the VIDEO page: OUTPUT: The current device’s OUTPUT port. You can select signal source for it. INPUT: You can click the drop-down menu to select signal source for the corresponding OUTPUT port. NAME: You can name the current scene with maximum length of 12 characters (Chinese name is unsupported).
  • Page 11 NEUVIDEO Web GUI User Guide INput Page You can do the following operations on the INPUT page: INPUTS: Input channel of the device. NAME: The input channel’s name. You can modify it by entering the corresponding name (max length: 12 characters) in the input box (Chinese name is unsupported).
  • Page 12 NEUVIDEO Web GUI User Guide Output Page You can do the following operations on the Output page: OUTPUTS: Output channel of the device. NAME: The current output channel’s name. You can modify it by entering the corresponding name (max length: 12 characters) in the input box.
  • Page 13 NEUVIDEO Web GUI User Guide Click “OK” to search the IP Address again, as shown in the following figure: After searching is completed, it will switch to the login page, the default network setting is completed. System Page...
  • Page 14 NEUVIDEO Web GUI User Guide FIRMWARE UPDATE Click the “Browse” button to select the update file for Main Board or Web Interface, then click “Update”. MODIFY WEB LOGIN SETTING Click the “User” button, enter the correct Old Password, New Password, and Confirm Password, then click “Save”. After successful modification, there will be a prompt, as shown in the following figure: NOTE: Input rules for changing passwords: 1.

  • Page 15: Rs-232 Control Command

    NEUVIDEO RS-232 Control CommandS RS-232 Control Command The Matrix also supports RS-232 command control. Connect the RS-232 port of the Matrix to a PC with the included RS-232 serial cable (DP9 female head to 3pin Phoenix Connector), as shown in the figure below. Then, open a Serial Command tool on PC to send RS-232 command to control the Matrix.
  • Page 16 NEUVIDEO ASCII CommandS COMMAND FUNCTION FEEDBACK STRING VARIABLES EXAMPLE STRING Output Signal Status < OUT Y: SGN B Y: OUTPUT NUMBER (A ~ H) (CHANGE IN THE SIGNAL B: BOOLEAN STATUS (F/T) STATUS OF OUTPUT A) < OUT A: CON T Network Connection Status <...
  • Page 17 NEUVIDEO ASCII CommandS COMMAND FUNCTION FEEDBACK STRING VARIABLES EXAMPLE STRING Get Status (Complete) < SCA A: M MM: DM = DYNAMIC < SCA B: M MODE SM = STATIC MODE < SCA C: M < SCA D: M < SCA E: M <...
  • Page 18 NEUVIDEO ASCII CommandS COMMAND FUNCTION FEEDBACK STRING VARIABLES EXAMPLE STRING Perform the indicated audio > SWA O: I > SWA O: I O - OUTPUT IDENTIFIER (CHANGE IN THE SIGNAL switching operation A-H = TARGET OUTPUT # = STATUS OF OUTPUT A) ALL OUTPUTS <...
  • Page 19 NEUVIDEO ASCII CommandS COMMAND FUNCTION FEEDBACK STRING VARIABLES EXAMPLE STRING Set the HDCP compliance > DCP O: P > DCP O: P O - OUTPUT IDENTIFIER > SWT A: 0 mode for each HDMI Output A-H = TARGET OUTPUT P - <...
  • Page 20 NEUVIDEO ASCII CommandS COMMAND FUNCTION FEEDBACK STRING VARIABLES EXAMPLE STRING Set Display the active HDMI > CEC O: ACTIVE > CEC O: ACTIVE O - OUTPUT IDENTIFIER > CEC A: ACTIVE Input < CEC A: ACTIVE Set Source On/Off > CEC I: PWR B >...

  • Page 21: Application Example

    THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 22 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 23 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 24 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
