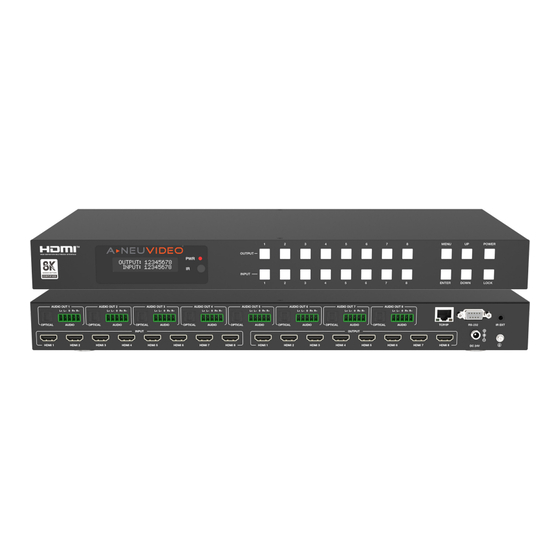

ANI-8-8K60-S
8x8 8K HDMI 48Gbps Matrix w/ Audio Matrix
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in
the shipping carton:
• ANI-8-8K60-S 48Gbps 8x8 HDMI Matrix
• DC 24V/3.75A Locking Power Adapter
• IR Remote
• IR Wideband Receiver Cable (12V, 1.5M)
• AC Power Cord (1.5M)
• RS-232 Serial Cable (1.5M, male to female head)
• (8) 5pin-3.81mm Phoenix Connector
• (8) Machine Screw (KM3x6)
• (2) Mounting Ear
A-NeuVideo.com
Frisco, Texas 75036

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANI-8-8K60-S and is the answer not in the manual?

Questions and answers

Related Manuals for A-Neuvideo ANI-8-8K60-S

Summary of Contents for A-Neuvideo ANI-8-8K60-S

  • Page 1 PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • ANI-8-8K60-S 48Gbps 8x8 HDMI Matrix • DC 24V/3.75A Locking Power Adapter • IR Remote • IR Wideband Receiver Cable (12V, 1.5M) •...
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    INTRODUCTION is believed to be accurate. We assume no responsibility for any The ANI-8-8K60-S 48Gbps 8K 8x8 HDMI Matrix supports the infringements of patents or other rights of third parties which may transmission of high resolution video (up to 4K2K@120Hz 4:4:4 result from its use.

  • Page 4: Features

    NEUVIDEO FEATURES FEATURES • HDMI 2.1 and HDCP 2.3 compliant • (8) HDMI inputs can be independently routed to (8) HDMI outputs • Video resolution is up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4 • Supports 48Gbps video bandwidth •...

  • Page 5: Specifications

    NEUVIDEO SPECIFICATIONS SPECIFICATIONS • HDMI Compliance: HDMI 2.1 • HDCP Compliance: HDCP 2.3 • Video Bandwidth: 48Gbps • Video Resolution: Up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4 • Color Space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 • Color Depth: 8/10/12bit •...

  • Page 6: Operation Controls & Functions

    NEUVIDEO Operation Controls & Functions FRONT PANEL LCD SCREEN: Display matrix switching status, input / output port, EDID, Baud rate, IP Address, etc. PWR INDICATOR: The green LED is on when the device is working. The red LED is on when the device is on standby. IR signal receiver.
  • Page 7 NEUVIDEO Operation Controls & Functions REAR PANEL AUDIO OUT (1~8): OPTICAL: Optical audio output port, connected to an audio output device such as audio amplifier. L/R AUDIO: Analog audio output port, supporting balanced/unbalanced audio output, with a maximum support of 2Vrms. BALANCED CONNECTION METHOD: L+, L -, , R+, R-...

  • Page 8: Remote Control

    NEUVIDEO Remote Control Remote Control POWER ON OR STANDBY: Power on the Matrix or set it to standby mode. INPUT 1/2/3/4/5/6/7/8: Press to select input source. Press to select the last or next input source. Ó Ô OUTPUT 1/2/3/4/5/6/7/8: Press to select output channel. ALL: Select all output channel simultaneously.

  • Page 9: Remote Hex Codes / Ir Cable Pin Assignment

    NEUVIDEO remote hex codes / IR Cable Pin Assignment remote hex codes Button Function House Code Button Code Power Toggle 08F7 Input 1 08F7 Input 2 08F7 Input 3 08F7 Input 4 08F7 Input 5 08F7 Input 6 08F7 Input 7 08F7 Input 8 08F7...

  • Page 10: Lcd Display Navigation

    NEUVIDEO LCD Displa y Na vigation LCD Displa y Na vigation The buttons on the the front panel are used for LCD display navigation, including INPUT(1~8), OUTPUT(1~8), MENU, ENTER, UP, DOWN. Menu contents are as follows: LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 BYPASS...
  • Page 11 NEUVIDEO LCD Displa y Na vigation LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 ENABLE OUT1/OUT2/OUT3/OUT4/ OUT5/OUT6/OUT7/OUT8 DISABLE BIND to INPUT MODE BIND to OUTPUT AUDIO MATRIX INPUT1 INPUT2 INPUT3 INPUT4 INPUT5 EXTAUDIO INPUT6 INPUT7 INPUT8 OUT1/OUT2/OUT3/OUT4/ MATRIX OUT5/OUT6/OUT7/OUT8 OUTPUT1 ARC OUTPUT2 ARC OUTPUT3 ARC OUTPUT4 ARC...

  • Page 12: Edid Management

    NEUVIDEO EDID Management EDID Management This Matrix has (36) factory defined EDID settings, (3) user-defined EDID modes and (8) copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 control or Web GUI. On-panel button operation: On the initial LCD display screen, press “MENU”...
  • Page 13 NEUVIDEO EDID Management The defined EDID setting list of the product is shown as below: EDID MODE EDID DESCRIPTION EDID MODE EDID DESCRIPTION 1080P, 2.0CH 4K120(420)_HDR, 2.0CH 1080P, 5.1CH 4K120(420)_HDR, 5.1CH 1080P, 7.1CH 4K120(420)_HDR, 7.1CH 4K30, 2.0CH 4K120(444)_HDR, 2.0CH 4K30, 5.1CH 4K120(444)_HDR, 5.1CH 4K30, 7.1CH 4K120(444)_HDR, 7.1CH...

  • Page 14: Web Gui User Guide

    NEUVIDEO Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: STEP 1: Get the current IP Address. The default IP address is 192.168.1.100. You can get the current Matrix IP address in two ways: THE FIRST WAY: You can get the IP address via panel buttons.
  • Page 15 NEUVIDEO Web GUI User Guide Matrix Page You can do the following operations on the Matrix page: SWITCH: Select the input signal source to output. The display name of each Input and Output can be modified in Input page and Output page.
  • Page 16 NEUVIDEO Web GUI User Guide INput Page You can do the following operations on the INPUT page: INPUTS: Input channel of the device. ACTIVE: It indicates whether the channel is connected to a signal source. It is green if the input signal is detected, and gray if no signal.
  • Page 17 NEUVIDEO Web GUI User Guide DOWNLOAD EDID TO YOUR COMPUTER: If you want to download the existing EDID, click the drop-down box of “Select EDID File” to select the input channel you want, and then click “Download” to save the corresponding EDID file to your computer. Output Page You can do the following operations on the OUTPUT page: OUTPUTS:...
  • Page 18 NEUVIDEO Web GUI User Guide There are (8) options to be selected: • Bypass (Default): It means the output resolution follows the input source. • 8K -> 4K: Downscales any 8K signal to 4K. • 8K/4K -> 1080p: Downscales any 8K/4K signal to 1080p. •...
  • Page 19 NEUVIDEO Web GUI User Guide HDCP: Click the drop-down menu and set the HDCP for current device output. There are (5) options to be selected: • HDCP 1.4: HDCP 1.4 compliant. • HDCP 2.2: HDCP 2.2 compliant. • Follow Sink: HDCP version follows the corresponding display device. •...
  • Page 20 NEUVIDEO Web GUI User Guide Audio Matrix: This mode allows you to matrix the extracted audio independently. Click on an Audio Out, and then select any input source or ARC audio on the right which will appear below the selected audio out.
  • Page 21 NEUVIDEO Web GUI User Guide If the Mode is “Static”, you can set manually the IP Address/Gateway/Subnet/ Telnet Port as required. If the Mode is “DHCP”, it will search and be filled with the IP Address assigned by the router automatically. You can’t modify it now.
  • Page 22 NEUVIDEO Web GUI User Guide You can do the following operations on the Network page: PANEL LOCK: Click “ON/OFF” to lock/unlock panel buttons. “ON” indicates that panel buttons are unavailable; “OFF” indicates panel buttons are available. BEEP: Turn on/off the beep. LCD ON TIME: You can turn on/off the LCD, and set the display duration time (Always ON/15s/30s/60s).

  • Page 23: Rs-232 Control Commands

    NEUVIDEO RS-232 Control CommandS RS-232 Control Command The product also supports RS-232 control. You need a serial cable with RS-232 male head and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS-232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC.
  • Page 24 NEUVIDEO ASCII CommandS FUNCTION DEFAULT COMMAND CODE EXAMPLE FEEDBACK DESCRIPTION SETTING s lcd on time z! Set LCD screen remain s lcd on time 3! lcd on 30 seconds lcd on 30 seconds on time, z=0~8 (0:off 1:always, 2:15s, 3:30s, 4:60s) r lcd mode! Get the backlight status...
  • Page 25 NEUVIDEO ASCII CommandS FUNCTION DEFAULT COMMAND CODE EXAMPLE FEEDBACK DESCRIPTION SETTING r output y hdcp! Get output y hdcp status. r output 1 hdcp! output 1 HDCP: HDCP 2.2 (y=0~8, 0=all) s output y stream x! Set output y stream s output 1 stream 1! output 1 stream: Enable Enable...
  • Page 26 NEUVIDEO ASCII CommandS FUNCTION DEFAULT COMMAND CODE EXAMPLE FEEDBACK DESCRIPTION SETTING s input x EDID z! z=14. 1080P_HDR, 5.1CH, z=15. 1080P_HDR, 7.1CH cont’d z=16. 4K30_HDR, 2.0CH, z=17. 4K30_HDR, 5.1CH, z=18. 4K30_HDR, 7.1CH z=19. 4K60(420)_HDR, 2.0CH, z=20. 4K60(420)_HDR, 5.1CH, z=21. 4K60(420)_HDR, 7.1CH z=22.
  • Page 27 NEUVIDEO ASCII CommandS FUNCTION DEFAULT COMMAND CODE EXAMPLE FEEDBACK DESCRIPTION SETTING s output y exa Route input source audio s output 1 exa in source output1 ext-audio->input1 output1 extaudio-> in source x! to output ext-audio y input1 (y=0~8, x=1~16) output2 extaudio-> x=1.
  • Page 28 NEUVIDEO ASCII CommandS FUNCTION DEFAULT COMMAND CODE EXAMPLE FEEDBACK DESCRIPTION SETTING s cec in x rew! Set input x rewind by s cec in 1 rew! input 1 rewind operation CEC, x=0~4 (0=all input) s cec in x mute! Set input x volume mute s cec in 1 mute! input 1 volume mute by CEC, x=0~4 (0=all...
  • Page 29 NEUVIDEO ASCII CommandS FUNCTION DEFAULT COMMAND CODE EXAMPLE FEEDBACK DESCRIPTION SETTING s ip addr xxx.xxx. Set network IP address s ip addr 192.168.0.100! Set IP address:192.168.0.100 xxx. (Please use “s net reboot!” command to apply new config!) DHCP on, Device can’t config static address, set DHCP off first.

  • Page 30: Application Example

    NEUVIDEO Application Example...
  • Page 31 THIS PAGE IS INTENTIONALLY LEFT BLANK.
