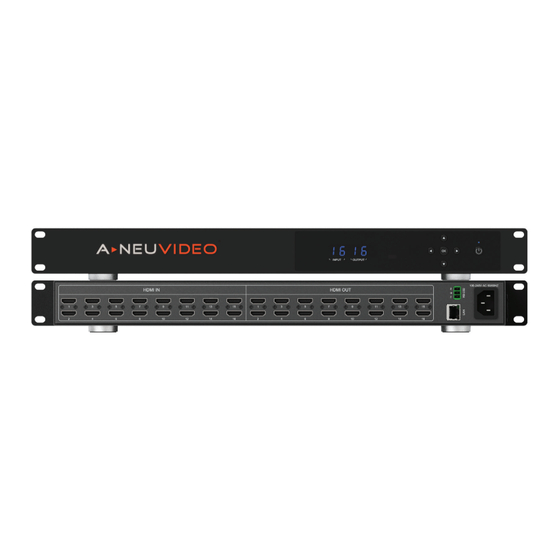

- Page 1 ANI-16-4K60 16x16 HDMI Matrix Switcher w/ Smart EDID Management A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
INTRODUCTION sufficient space for air to circulate around the unit. The ANI-16-4K60 is a high performance HDMI Matrix Switcher. It can switch (16) HDMI HD sources to (16) HDMI HD display devices simultaneously. The OLED screen on the front panel will display the DISCLAIMERS input and output port in real time. -
Page 4: Features & Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI 2.0b (4K60Hz YUV 4:2:0), HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant • Supports resolutions up to 4K2K@50/60Hz (YUV 4:2:0) for all HDMI ports • Supports pass-through audio up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS HD Master Audio •... -
Page 5: Front & Rear Panels
▪ TURN HDCP OFF: Press and hold the front panel “OK” button for 10 seconds. The front panel LED screen “OFF” and flicker. At this time, you have turned OFF the HDCP function and output HDCP will no longer follow the input signal HDCP. The ANI-16-4K60 will reboot. -
Page 6: Remote Control
NEUVIDEO Remote Control Remote Control POWER: Power on or set the unit to standby status. INPUT 0~9: Select one input signal source. NOTE: You must select two numbers when you select input signal source. For example, if you want to select input signal source 1, you need to press ‘0’ button and then ‘1’... -
Page 7: Ascii Commands
RESTORE TO FACTORY SETTINGS s factory reset! FACTORY RESET r version! QUERY SOFTWARE VERSION r version! V1.16 r status! QUERY THE STATE OF THE UNIT r status! "POWER ON V1.16 ANI-16-4K60 BEEP ON/OFF LOCK ON/OFF IP MODE MAC 00-00-00-00- 00-00 PORT 8000"... - Page 8 NEUVIDEO ASCII CommandS s save x! SAVE SWITCH ROUTING SCENARIO TO GROUP s save 1! SAVE TO GROUP 1 X, X=1~10 s recall x! RECALL SAVED GROUP X SCENARIO, X=1~10 s recall 1! RECALL FROM GROUP 1 s clear x! CLEAR STORED GROUP X SCENARIO, X=1~10 s clear 1! CLEAR GROUP 1...
- Page 9 NEUVIDEO ASCII CommandS r edid x! GET INPUT PORT EDID STATUS, X=1~16 r edid 1! IN1: 4K2K60, STEREO AUDIO 2.0 r all edid! GET ALL INPUT PORTS EDID STATUS r all edid! "IN1: 4K2K60, "IN1: 1080P, STEREO STEREO AUDIO 2.0 AUDIO 2.0 IN2: 4K2K60, IN2: 1080P, STEREO...
-
Page 10: Web Gui
Web GUI The ANI-16-4K60 can be controlled via the built-in web-GUI or external software running on a PC. You must know the current Matrix IP address to use the Web-GUI. You can use any 3rd party IP scanning software or use our PC Software to discover the IP address. The default network setting is DHCP. - Page 11 NEUVIDEO Web GUI Web GUI GENERAL PAGE Display current input and output status. Power switch. The Matrix will work when you open this switch. Otherwise, the Matrix will be in standby. Beep switch. Open this switch, pressing the Matrix on-panel button will now make a sound.
- Page 12 PORT BUTTON: Set the value of the LAN port. UPGRADE PAGE UPGRADE: Select upgrade file. The filet type will have extension name ‘.bin’. Click ‘Upgrade’ button. The progress counter will go from 0% - 100%, and the ANI-16-4K60 will reboot.
-
Page 13: Pc Software
The ANI-16-4K60 supports control via the built-in web-GUI or external software running on a PC. You can also use the software to determine the IP address of the ANI-16-4K60. The software can be downloaded from the product page off our website “ANI-16-4K60 PC Software.exe”... -
Page 14: Application Example
NEUVIDEO Application Example Application Example... -
Page 15: Cable Disclaimer
NEUVIDEO CABLE DISCLAIMER CABLE DISCLAIMER It is advised to secure all HDMI cables as to remove stress when connecting to the matrix. Secure HDMI cables either using a cable tray (not included) or a bar (not included) across the rear of the equipment rack. Cables under stress can damage the I/O ports and WILL NOT be covered under warranty. - Page 16 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
