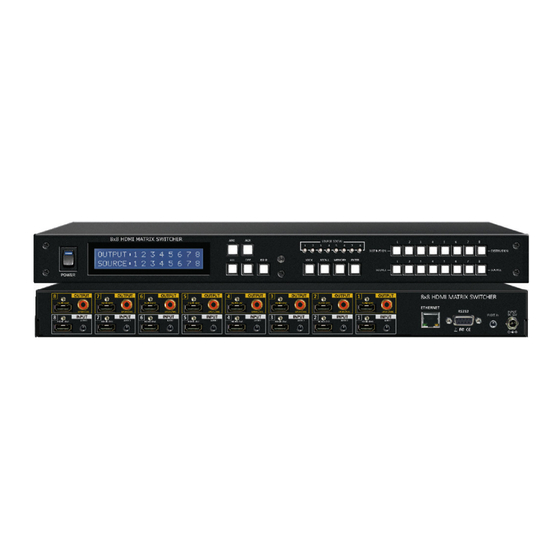

- Page 1 HD-88AK 8x8 HDMI Matrix Switch with Auxiliary Audio I/O A-NeuVideo.com Frisco, Texas 75034 (317) 456-2461 V2.0 AUDIO / VIDEO MANUFACTURER...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
(8) HDMI Inputs and (8) Auxiliary Audio Inputs. Output supported • Do not allow anything to rest on the power cabling or allow any (8) HDMI and (8) SPDIF audio. The HD-88AK is based on the weight to be placed upon it or any person walk on it. -
Page 4: Features
• Using the build-in booster, each HDMI Output port is capable of driving cable lengths 1080p up to 98 ft (30M) & 4K2K up to 66 ft (20M) • The HD-88AK HDMI Outputs contain a booster enabling longer cable runs without using amplifier/repeaters. HDMI specification is 15M or 50 feet. -
Page 5: Specifications
NEUVIDEO SPECIFICATIONS SPECIFICATIONS • Type of Switcher: 8x Inputs to 8x Outputs HDMI Matrix Switcher with Audio and Extension • HDMI Support: HDMI 4K2K, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDCP / CEC Support: HDCP 2.0 Compliant, CEC Compliant • Video Bandwidth: Double Data Rates: 340Mhz, Total 6.75Gbps bandwidth • Digital Video Support: HD:480i/480p/720p/1080i/p and 4K2K up to 36bit deep color • Video Inputs: 8x HDMI (HDMI or DVI digital source) -
Page 6: Front Panel
NEUVIDEO FRONT PANEL FRONT PANEL POWER SWITCH: The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 NEUVIDEO FRONT PANEL FRONT PANEL FUNCTION KEY - ARC: Audio Return Channel (ARC) is a feature that sends audio from the TV back down the HDMI cable to its source device, in this case, the switcher, Not all displays support ARC; check your Users Guide for additional information.
- Page 8 NEUVIDEO FRONT PANEL FRONT PANEL FUNCTION KEY - AUX (The audio additional on the “ Audio / ARC” port) The AUx FUNCTION feature allows you to replace the embedded HDMI audio signal with an audio signal that is connected to the switchers Audio AUx Input. Using the AUx function replaces the audio and does not mix the audio.
- Page 9 NEUVIDEO FRONT PANEL FRONT PANEL FUNCTION KEY - EDID Used to display change current EDID mode. - Press EDID to select new EDID mode or select - Press SOURCE row #1 or #2 Select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel operation.
- Page 10 NEUVIDEO FRONT PANEL FRONT PANEL FUNCTION KEY - ALL Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected.
- Page 11 NEUVIDEO FRONT PANEL FRONT PANEL FUNCTION KEY - RECALL The system will show previously stored presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location.
-
Page 12: Rear Panel
NEUVIDEO REAR PANEL REAR PANEL Power Jack: DC POWER INLET: The Switcher is fitted with a DC power DC Jack - Inner OD ᴓ 2.1mm (+ ) plug input connector. Ensure that the used is of an approved type Outside OD ᴓ 5.5mm (GND) and is of sufficient current carrying connector capacity with the Power input - 12VDC, 5A correct voltage and connector polarity. - Page 13 NEUVIDEO REAR PANEL REAR PANEL HDMI Connector: HDMI Type A SMD 19pin INPUTS- 1,2,3,4,5,6,7, & 8 HDMI: Connect an HDMI Female socket connector. signal source to this Input. This HDMI port supports HDMI with Note: With the proper adapters, the embedded audio and DVI with AUx audio sources.
-
Page 14: Typical Application
INSTALLING DIAGRAM Samples connection : 1. Using IR External, RS-232 or Ethernet command to control Switcher HD-88AK via PC or IR Rx-100 IR receiver transmit the HD-88AK’s IR signal. 2. Audio output link ARC from TV return channel, HDMI audio source or mixing Auxiliary audio. -
Page 15: Remote Control
NEUVIDEO REMOTE CONTROL Before making any connections to the switcher. Observe the following: • Ensure the mains voltage supply matches the label on the supplied plug-pack (+/- 10%) • Ensure that the power switch is OFF • Ensure that all system grounds (earth) are connected to a common point. •... - Page 16 NEUVIDEO REMOTE CONTROL IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : Model number : HD-88AK CUSTOM CODE : 03FC POWER ON : 03FC A15E POWER OFF : 03FC A25D ARC : 03FC B847 AUX :...
-
Page 17: Ir Extender
NEUVIDEO IR EXTENDER 1. ANI-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (ANI-100) Distance: Max.300M IR PN#: ANI-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . - Page 18 NEUVIDEO IR EXTENDER 1. ANI-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (ANI-101) IR out CAT6/6a/7 IR in DC 12V R oHS /95/E C IR Tx From OUTPUT Receiver Receiver ANI-101 ANI-101 IR Transmitter Set ANI-101 Maximum Distance ~ 984 feet (300M) 2.
-
Page 19: Edid Function
NEUVIDEO EDID FUNCTION EDID function Setup EDID setup To change the EDID setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOURCE #1 or #2 button row The button will flash blue and the display will show the current Embedded EDID Status. To set EDID mode. - Page 20 NEUVIDEO EDID FUNCTION EDID function : 7x Embedded EDID Modes Mode 1. FSS ® (Fast Speed Start) Fast Speed Start mode shortens the startup time of the switcher. Selecting this mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start.
- Page 21 NEUVIDEO EDID FUNCTION EDID Function : LEARNING Learning EDID Single to Single Example : Learn Destination #8 EDID To Source #5. Step 1. Press the EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2.
- Page 22 NEUVIDEO EDID FUNCTION EDID function for HDMI Matrix Switcher LEARNING EDID Learning EDID from Destination to Source Learning EDID setup Press EDID > DESTINATION Button: The LCM will be show LEARNING Press Switcher will LEARN destination HDMI EDID and pass the selected source. EDID >...
-
Page 23: Ethernet & Rs-232 Serial Interface
RS-232 RS-232 SERIAL INTERFACE PROTOCOL COMMANDS ( Ethernet / RS-232 Control driver V2.0 ) The HD-88AK switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system. The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. When the unit... - Page 24 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
