  • Page 1 ANI-42HDFIX 4x2 HDMI2.0 18Gbps Matrix Switcher w/ Scaler w/ SPDIF w/ Analog w/ Web-GUI A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    • ANI-42HDFIX 4x2 HDMI 2.0 18Gbps Matrix Switcher into any language or computer file, in any form or by any means •...

  • Page 4: Features

    NEUVIDEO FEATURES FEATURES • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant • (4) 18G HDMI 2.0 video inputs supporting up to 4K60 444 resolution • (2) 18G HDMI 2.0 video outputs supporting up to 4K60 444 resolution •...

  • Page 5: Specifications

    NEUVIDEO SPECIFICATIONS SPECIFICATIONS • Input Ports: (4) HDMI Type A [19-pin female] • Output Ports: • (2) HDMI Type A [19-pin female] • (2) L/R audio out [3-pin phoenix connector] • (2) OPTICAL audio out [S/PDIF] • (2) RS-232 A/B [3-pin phoenix connector] •...

  • Page 6: Front & Back Panels

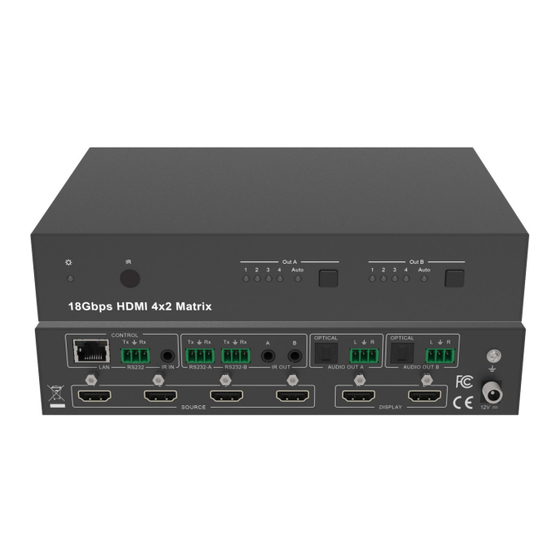

    NEUVIDEO FRONT & REAR PANELS FRONT PANEL POWER LED: Blue LED indicates that the unit is powered. Red LED indicates that the unit is in standby mode. IR SENSOR: IR input for remote control of the switcher. OUT A / OUT B: LED and button for each output ■...

  • Page 7: Connecting To The Matrix

    NEUVIDEO Connecting to the Matrix Connecting to the Matrix 1. Connect the desired HDMI input sources. 2. Connect the desired HDMI display devices. 3. Connect any CONTROL inputs that may be required: LAN, RS-232, or IR IN. 4. Connect any Display control port: RS-232-A, RS-232-B, IR OUT A or IR OUT B. 5.

  • Page 8: Remote Control

    NEUVIDEO REMOTE CONTROL REMOTE CONTROL : Power on the product or set it to standby mode. OUTPUT A / B: 1/2/3/4: Select input source signal to Out A / B port output, corresponding Out A / B LED on the front panel illuminates in blue. ◄...
  • Page 9 NEUVIDEO IR Pin Definition IR Pin Definition...

  • Page 10: Web Gui

    NEUVIDEO Web GUI Using the Built-In Web Interface The Matrix has a built-in web interface to provide a means of controlling or configuring various settings. There are seven pages available, each of which will be outlined in detail in the following sections. The seven pages are: 1.
  • Page 11 NEUVIDEO Web GUI Status Page The Status page provides basic information about the product Model name, the installed firmware versions and the network settings. This page is visible in both User and Admin modes. The buttons at the top right of the web interface are always available and provide the following functions: •...
  • Page 12 NEUVIDEO Web GUI Input page The Input page provide information about which inputs are connected and have a signal present. The inputs can be giving more meaningful names, if desired. The EDID column provides a list of EDID options for each individual input. The following EDID options are available in any of the EDID drop-down lists: 1080P, Stereo Audio 2.0 1080P, Dolby/DTS 5.1...
  • Page 13 NEUVIDEO Web GUI Output page The Output page provides information about the signal status of the outputs. The outputs can also be assigned meaningful names, is desired. The scaler mode menu provides the following options: • Off: No scaling. • 4K→1080P: Downscale to 1080p, if needed. •...
  • Page 14 NEUVIDEO Web GUI System page The system page allows setting of the control RS-232 port baud rate and changing the test pattern output. This page is also used to install new firmware updates, restore the factory default settings and reboot the Matrix. Control page The Control page is used to set the RS-232 or IR display device power on/off commands for the Automatic Power Switching mode.
  • Page 15 NEUVIDEO Web GUI • RS-232 Setting 1 and RS-232 Setting 2 This page requires that the IR commands are available in plain text files using the CCF IR code format. 1. Select the desired IR Control Setting tab. 2. Click the Load button to load the respective IR command. If the display device only support a power toggle IR command, then use the same file for both the Power On and Power Off modes.

  • Page 16: Ascii Control Command

    NEUVIDEO ASCII control command ASCII control command The Matrix also supports ASCII control. You need to a RS-232 phoenix connector male head to RS-232 female head with DB9 serial cable and a RS-232 male head with DB9 to USB male head serial cable. The phoenix connector male head is connected the RS-232 port of the Matrix, and the USB head of the serial cable is connected a PC.
  • Page 17 Serial port protocal: Baud rate:115200 (default), Data bits: 8bit, Stop bits:1, Check bit: 0, TCP/IP protocol port: 8000. The x, y, z, XXX are parameter. RS-232 COMMAND FUNCTION DESCRIPTION FEEDBACK Get device model ANI-42HDFIX r type! Get device current status Get the unit all status: power, in/out r status! connection, video/audio crosspoint,...
  • Page 18 NEUVIDEO ASCII Command EDID SETTING Set input x EDID from default EDID z, x=0~4 (0=all), z=1~25 IN1 EDID: 1080p,Stereo Audio 2.0 s edid in x from z! 1=1080p,Stereo Audio 2.0 2=1080p,Dolby/DTS 5.1 3=1080p,HD Audio 7.1 4=1080i,Stereo Audio 2.0 5=1080i,Dolby/DTS 5.1 6=1080i,HD Audio 7.1 7=3D,Stereo Audio 2.0 8=3D,Dolby/DTS 5.1...
  • Page 19 NEUVIDEO ASCII Command Get network IP mode IP mode: Static r ip mode! s ip addr xxx.xxx.xxx. Set network IP address Set IP address:192.168.1.100. Please use “s netreboot!” command or xxx! repower device to apply new config! DHCP on, Device can’t config static address, set DHCP off first.
  • Page 20 NEUVIDEO ASCII Command port=(01=RS232-A, 02=RS232-B) Port: RS232-A s rs232 (port) (format)(baudrate) format=(00=ASCII, 01=HEX) Format: ASCII baudrate=(00-4800 01-9600 02-19200 03-38400 04-57600 05- Baudrate: 115200 (databit)(parity) 115200) Databit: 8bit (stopbit)(cmdterminat- databit=(00-7bit 01-8bit) Parity: none ing) [cmddata]! parity=(00-none 01-odd 02-even) Stopbit: 1bit stopbit=(00-1bit 01-2bit) Terminator: none cmdterminating=(00-none 01-cr 02-lf 03-cr+lf) Data: r ipconfig!

  • Page 21: Application Example

    NEUVIDEO APPLICATION EXAMPLE L/R ACTIVE SPEAKERS...
  • Page 22 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 23 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 24 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
