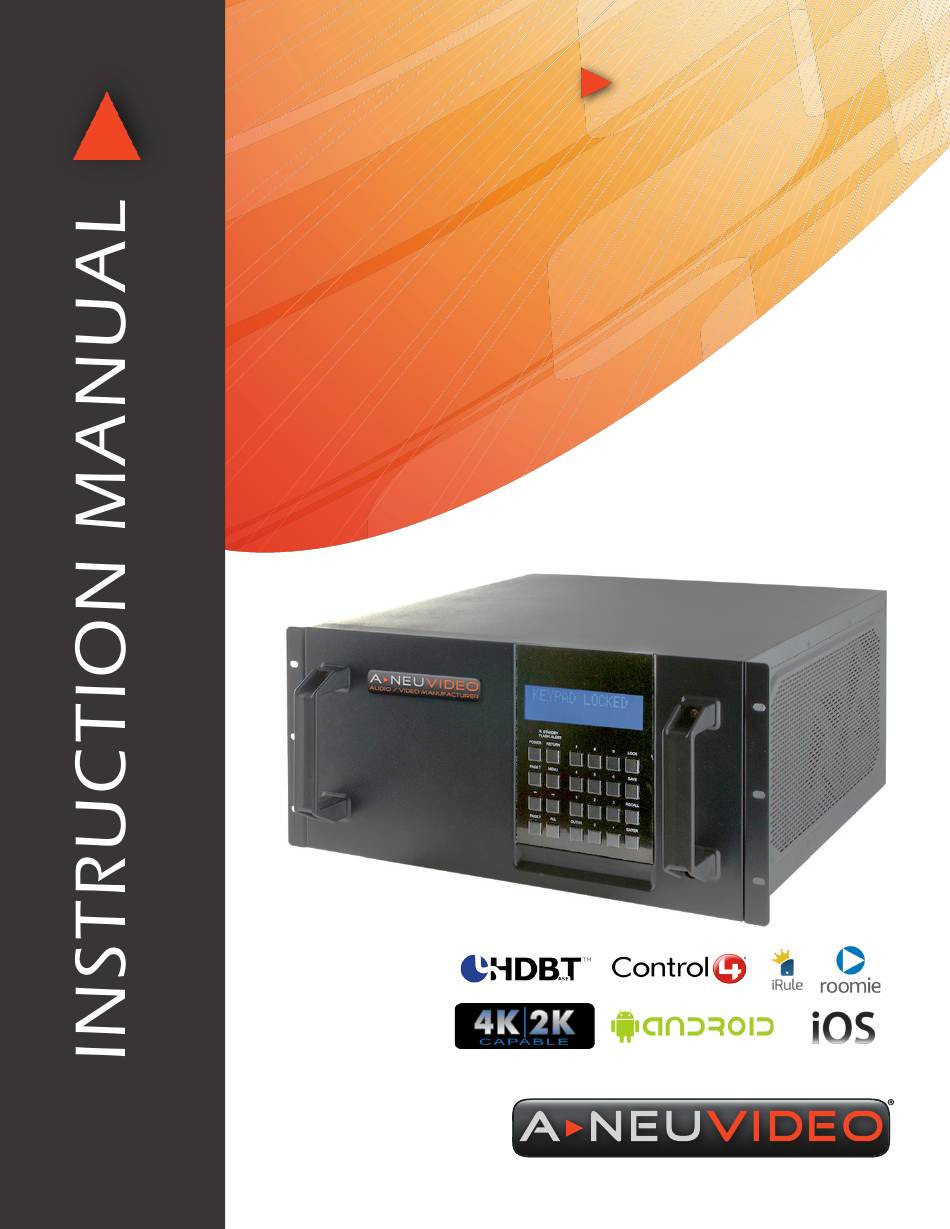

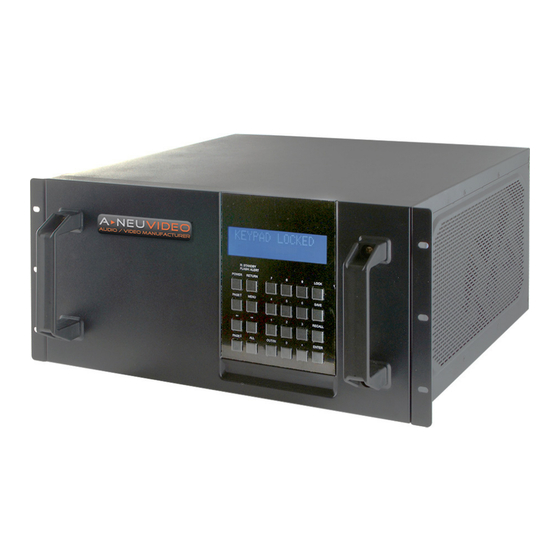

- Page 1 ANI-MODZ ANI-MODZ Series: Modular Matrix Switcher ® ™ ™ A-NeuVideo.com Frisco, Texas 75034 (317) 456-2461 V2.8 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Keep unit protected from rain, water and excessive moisture.
-
Page 3: Table Of Contents
NEUVIDEO TABLE OF CONTENTS CONTENTS SAFETY PRECAUTIONS PacKagE conTEnTS ..............1 Please read all instructions before attempting to unpack, install or INTRODUCTION ................2 operate this equipment and before connecting the power supply. SYSTEM REQUIREMENTS ............2 Please keep the following in mind as you unpack and install this FEATURES ................... -
Page 4: Introduction
NEUVIDEO INTRODUCTION & FEATURES INTRODUCTION The ANI-MODZ Modular Matrix is designed to allow the switching and distribution of up to 32 source devices to up to 32 connected displays (model specific), either directly via HDMI, DVI or via caT5e/6/7 outputs to compatible receivers, providing control options (dependent on module configuration). -
Page 5: Specifications
NEUVIDEO SPECIFICATIONS Main Units ANI-MODZ8 General Input Modular Slots Output Modular Slots 1 8x HDMI or DVI or CAT5e/6/7 or VGA 8x HDMI or DVI or CAT5e/6/7 Input Channels Output Channels (dependent on module configuration) (dependent on module configuration) AC 110~240V (US/EU standards, CE/ FCC/ Power Supply Installation Rack Mountable... - Page 6 NEUVIDEO SPECIFICATIONS Main Units ANI-MODZ16 General Input Modular Slots Output Modular Slots 2 16x HDMI or DVI or CAT5e/6/7 or VGA 16x HDMI or DVI or CAT5e/6/7 Input Channels Output Channels (dependent on module configuration) (dependent on module configuration) 2x AC 110~240V Power Supply Installation Rack Mountable...
- Page 7 NEUVIDEO SPECIFICATIONS Main Units ANI-MODZ32 General Input Modular Slots Output Modular Slots 4 32x HDMI or DVI or CAT5e/6/7 or VGA 32x HDMI or DVI or CAT5e/6/7 Input Channels Output Channels (dependent on module configuration) (dependent on module configuration) 2x AC 110~240V Power Supply Installation Rack Mountable...
- Page 8 NEUVIDEO SPECIFICATIONS ANI-MODz signal card (changeable cards) The anI-MoDZ series input and output cards for installation into the modular matrix switcher chassis are classified into the following models. ANI-MODZ Input cards ANI-MODZ Output cards MODelS INPUTS SIGNAl FORMAT MODelS OUTPUTS...
-
Page 9: Ani-Modz8
NEUVIDEO ani-modz8 Front Panel Operation ANI-MODZ8: The front panel of ANI-MODZ8 is shown as below. 1. lCM: Displays the setting information of each input/output and other setting information according to the selected mode. 2. IR WINDOW: Accepts the IR remote control signal for the matrix only. 3. -
Page 10: Rear Panel Operation
NEUVIDEO ani-modz8 rear Panel Operation ANI-MODZ8: The rear panel of ANI-MODZ8 is shown as below. Note: The above panel is an example of 8x8 HDMI configuration. 1. OUTPUTS 1~8: Install an Output module as required for connection to up to (8) displays (TV or monitor) or CAT5e/6/7 outputs or compatible HDBaseT™... -
Page 11: Ani-Modz16/Ani-Modz32
NEUVIDEO ani-modz16/ani-modz32 Front Panel Operation ANI-MODZ16/ANI-MODZ32: The front panel for both the ANI-MODZ16 and the ANI-MODZ32 is shown as below. 1. lCM: Display the setting information of each input/output and other setting information according to the selected mode. 2. IR WINDOW: Accepts the IR remote control signal for the matrix only. -
Page 12: Rear Panel Operation Ani-Modz16
NEUVIDEO ani-modz16 rear Panel Operation ANI-MODZ16: The rear panel for the ANI-MODZ16 is shown as below. Note: The above panel is an example of 16x16 HDMI configuration. 1. OUTPUT 1~16: Install up to (2) Output modules as required for up to (16) displays (TV or monitor) or CAT5e/6/7 outputs for compatible HDBaseT™... -
Page 13: Rear Panel Operation Ani-Modz32
NEUVIDEO ani-modz32 rear Panel Operation ANI-MODZ32: The rear panel for the ANI-MODZ32 is shown as below. Note: The above panel is an example of 32x32 HDMI configuration. 1. OUTPUT 1~32: Install up to (4) Output modules as required for up to (32) displays (TV or monitor) or CAT5e/6/7 outputs for compatible HDBaseT™... -
Page 14: Remote Control
NEUVIDEO Remote Control Remote Control 1. POWeR: ON/OFF selection 2. OUTPUT: Output port selection 3. INPUT: Input port selection 4. eNTeR: Press to confirm the present input/output selection 5. CleAR: Press to clear the present input/output selection Channels should be entered using two digits. For example: entering channel 2 would be “02”... -
Page 15: Input & Output Modules
NEUVIDEO Input and Output Modules Input Modules ANI-IN-5P 8 Port HDBaseT™ Input Module SPeCIFICATIONS Video Bandwidth 300 MHz/10.2 gbps Features HD Video/Audio, PoC, Ethernet, IR/RS-232 Pass Thru Input Ports 8x CAT5e/6/7, 1x LAN Ethernet Speed 100 Mbps Video Resolutions Pc: Vga~WUXga HDTV: 480i~1080p &... -
Page 16: Output Modules
NEUVIDEO Input and Output Modules Input Modules ANI-IN-DV 8 Port DVI Input Module SPeCIFICATIONS Video Bandwidth 225 MHz/6.75 gbps Input Ports 8x DVI Video Resolutions Pc: Vga~WUXga@60 (RB) HDTV: 480i~1080p Audio Transmission LPcM7.1cH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master audio (32~192kHz Fs sample rate) Power Consumption ANI-IN-VG 8 Port VGA Input Module... -
Page 17: Input Modules
NEUVIDEO Input and Output Modules OUTput Modules ANI-OUT-5P 8 Port HDBaseT™ Output Module SPeCIFICATIONS Video Bandwidth 300 MHz/10.2 gbps Features HD Video/Audio, PoC, Ethernet, IR, RS-232 Pass Thru Output Ports 8x CAT5e/6/7, 1x LAN, 8x IR Extender, 8x IR Blaster Ethernet Speed 100 Mbps Video Resolutions... - Page 18 NEUVIDEO Input and Output Modules OUTput Modules ANI-OUT-4K 8 Port 4K HDMI Output Module SPeCIFICATIONS Video Bandwidth 300 MHz/10.2 gbps Output Ports 8x HDMI Video Resolutions Pc: Vga~WUXga HDTV: 480i~1080p, 4K2K@30Hz Audio Transmission LPcM7.1cH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master audio (32~192kHz Fs sample rate) Power Consumption 22 W ANI-OUT-HD...
-
Page 19: Transmitter & Receiver Options
NEUVIDEO TRANSMITTER & RECEIVER OPTIONS TRANSMITTERS & RECEIVERS 1080p/uHd manufacture Body external type rS-232 etHernet poc* caBle part# type audio power lengtH ANI-315XLR Receiver stand alone ü ü ü 1-WAY ü ------ ----- 60 / 35m ANI-315XLT Transmitter stand alone ü... -
Page 20: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM Example Installation (32x32 HDMI Matrix) -
Page 21: Ir Cable Pin Assignments
NEUVIDEO IR Cable Pin Assignments Power IR Signal IR Signal Power Grounding... -
Page 22: Rs-232 Protocols
NEUVIDEO RS-232 Protocols MATRIX RS-232 CONTROlleR Definition Definition ► ◄ Baud Rate: 19200bps Data Bit: 8 bits Parity: none Stop Bit: 1 Flow control: none... -
Page 23: Rs-232 & Telnet Commands
NEUVIDEO RS-232 and Telnet Commands COMMAND CODeS FUNCTIONS Power on Power off OxIy Set output (x=1~32) to input (y=1~32) ALLOUT x Set all outputs to input (x=1~32) ACTIVE Report active I/O channels INDETECT Input channels detection indicator OUTDETECT Output channels detection indicator PORTSTATUS Report all output connection status HDCPON x... - Page 24 NEUVIDEO RS-232 and Telnet Commands COMMAND CODeS FUNCTIONS SHoWIRMaSKcPU x y* Show the IR routing of CPU control board (x=sink/src/out, y=1~32/all) UART x y "str" Write UART string to output port (x=in/out, y=1~32, "str"="string") UARTBAUD x y Set the UART Baud rate of output (x=1~32, y=rate) STATUSUART Show the UART Baud rate of output TEMPSTATUS...
-
Page 25: Telnet Control
NEUVIDEO Telnet Control Setup procedure for 4K2K UHD The default EDID setting, regardless of I/O cards is 1080p. Because EDID determines when a source can output a 4K2K signal, the matrix switcher must be told which source and display to use for EDID information exchange. These changes are done using the front panel of the matrix or via Telnet. - Page 26 NEUVIDEO Telnet Control Before attempting to use the Telnet control, please ensure that both the Matrix (via the ‘LAN /CONTROL’ port) and the PC/Laptop are connected to the same active networks. To access the Telnet control in Windows 7, click on the ‘Start’ menu and type “cmd” in the Search field then press enter. • Under Windows XP go to the ‘Start’...
- Page 27 NEUVIDEO Telnet Control This will bring us into the unit which we wish to control. Type “help” to list the available commands. Type “IPconFIg” To show all IP configurations. To reset the IP, type “RSTIP” and to use a static IP, type “SETIP” (For a full list of commands, see Section 6.4).
-
Page 28: Web Gui Control
NEUVIDEO Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type the unit’s IP address on the web address entry bar. The browser will display the unit’s Status, Control and User Setting pages. Click on the ‘Control’... - Page 29 THIS PagE IS InTEnTIonaLLY LEFT BLanK.
- Page 30 THIS PagE IS InTEnTIonaLLY LEFT BLanK.
- Page 31 THIS PagE IS InTEnTIonaLLY LEFT BLanK.
- Page 32 BY, THROUGH OR UNDER A-NEUVIDEO, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-Neuvideo, Inc. at the return address set forth on the Product’s packing label at your expense.
