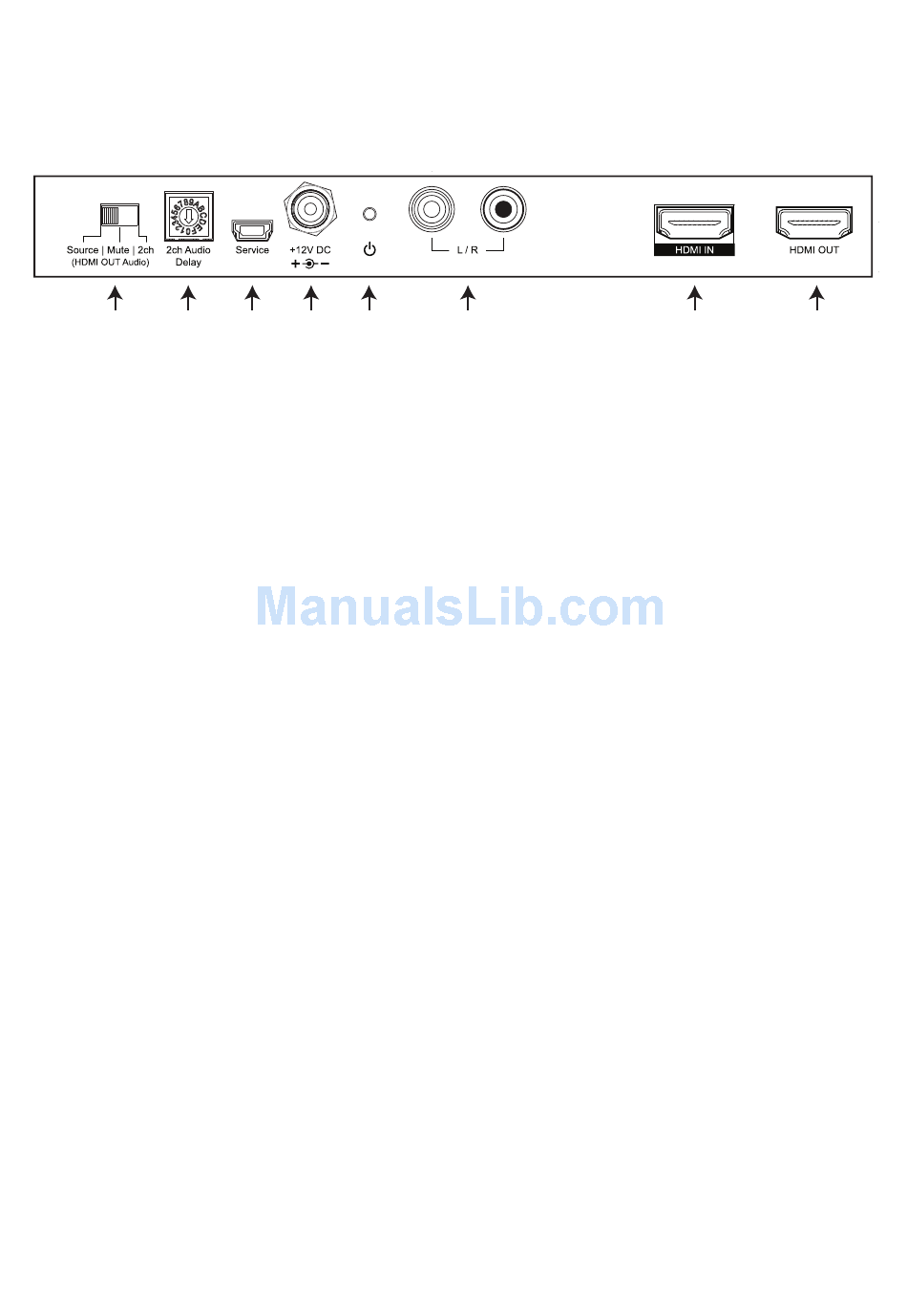

Rear Panel

D
C
C. HDMI Out Audio Switch
Selects the desired audio setting for HDMI output.
• Source: Pass through multichannel from HDMI input to HDMI output.
• Mute: Only sends video to HDMI output, no audio
• 2ch: HDMI and RCA will output 2 channel audio.
D. Audio Delay (Analog Only)
Adjust to delay the RCA 2 channel output to match the HDMI video signal.
E. Service Port
Update firmware.
F. Thread Locking Power Connector
Connect to the included 12V DC, 2A power supply.
G. Power LED
Lights up blue when the unit has power.
H. RCA Output
This outputs analog 2 channel audio to connect to amplifier.
I. HDMI In
HDMI input to connect to a source.
J. HDMI Out
HDMI output to connect to a display or AVR (sink).
G
E F
H
5
