DIN FRONT-MOUNT (Method A)

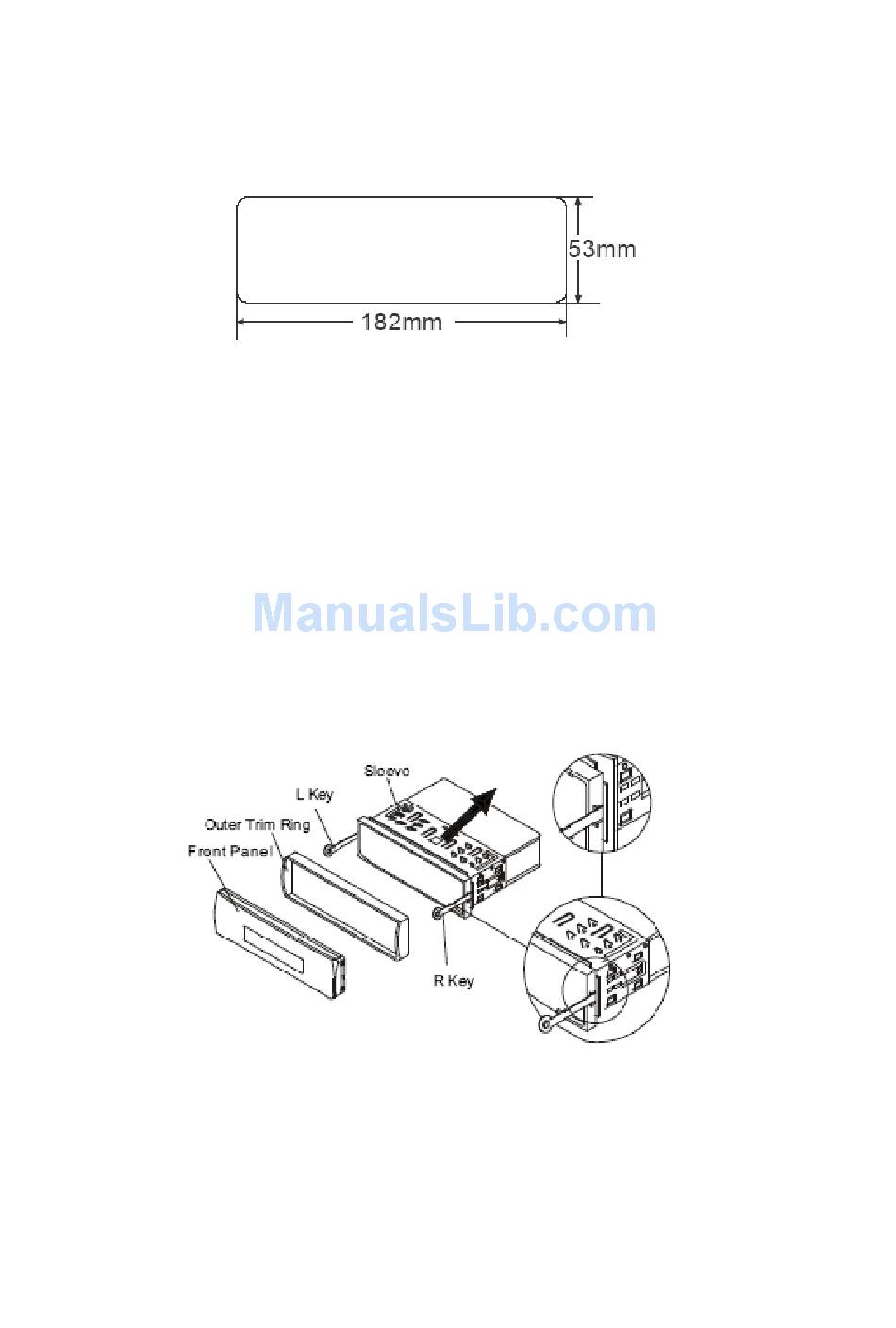

Installation OpeningThis unit can be installed in any dashboard having an
opening as show below:
Installing the unit
Be sure you test all connections first, and then follow these steps to install
the unit.
1.Make sure the ignition is turned off, and then disconnect the cable from
the vehicle battery's negative (-) terminal.
2.Disconnect the wire harness and the antenna.
3.Press the release button on the frontpanel and remove the control panel.
4.Life the top of the outer trim ring then pull it out to remove it.
5.The two supplied keys release tabs inside the unit's sleeve so you can
remove it. Insert the keys as far as middle left and right sides of the unit.
Then slide the sleeve off the back of the unit.
6.Mount the sleeve by inserting thesleeve into the opening of the dashboard
and bend open the tabs located around the sleeve with a screwdriver. Not
all tabs will be able to make contact, so examine which ones will be most
effective. Bending openthe appropriate tabs behind the dashboard to
secure the sleeve inplace.
