7.Reconnect the wire harness and the antenna and be careful not to
pinchany wires or cables.

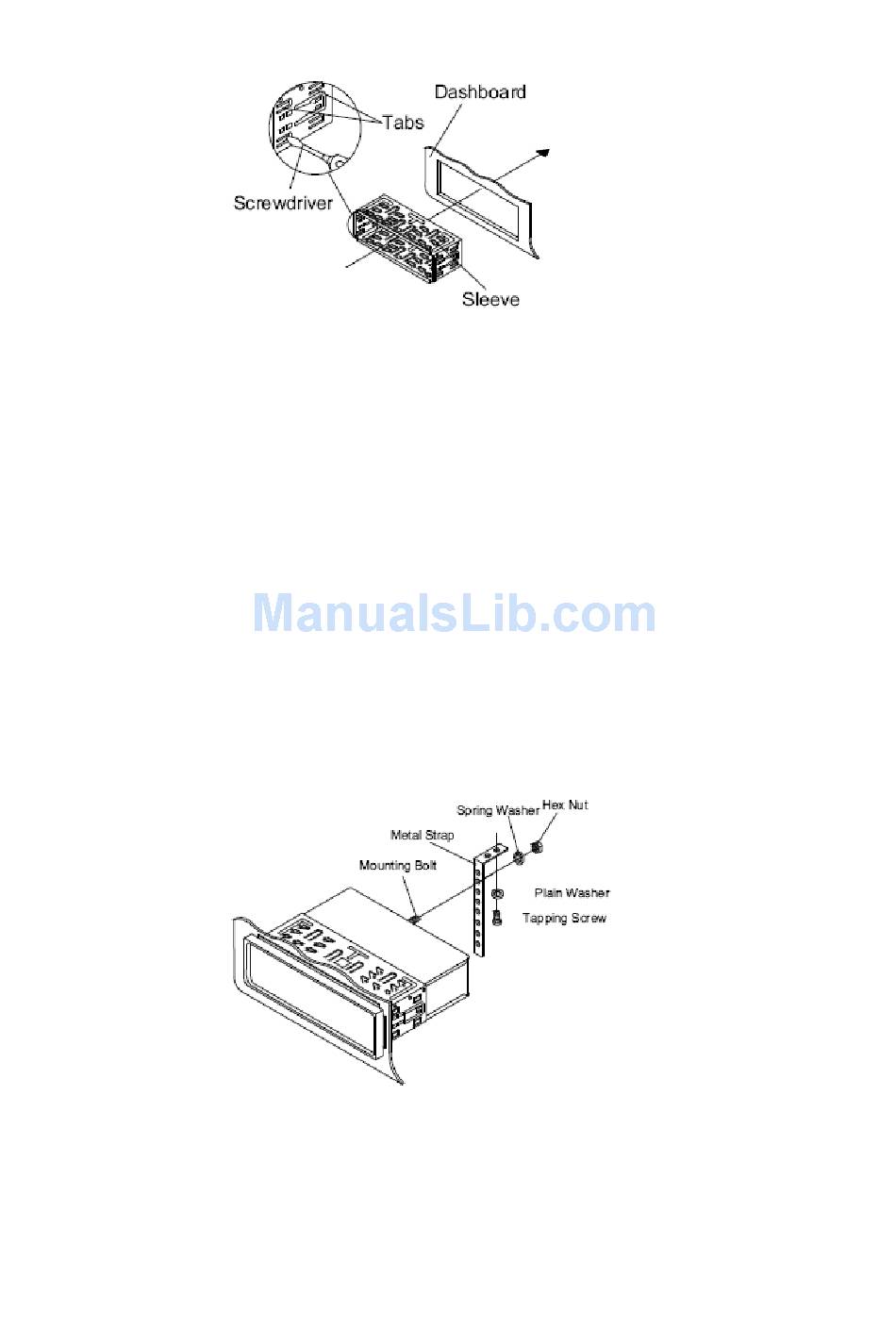

8.Slide the unit into the sleeve until it Locks into place.
9.To further secure the unit, use the supplied metal strap to secure the back
of the unit in place. Use the supplied hardware (Hex Nut (5mm) and Sp-
ring Washer) to attach one end of the strap to the mounting bolt on the
back of the unit. If necessary, bend the metal strap to fit your vehicle's
mounting area.
Then use the supplied hardware(Tapping Screw (5x25mm) and Plain
Washer) to attach the other end of metal strap to a solid metal part of
thevehicle under the dashboard. This strap also helps ensure proper
electrical grounding of the unit. Note to install the short threading terminal
of the mounting bolt to the back of the unit and the other long threading
terminal to the dashboard.
10. Reconnect the cable to the vehicle battery's negative (-) terminal. Then
replace the out trim ring and installthe unit's front panel (see the step of
"installing the front panel").
