Advance Plannin

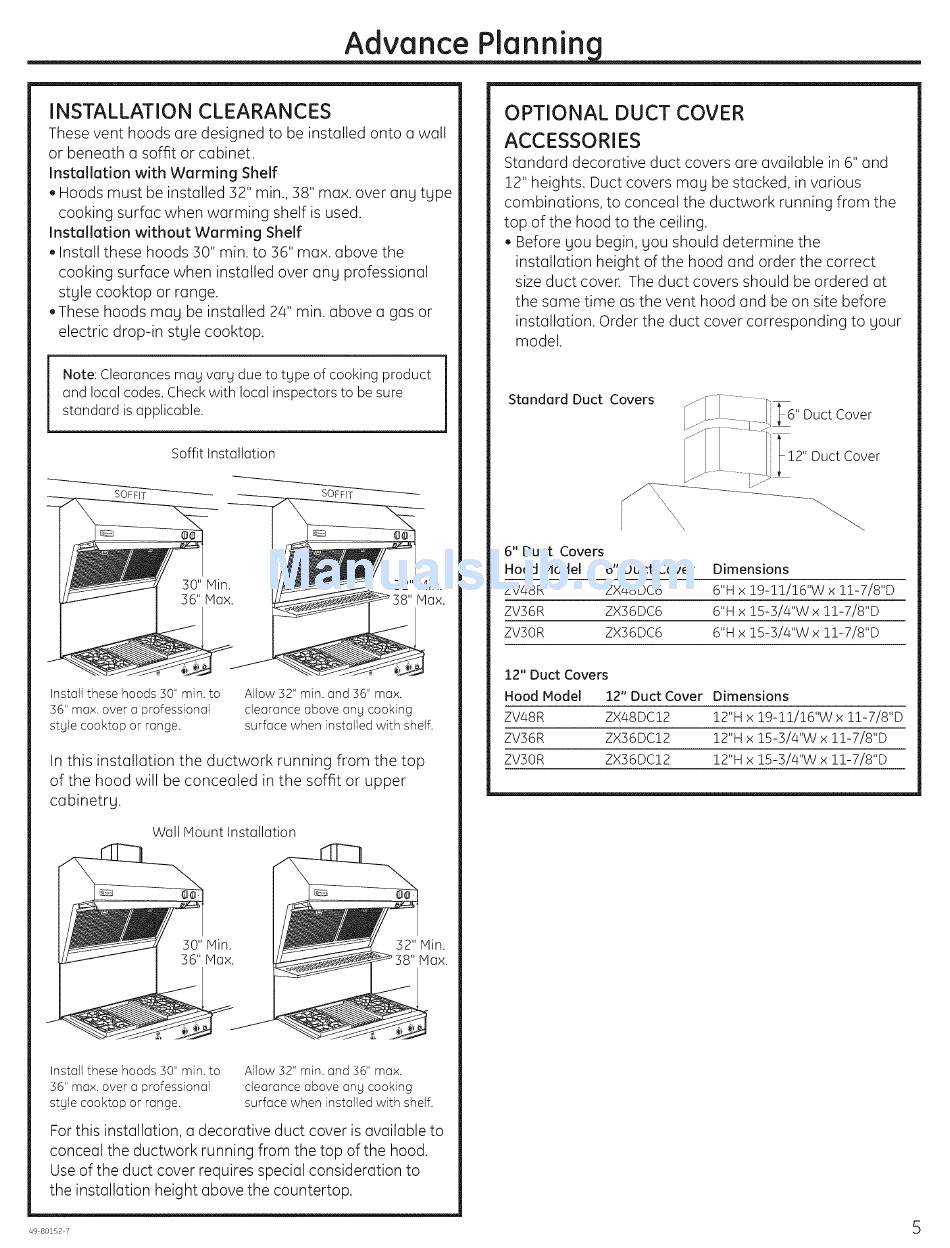

INSTALLATION CLEARANCES
These vent hoods are designed to be installed onto a wall
or beneath a soffit or cabinet.
Installation with Warming Shelf
, Hoods must be installed 32" min., 38" max. over any type
cooking surfac when warming shelf is used.
Installation without Warming Shelf
, Install these hoods 30" min. to 36" max. above the
cooking surface when installed over any professional
style cooktop or range.
,These hoods may be installed 24" min. above a gas or
electric drop-in style cooktop.
Note: Clearances may vary due to type of cooking product
and local codes. Check with local inspectors to be sure
standard is applicable.
Soffit Installation
SOFFIT
Install these hoods 30" min. to Allow 32" min. and 36" max.
36" max. over a professional clearance above ang cooking
stgJe cooktop or range, surface when installed with shelf.
In this installation the ductwork running from the top
of the hood will be concealed in the soffit or upper
cabinetry.
Wall Mount Installation
32" lin.
Install these hoods 30" min. to Allow 32" min. and 36" max.
36" max. over a professional clearance above ang cooking
stgJe cooktop or range, surface when installed with shelf.
For this installation, a decorative duct cover is available to
conceal the ductwork running from the top of the hood.
Use of the duct cover requires special consideration to
the installation height above the countertop.
OPTIONAL DUCT COVER
ACCESSORIES
Standard decorative duct covers are available in 6" and
12" heights. Duct covers may be stacked, in various
combinations, to conceal the ductwork running from the
top of the hood to the ceiling.
. Before you begin, you should determine the
installation height of the hood and order the correct
size duct cover. The duct covers should be ordered at
the same time as the vent hood and be on site before
installation. Order the duct cover corresponding to your
model.
Standard Duct Covers
6" Duct Cover
12" Duct Cover
6" Duct Covers
Hood Model 6" Duct Cover Dimensions
ZV48R ZX48DC6 6"H x !9-!!/!6"W x !!-7/8"D
ZV36R ZX36DC6 6"H x !5-3/4"W x !!-7/8"D
ZV30R ZX36DC6 6"H x !5-3/4"W x !!-7/8"D
12" Duct Covers
Hood Model 12" Duct Cover Dimensions
ZV48R ZX48DC!2 !2"H x !9-!!/!6"W x !!-7/8"D
ZV36R ZX36DC!2 !2"H x !5-3/4"W x !!-7/8"D
ZV30R ZX36DC!2 !2"H x !5-3/4"W x !!-7/8"D
