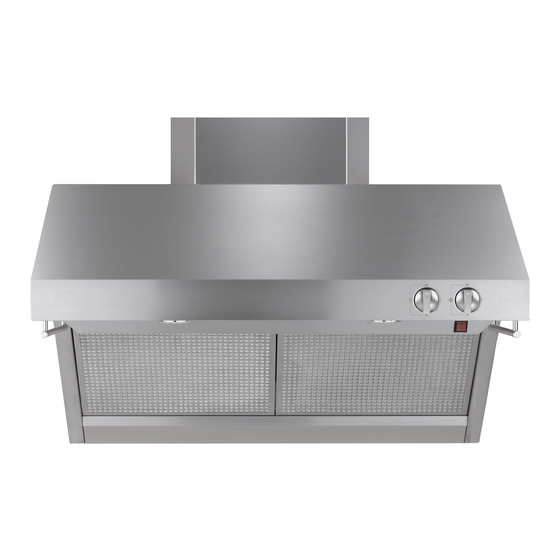

Monogram ZV48R Installation Instructions Manual
30", 36" and 48" professional restaurant style vent hoods
Hide thumbs
Also See for ZV48R:
- Installation instructions manual (32 pages) ,
- Installation instructions manual (16 pages) ,
- Installation instructions manual (18 pages)
Related Manuals for Monogram ZV48R
Summary of Contents for Monogram ZV48R
- Page 1 Installation Instructions If you have questions, call 800.GE.CARES or visit our website at: www.monogram.com 30", 36" and 48" Professional Restaurant Style Vent Hoods Models: ZV48R ZV36R ZV30R...
-
Page 2: Safety Information
Safety Information READ AND SAVE THESE INSTRUCTIONS BEFORE YOU BEGIN WARNING: TO REDUCE THE RISK OF Read these instructions completely and carefully. FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: IMPORTANT • Save these instructions for A. Use this unit only in the manner intended local inspector’s use. -
Page 3: Avant De Commencer
• Une quantité d’air suffisante est nécessaire à une com- Pour les services locaux Monogram dans votre secteur, bustion et une évacuation appropriées des gaz par le conduit d’évacuation (cheminée) de Pour les services Monogram au Canada, appelez le l’équipement à... -
Page 4: Table Of Contents
Hoods may be Warming installed with the Shelf shelf or back- guard alone, or with both as u a r d B a c k g shown. Model ZV48R Model ZV36R Model ZV30R 49-80152-7... -
Page 5: Installation Clearances
12" Duct Cover SO FF IT SO FF IT 6" Duct Covers Hood Model 6” Duct Cover Dimensions 30" Min. 32" Min. ZV48R ZX48DC6 6"H x 19-11/16"W x 11-7/8"D 36" Max. 38" Max. ZV36R ZX36DC6 6"H x 15-3/4"W x 11-7/8"D ZV30R ZX36DC6 6"H x 15-3/4"W x 11-7/8"D... -
Page 6: Installation Height, Duct Cover Accessories
Advance Planning DETERMINE INSTALLATION HEIGHT, DUCT COVER ACCESSORIES These vent hoods must be installed 30" min. to Restaurant-Style Hoods Restaurant-Style Hoods with 36" max. above the standard 36" high cooking without Warming Shelf Shelf Installed surface. When installed with the warming Installed shelf, allow 32"... -
Page 7: Advance Planning
Advance Planning ADVANCE PLANNING POWER SUPPLY IMPORTANT - (Please read carefully) Ductwork Planning WARNING: • These vent hoods are equipped for 10" round ductwork. For best performance, use 10" round ductwork on the FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE 48"... -
Page 8: Duct Fittings
Advance Planning DUCT FITTINGS Equivalent Quantity Total Duct Piece Length* Used Length Use this chart to compute maximum permissable lengths for duct runs to outdoors. 10" round to 8" round 5 ft. For best results, use 10" diameter duct. Round, 1 ft. -
Page 9: Remove The Packaging
Installation Preparation REMOVE THE PACKAGING • Remove packages from the "V" shaped cardboard section. be removed. Grasp Remove shipping pads. the latch, pull the Duct • Lift the hood out of the box. Transition Wood IMPORTANT: Mounting Parts Hood Support •... -
Page 10: Step 1, Determine Ductwork And Wiring Locations
Installation Instructions • Use a level to draw the cooktop centerline location. Draw the line to ceiling height. 9-7/8" • Measure desired distance from the bottom of the hood to the cooking surface. Top of Hood Note: If you are installing the hood with duct covers, be sure to read “Using Duct Cover Accessories”... -
Page 11: Step 2A, Install Hood Onto Wall
Installation Instructions IMPORTANT: Framing must be capable of Install Transition Onto Top of Hood SKIP THIS STEP IF INSTALLING BENEATH A SOFFIT OR CABINET, • Locate at least 2 vertical studs at the wood support. Duct • Center the supplied wood support, left to right and below the Transition 20"... -
Page 12: Install Hood To Soffit Or Beneath Cabinets
If Bottom to Stud and Width At Is Recessed Keyhole Slots the Top Push Back Back to Wall ZV48R 23-9/16" 47-15/16" Wall ZV48R 17-9/16" 35-15/16" ZV36R 14-9/16" 29-15/16" Top View • Drive mounting screws into the studs until they protrude Front of Hood 2"... -
Page 13: Step 3 Connect Ductwork
Installation Instructions STEP 3 CONNECT DUCTWORK • Install ductwork, making connections in direction of Note: For easier handling, remove cardboard insert after • Secure joints in ductwork with sheetmetal screws. • Wrap all duct joints with duct tape for one duct cover is used, secure each piece together with an airtight seal. -
Page 14: Step 7 Install Filters
Installation Instructions STEP 7 INSTALL FILTERS • Drop grease tray into the hood. The rear tabs should engage the slots in the hood track. up and lift out. STEP 8 INSTALL BACKGROUND AND SHELF This hood can be installed with the warming shelf and backguard together or with the warming shelf or backguard alone. -
Page 15: Step 9, Install Shelf Only
Installation Instructions STEP 9 INSTALL SHELF "ONLY" • If installing the shelf alone, without the backguard, place shelf against the bottom of the hood and mark the screw hole locations "B" on the wall. • Drill two 1/8" pilot holes. •... - Page 16 Note: While performing installations described in this book, safety glasses or goggles should be worn. For Monogram local service in your area, call ® 1.800.444.1845. Note: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and 49-80152-7 GE Consumer &...
