Installation instructions

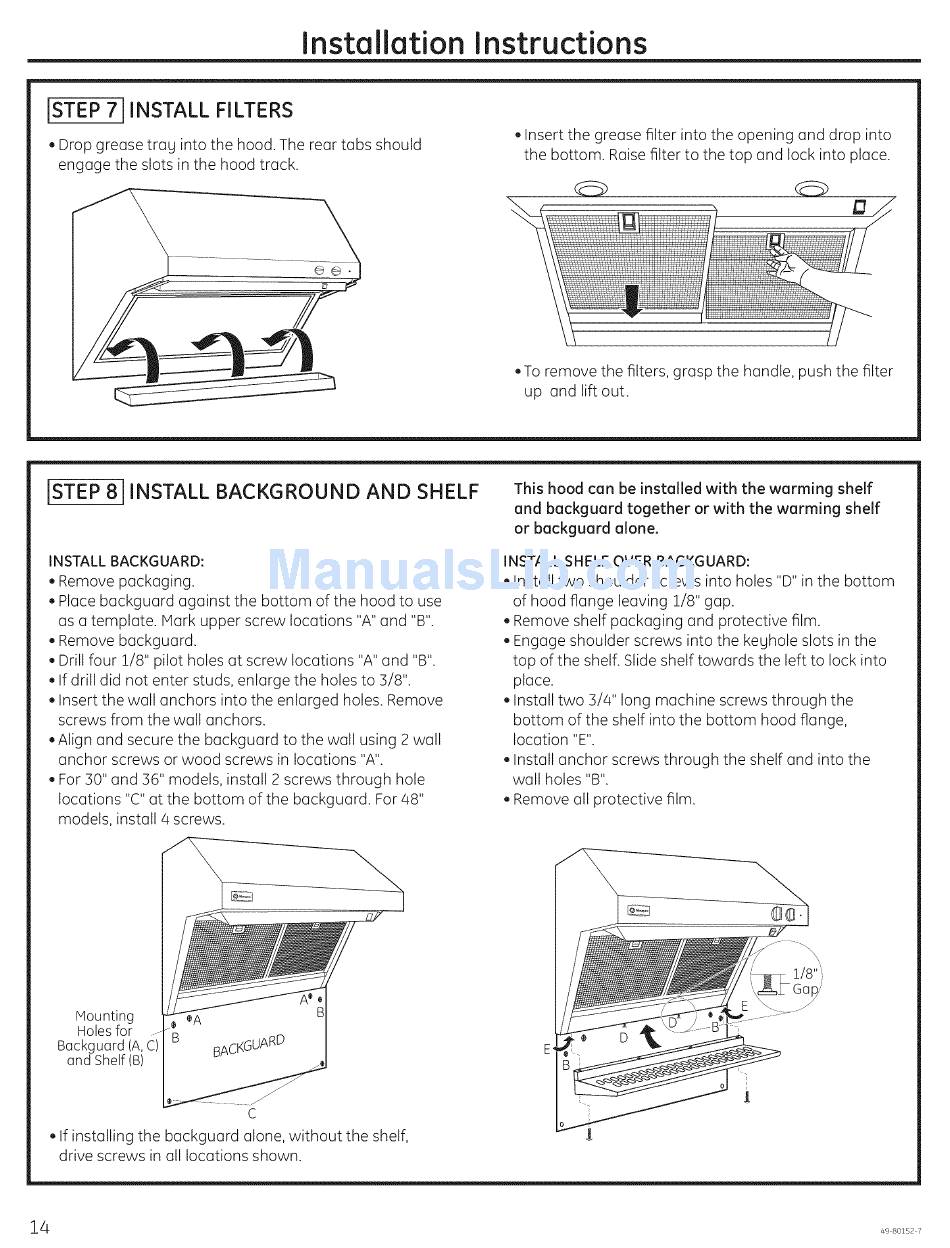

STEP 7 INSTALL FILTERS
. Drop grease trag into the hood. The rear tabs should
engage the slots in the hood track.
,, Insert the grease filter into the opening and drop into
the bottom. Raise filter to the top and lock into place.
,To remove the filters, grasp the handle, push the filter
up and lift out.
STEP 8 INSTALL BACKGROUND AND SHELF
INSTALLBACKGUARD:
. Remove packaging.
. Place backguard against the bottom of the hood to use
as a template. Mark upper screw locations "A" and "B".
. Remove backguard.
. Drill four 1/8" pilot holes at screw locations "A" and "B".
. If drill did not enter studs, enlarge the holes to 3/8".
. Insert the wall anchors into the enlarged holes. Remove
screws from the wall anchors.
. Align and secure the backguard to the wall using 2 wall
anchor screws or wood screws in locations "A".
. For 30" and 36" models, install 2 screws through hole
locations "C" at the bottom of the backguard. For 48"
models, install/4 screws.
This hood can be installed with the werming shelf
and backguard together or with the warming shelf
or backguard alone.
INSTALLSHELFOVERBACKGUARD:
. Install two shoulder screws into holes "D" in the bottom
of hood flange leaving 1/8" gap.
. Remove shelf packaging and protective film.
. Engage shoulder screws into the keghole slots in the
top of the shelf. Slide shelf towards the left to lock into
place.
. Install two 3/4" long machine screws through the
bottom of the shelf into the bottom hood flange,
location "E".
. Install anchor screws through the shelf and into the
wall holes "B".
. Remove all protective film.
Mounting ®A
Holes for B
Backguord (A,C) cKGUARO
and Shelf (B)
c
. If installing the buckguard alone, without the shelf,
drive screws in all locations shown.
