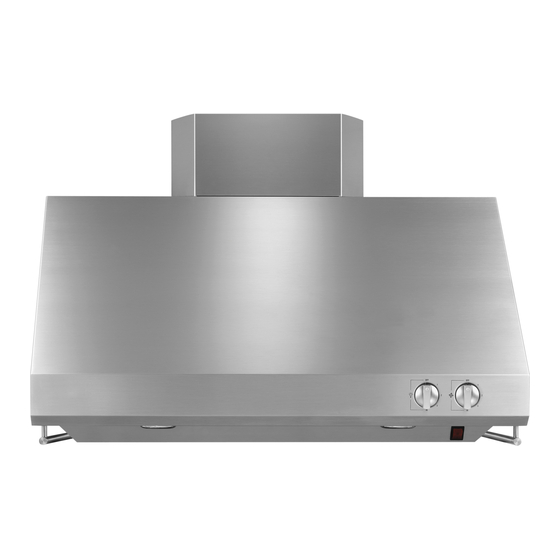

Monogram ZV48T Installation Instructions Manual
30", 36" and 48" professional vent hoods
Hide thumbs
Also See for ZV48T:
- Installation instructions manual (16 pages) ,
- Installation instructions manual (32 pages) ,
- Installation instructions manual (18 pages)
Subscribe to Our Youtube Channel
Related Manuals for Monogram ZV48T
Summary of Contents for Monogram ZV48T
- Page 1 Installation Instructions If you have questions, call 800.GE.CARES or visit our website at: www.monogram.com 30", 36" and 48" Professional Vent Hoods Models: ZV48T, ZV48S ZV36T, ZV36S ZV30T, ZV30S...
-
Page 2: Installation Instructions
Installation Instructions WARNING: BEFORE YOU BEGIN TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR Read these instructions completely and carefully. INJURY TO PERSONS, OBSERVE THE FOLLOWING: • I MPORTANT - Save these instructions for local A. Use this unit only in the manner intended by the inspector’s use. -
Page 3: Table Of Contents
PRODUCT DIMENSIONS 47-15/16" 12" 40" 12" 18" 18" 25" 47-15/16" 25" 47-15/16" Model ZV48S With Straight Sides Model ZV48T With Tapered Sides 28" 35-15/16" 12" 12" 18" 18" 25" 35-15/16" 35-15/16" 25" Model ZV36S With Straight Sides Model ZV36T With Tapered Sides 22"... -
Page 4: Installation Clearances
Soffit Installation SOFFIT 12" Duct Cover 30" MIN. 6" Duct Covers 36" MAX. Hood Model 6” Duct Cover Dimensions ZV48T, ZV48S ZX48DC6 6"H x 19-11/16"W x 11-7/8"D ZV36T, ZV36S ZX36DC6 6"H x 15-3/4"W x 11-7/8"D ZV30T, ZV30S ZX36DC6 6"H x 15-3/4"W x 11-7/8"D In this installation the ductwork running from the top of the hood will be concealed in the soffit or upper 12" Duct Covers cabinetry. -
Page 5: Installation Height, Duct Cover Accessories
Advance Planning DETERMINE INSTALLATION HEIGHT, DUCT COVER ACCESSORIES These vent hoods must be installed 30" min. to 36" *Possible max. above the standard 36" high cooking surface. Actual Hood The exact hood installation height is determined by Ceiling Installation 6" Duct 12" Duct Height Height Covers Covers the ceiling height. 1. Measure the exact ceiling height. 7' 11" 35" 2. Review the chart at right to determine the range 8' 0"... -
Page 6: Advance Planning
Advance Planning ADVANCE PLANNING POWER SUPPLY IMPORTANT - (Please read carefully) Ductwork Planning WARNING: • These vent hoods are equipped for 10" round ductwork. For best performance, use 10" round ductwork on the FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROP- 48" wide hoods. 30" and 36" hoods may be transitioned ERLY GROUNDED. to 8" round. AVERTISSEMENT – • This hood may be vented vertically through upper cabi- POUR DES RAI- nets, soffit or ceiling. A duct transition piece is supplied SONS DE SÉCURITÉ, CET APPAREIL DOIT ÊTRE CORRECTE- for vertical exhaust. Use locally supplied elbows to vent MENT MIS À LA TERRE. horizontally through the rear wall. • Determine the exact location of the vent hood. Remove house fuse or open circuit breaker before begin- • Plan the route for venting exhaust to the outdoors. ning installation. • Use the shortest and straightest duct route possible. -
Page 7: Duct Fittings
Advance Planning Equivalent Quantity Total DUCT FITTINGS Duct Piece Length* Used Length Use this chart to compute maximum 10" round permissable lengths for duct runs to to 8" round 5 ft. outdoors. Round, 1 ft. Note: Do not exceed maximum permissable straight (per foot length) equivalent lengths! Maximum recommended duct 3-1/4" x 10" 1 ft. -
Page 8: Tools And Materials Required
Installation Preparation TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED) Hammer Duct tape Electric or battery operated Key Hole Saw Wire cutter/ drill and 1/8", 3/8" bits stripper Duct Tape 10" round Pencil and tape measure 762Dia5 Wire Cutter/Stripper metal duct, Key Hole Saw length to Safety glasses Wire nuts suit installation. Phillips and flat Spirit level blade screwdrivers... -
Page 9: Parts Provided
Installation Preparation PARTS PROVIDED Locate the parts packed with the hood. Wood Support Duct Transition with Original Screws with Damper 2 Stainless Steel Grease Filters (3 filters with 48" models) 761Dia17 761Dia28 Heat Lamp (2 with 48" models) 490Dia66 2 Grease Filter Trays Allen Wrench 2 Implement Rods and 4 Stand-offs (3 supports with 48" models.) For Implement Rods 490Dia57 HARDWARE 761Dia30 PACKAGE 4 Phillips head screws to secure the transition to Locate and check con- the hood outlet on the top tents. -
Page 10: Step 1, Determine Ductwork And Wiring Locations
Installation Instructions STEP 1 DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS • Use a level to draw the cooktop centerline location. Draw the line to ceiling height. • Measure desired distance from the bottom of the hood to the cooking surface, 30" min. to 36" max. Note: If you are installing the hood with duct covers, be sure to read “Using Duct Cover Accessories” page 7. Exact installation height may be determined by use of one or more duct covers. • Use a level to draw a straight horizontal pencil line indi- cating the bottom of the hood. -
Page 11: Step 2A Install Hood Onto Wall
Installation Instructions STEP 2A INSTALL HOOD ONTO WALL IMPORTANT: Framing must be capable of supporting up to 150 lbs. Install Transition Onto Top of Hood SKIP THIS STEP IF INSTALLING BENEATH A SOFFIT OR CABINET, GO TO STEP 2B. • Locate at least 2 vertical studs at the wood support. Duct • Center the supplied wood support, left to right and below the Transition... -
Page 12: Step 2B, Install Hood Beneath Soffit
Dim. A. to accept mounting screws. Engage Top Add Shims 1/4" Gap “A” Centerline to Stud “B” Hood Width At Keyhole Slots If Bottom and Keyhole Slots the Top Is Recessed ZV48T 19-9/16" 40" Push Back Back ZV48S 23-9/16" 47-15/16" to Wall Wall ZV36T 13-9/16"... -
Page 13: Step 3 Connect Ductwork
Installation Instructions STEP 4 CONNECT ELECTRICAL STEP 3 CONNECT DUCTWORK • Install ductwork, making connections in direction of Verify that power is turned off at the source. airflow as illustrated. • Secure joints in ductwork with sheetmetal screws. WARNING: • Wrap all duct joints with duct tape for an airtight seal. If house wiring is not • Use duct tape to seal the flange connection. Reach 2-wire with a ground wire, a ground must be provided by inside the hood and push the damper up to be sure it the installer. -
Page 14: Step 6 Install Motor
Installation Instructions STEP 6 INSTALL MOTOR STEP 7 INSTALL FILTERS Outlet Attachment Spring Slot Clip • From the inside of the hood, slip motor into the attach- • Place filter drip trays into the rear of the hood. ment slot on the left. • Rotate motor upwards until it snaps into the spring clip on the right. 761Dia26 • Secure the motor to the hood with the machine screw and lock washer. (Screw is marked with red or blue paint.) Attachment Screw • Insert the grease filter into the opening and drop into the trays. 761Dia27 • To remove the filters, grasp the handle, push the filter up and lift out. Spring IMPORTANT: Connector Clip... -
Page 15: Step 8, Install Implement Rods
Installation Instructions STEP 8 INSTALL IMPLEMENT RODS Screw Stand-offs Into Hood Use Allen Wrench to Secure Rod to Stand-offs • Use a flat blade screwdriver to install stand-offs into the bottom of the hood. • Align implement rod to stand-offs with the screw hole towards the inside of the hood. Secure the rod to the stand-offs with the supplied Allen wrench. • Follow the same procedure on the opposite side. FINALIZE INSTALLATION • Install the supplied infrared bulb(s). - Page 16 Note: While performing installations described in this book, safety glasses or goggles should be worn. For Monogram local service in your area, call ® 1.800.444.1845. Note: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and specifications are subject to change without notice. Pub. No. 49-80151-5 GE Consumer & Industrial GE Appliances...
