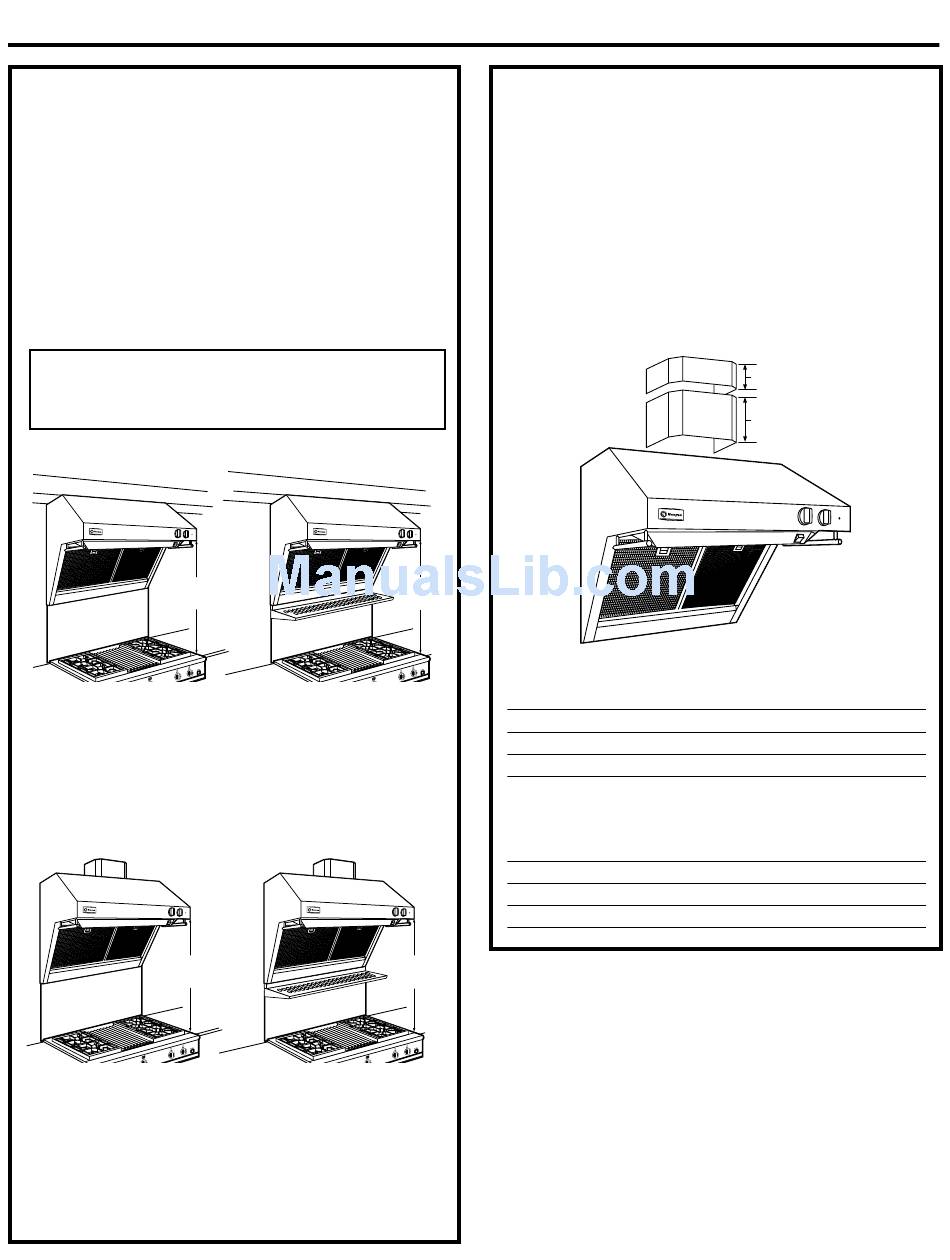

INSTALLATION CLEARANCES

These vent hoods are designed to be installed onto a
wall or beneath a soffit or cabinet.
Installation with Warming Shelf
• Hoods must be installed 32" Min., 38" Max over any
type cooking surface when warming shelf is used.
Installation without Warming Shelf
• Install these hoods 30" Min. to 36" Max. above the
cooking surface when installed over any professional
style cooktop or range.
• These hoods may be installed 24" min. above a gas or
electric drop-in style cooktop.
Note: Clearances may vary due to type of cooking product and
local codes. Check with local inspectors to be sure standard is
applicable.
Soffit Installation
SO FF IT
30" Min.
36" Max.
Install these hoods 30" Min. to
36" Max. over a professional
style cooktop or range.
In this installation the ductwork running from the top
of the hood will be concealed in the soffit or upper
cabinetry.
Wall Mount Installation
30" Min.
36" Max.
Install these hoods 30" Min. to
36" Max. over a professional
style cooktop or range.
For this installation, a decorative duct cover is avail-
able to conceal the ductwork running from the top of
the hood. Use of the duct cover requires special
consideration to the installation height above the
countertop.

Advance Planning

SO FF IT
32" Min.
38" Max.
Allow 32" min. and 38" max.
clearance above any cooking
surface when installed with shelf.
32" Min.
38" Max.
Allow 32" min. and 38" max.
clearance above any cooking
surface when installed with shelf.
OPTIONAL DUCT COVER
ACCESSORIES
Decorative duct covers are available in 6" and 12"
heights. Duct covers may be stacked, in various
combinations, to conceal the ductwork running from
the top of the hood to the ceiling.
• Before you begin, you should determine the installa-
tion height of the hood and order the correct size
duct cover. The duct covers should be ordered at the
same time as the vent hood and be on site before
installation. Order the duct cover corresponding to
your model.
6" Duct Covers
Hood Model 6" Duct Cover
ZV48R ZX48DC6
ZV36R ZX36DC6
ZV30R ZX36DC6
12" Duct Covers
Hood Model 12" Duct Cover
ZV48R ZX48DC12
ZV36R ZX36DC12
ZV30R ZX36DC12
4
6" Duct Cover
12" Duct Cover
Dimensions
6"H x 19-11/16"W x 11-7/8"D
6"H x 15-3/4"W x 11-7/8"D
6"H x 15-3/4"W x 11-7/8"D
Dimensions
12"H x 19-11/16"W x 11-7/8"D
12"H x 15-3/4"W x 11-7/8"D
12"H x 15-3/4"W x 11-7/8"D
