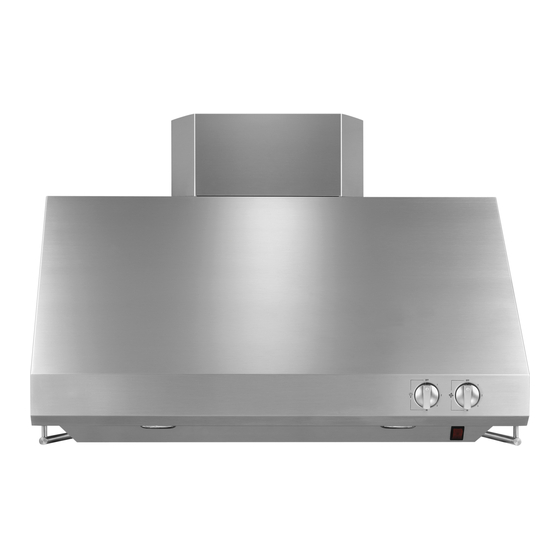

Monogram ZV48T Installation Instructions Manual
30", 36" and 48" professional vent hoods
Hide thumbs
Also See for ZV48T:
- Installation instructions manual (16 pages) ,
- Installation instructions manual (18 pages) ,
- Installation instructions manual (32 pages)
Subscribe to Our Youtube Channel
Related Manuals for Monogram ZV48T
Summary of Contents for Monogram ZV48T
- Page 1 Installation Instructions If you have questions, call 800.GE.CARES or visit our website at: www.monogram.com 30", 36" and 48" Professional Vent Hoods Models: ZV48T, ZV48S ZV36T, ZV36S ZV30T, ZV30S...
-
Page 2: Safety Information
Safety Information READ AND SAVE THESE INSTRUCTIONS BEFORE YOU BEGIN WARNING: TO REDUCE THE RISK OF Read these instructions completely and carefully. FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: IMPORTANT • Save these instructions for A. Use this unit only in the manner intended local inspector’s use. -
Page 3: Avant De Commencer
• Une quantité d’air suffisante est nécessaire à une com- Pour les services locaux Monogram dans votre secteur, bustion et une évacuation appropriées des gaz par le conduit d’évacuation (cheminée) de Pour les services Monogram au Canada, appelez le l’équipement à... -
Page 4: Table Of Contents
PRODUCT DIMENSIONS 47-15/16" 12" 40" 12" 18" 18" 47-15/16" 25" 25" 47-15/16" Model ZV48S With Straight Sides Model ZV48T With Tapered Sides 28" 35-15/16" 12" 12" 18" 18" 25" 35-15/16" 35-15/16" 25" Model ZV36S With Straight Sides Model ZV36T With Tapered Sides 22"... -
Page 5: Installation Clearances
SOFFIT 12" Duct Cover 30" MIN. 6" Duct Covers 36" MAX. Hood Model 6” Duct Cover Dimensions ZV48T, ZV48S ZX48DC6 6"H x 19-11/16"W x 11-7/8"D ZV36T, ZV36S ZX36DC6 6"H x 15-3/4"W x 11-7/8"D ZV30T, ZV30S ZX36DC6 6"H x 15-3/4"W x 11-7/8"D In this installation the ductwork running from the top cabinetry. -
Page 6: Determine Installation Height, Duct Cover Accessories
Advance Planning DETERMINE INSTALLATION HEIGHT, DUCT COVER ACCESSORIES These vent hoods must be installed 30” min. to 36” *Possible max. above the standard 36” high cooking surface Actual Hood Ceiling Installation 6" Duct when installed over any professional style Height Height Covers Covers... -
Page 7: Advance Planning
Advance Planning ADVANCE PLANNING POWER SUPPLY IMPORTANT - (Please read carefully) Ductwork Planning WARNING • These vent hoods are equipped for 10" round ductwork. For best performance, use 10" round ductwork on the FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE 48"... -
Page 8: Duct Fittings
Advance Planning Equivalent Quantity Total DUCT FITTINGS Duct Piece Length* Used Length Use this chart to compute maximum 10" round permissable lengths for duct runs to to 8" round 5 ft. outdoors. Round, 1 ft. Note: Do not exceed maximum permissable straight (per foot length) equivalent lengths! -
Page 9: Installation Preparation
Installation Preparation TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED) Hammer Duct tape Electric or battery operated Key Hole Saw Wire cutter/ drill and 1/8", 3/8" bits stripper 10" round Pencil and tape measure metal duct, length to Safety glasses Wire nuts suit installation. -
Page 10: Parts Provided
Installation Preparation PARTS PROVIDED Locate the parts packed with the hood. Wood Support Duct Transition with Original Screws with Damper 2 Stainless Steel Grease Filters Heat Lamp (2 with 48" models) 2 Grease Filter Trays Allen Wrench 2 Implement Rods and 4 Stand-offs (3 supports with 48"... -
Page 11: Step 1, Determine Ductwork And Wiring Locations
Installation Instructions • Use a level to draw the cooktop centerline location. Draw the line to ceiling height. • Measure desired distance from the bottom of the hood to the cooking surface, 30" min. to 36" max. Note: If you are installing the hood with duct covers, be sure to read “Using Duct Cover Accessories”... -
Page 12: Step 2A, Install Hood Onto Wall
Installation Instructions IMPORTANT: Framing must be capable of Install Transition Onto Top of Hood SKIP THIS STEP IF INSTALLING BENEATH A SOFFIT OR CABINET, • Locate at least 2 vertical studs at the wood support. Duct • Center the supplied wood support, left to right and below the Transition 15-3/8"... -
Page 13: Install Hood To Soffit Or Beneath Cabinets
Dim. A. to accept mounting screws. Engage Top Add Shims “A” Centerline to Stud “B” Hood Width At 1/4" Gap Keyhole Slots If Bottom and Keyhole Slots the Top Is Recessed ZV48T 19-9/16" 40" Push Back Back ZV48S 23-9/16" 47-15/16" to Wall Wall ZV36T 13-9/16"... -
Page 14: Step 3 Connect Ductwork
Installation Instructions STEP 3 CONNECT DUCTWORK • Install ductwork, making connections in direction of Note: For easier handling, remove cardboard insert after • Secure joints in ductwork with sheetmetal screws. • Wrap all duct joints with duct tape for an airtight seal. one duct cover is used, secure each piece together with inside the hood and push the damper up to be sure it screws provided. -
Page 15: Step 7, Install Filters
Installation Instructions STEP 7 INSTALL FILTERS STEP 8 INSTALL IMPLEMENT RODS Screw Stand-offs Into Hood Use Allen Wrench to Secure Rod to Stand-offs bottom of the hood. • Align implement rod to stand-offs with the screw hole the trays. towards the inside of the hood. Secure the rod to the stand-offs with the supplied Allen wrench. - Page 16 Note: While performing installations described in this book, safety glasses or goggles should be worn. For Monogram local service in your area, call ® 1.800.444.1845. Note: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and 49-80151-8 GE Consumer &...
