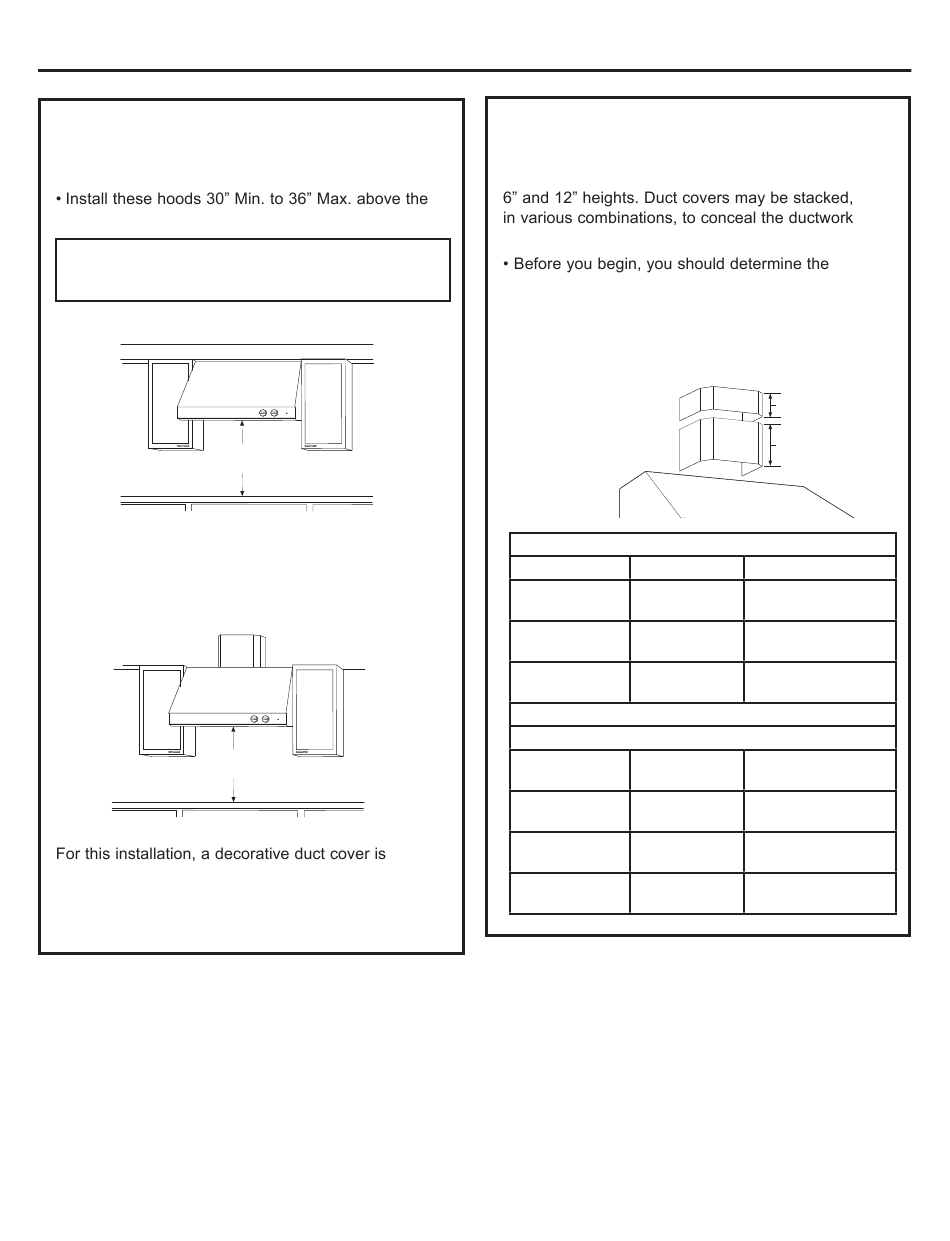

INSTALLATION CLEARANCES

These vent hoods are designed to be installed onto a
wall or beneath a soffit or cabinet.
cooking surface.
NOTE: Clearances may vary due to type of cooking
product and local codes. Check with local inspectors
to be sure standard is applicable.
Soffit Installation
30" MIN.
36" MAX.
In this installation the ductwork running from the top
of the hood will be concealed in the soffit or upper
cabinetry.
Wall Mount Installation
30" MIN.
36" MAX.
available to conceal the ductwork running from the
top of the hood. Use of the duct cover requires
special consideration to the installation height above
the countertop.
8

Advance Planning

SOFFIT
OPTIONAL DUCT COVER
ACCESSORIES
Standard decorative duct covers are available in
running from the top of the hood to the ceiling.
installation height of the hood and order the
correct size duct cover. The duct covers should
be ordered at the same time as the vent hood and
be on site before installation. Order the duct cover
corresponding to your model.
Standard Duct
Covers
6" Duct Covers
Hood Model 6" Duct Cover
ZV48T, ZV48S ZX48DC6J
ZV36T, ZV36S ZX36DC6J
ZV30T, ZV30S ZX36DC6J
12" Duct Covers
Hood Model 12" Duct
Cover
ZV48T, ZV48S ZX48DC12J
ZV36T, ZV36S ZX36DC12J
ZV30T, ZV30S ZX36DC12J
6" Duct Cover
12" Duct Cover
Dimensions
6"H x 19-11/16"W x
11-7/8"D
6"H x 15-3/4"W x
11-7/8"D
6"H x 15-3/4"W x
11-7/8"D
Dimensions
12"H x 19-11/16"W
x 11-7/8"D
12"H x 15-3/4"W x
11-7/8"D
12"H x 15-3/4"W x
11-7/8"D
31-2000859 Rev. 0
