Installation instructions

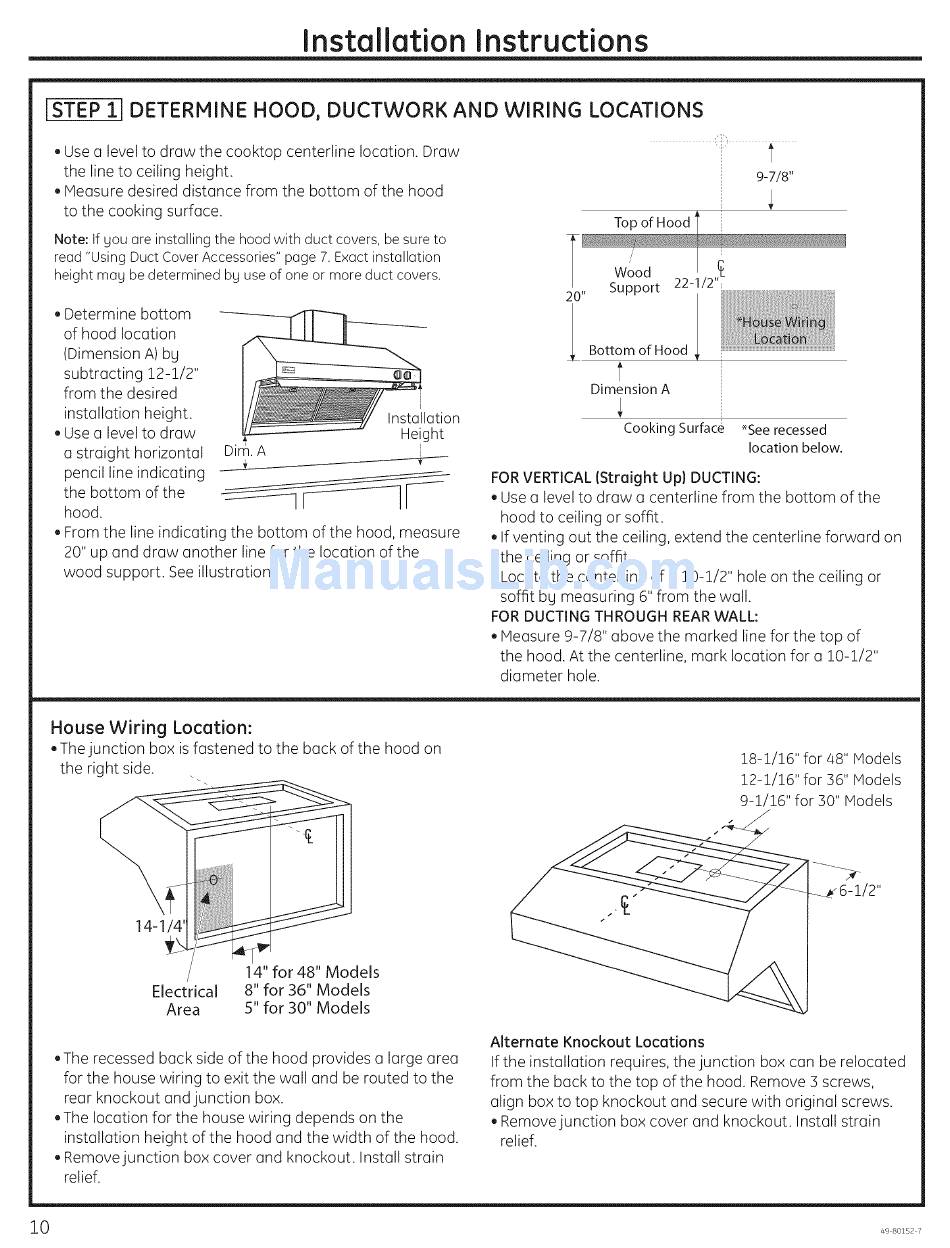

ISTEP 11 DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS
, Use a level to draw the cooktop centerline location. Draw
the line to ceiling height.
, Measure desired distance from the bottom of the hood
to the cooking surface.
Note: If gou are installing the hood with duct covers, be sure to
read "Using Duct Cover Accessories" page 7. Exact installation
height mag be determined bg use of one or more duct covers.
, Determine bottom
of hood location
(Dimension A) bg
subtracting 12-1/2"
from the desired
installation height. Installation
, Use a level to draw Height
a straight horizontal Dim. A :_
pencil line indicating ___----------i-_
the bottom of the
hood.
, From the line indicating the bottom of the hood, measure
20" up and draw another line for the location of the
wood support. See illustration.
Wood
20" Support 22-1/2":
/
Bottom of Hood _
T
Dimension A
Cooking Surface *See recessed
location below.
FORVERTICAL{Straight Up} DUCTING:
, Use a level to draw a centerline from the bottom of the
hood to ceiling or soffit.
, If venting out the ceiling, extend the centerline forward on
the ceiling or soffit.
, Locate the centerline of a 10-1/2" hole on the ceiling or
soffit bg measuring 6" from the wall.
FOR DUCTING THROUGH REARWALL:
, Measure 9-7/8" above the marked line for the top of
the hood. At the centerline, mark location for a 10-1/2"
diameter hole.
House Wiring Location:
,The junction box is fastened to the back of the hood on
the right side.
!8-!/!6" for/48" Models
!2-1/!6" for 36" Models
9-1/16" for 30" Models
14-1/4'
14" for 48" Models
Electrical 8" for 36" Models
Area 5" for 30" Models
,The recessed back side of the hood provides a large area
for the house wiring to exit the wall and be routed to the
rear knockout and junction box.
,The location for the house wiring depends on the
installation height of the hood and the width of the hood.
, Remove junction box cover and knockout. Install strain
relief.
Alternate Knockout Locutions
If the installation requires, the junction box can be relocated
from the back to the top of the hood. Remove 3 screws,
align box to top knockout and secure with original screws.
, Removejunction box cover and knockout. Install strain
relief.
