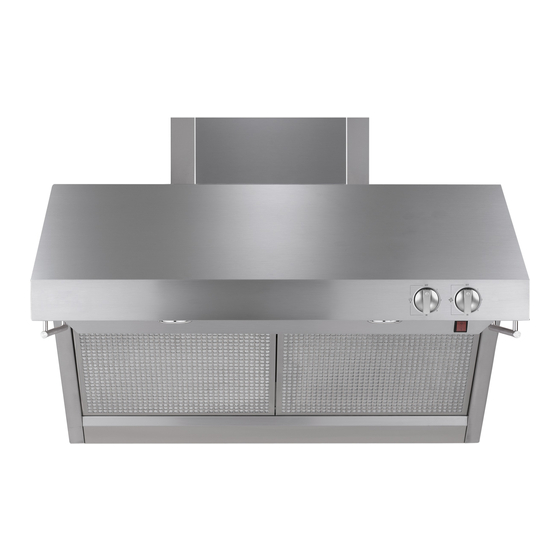

Monogram ZV48R Installation Instructions Manual
30", 36" and 48" restaurant style vent hoods
Hide thumbs
Also See for ZV48R:
- Installation instructions manual (32 pages) ,
- Installation instructions manual (16 pages) ,
- Installation instructions manual (16 pages)
Related Manuals for Monogram ZV48R
Summary of Contents for Monogram ZV48R
-
Page 1: Installation Instructions
Installation Instructions If you have questions, call 800-GE-CARES or visit our website at: www.monogram.com 30", 36" and 48" Restaurant Style Vent Hoods Models: ZV48R ZV36R ZV30R Monogram. ® We bring good things to life. -
Page 2: Before You Begin
Installation Instructions BEFORE YOU BEGIN WARNING: TO REDUCE THE RISK OF FIRE, ELECTRICAL Read these instructions completely and carefully. SHOCK OR INJURY TO PERSONS, OBSERVE THE • IMPORTANT - Save these instructions for FOLLOWING: local inspector’s use. A. Use this unit only in the manner intended by the •... -
Page 3: Table Of Contents
22-1/2" Hoods may be a r d B a c k g u installed with the shelf or backguard alone, or with both as shown. 47-15/16" 25" Model ZV48R 29-15/16" 12" 12" 35-15/16" 22-1/2" 22-1/2" 29-15/16" 35-15/16" 25" 25"... -
Page 4: Installation Clearances
6" Duct Covers Hood Model 6” Duct Cover Dimensions Allow 32" min. and 38" max. Install these hoods 30" Min. to ZV48R ZX48DC6 6"H x 19-11/16"W x 11-7/8"D clearance above any cooking 36" Max. over a professional surface when installed with shelf. -
Page 5: Power Supply
Advance Planning ADVANCE PLANNING POWER SUPPLY Ductwork Planning IMPORTANT - (Please read carefully) • These vent hoods are equipped for 10" round WARNING: ductwork. In most instances they may be transitioned to 8" round. FOR PERSONAL SAFETY, THIS APPLIANCE MUST •... -
Page 6: Duct Fittings
Advance Planning Total DUCT FITTINGS Equivalent Quantity Equivalent Duct Piece Dimensions Length* Used Length Use this chart to compute maximum Round, 1 ft. permissable lengths for duct runs to straight (per foot outdoors. length) 1 ft. Note: Do not exceed maximum permissable 3-1/4"... -
Page 7: Using Duct Cover Accessories
Advance Planning USING DUCT COVER ACCESSORIES We recommend that the vent hood and decorative To avoid unsightly gaps, plan the hood installation height for duct cover use. Use the following formula duct cover (if used) be on site before final framing and to calculate the need for one or more duct covers wall finishing. -
Page 8: Installation Preparation
Installation Preparation TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED) • 1/4" pivoting hex socket Additional Materials: Tools • Flashlight • 120V 60Hz. 15 or 20 Amp, 2 wire with ground. • Pencil and tape measure • Metal Snips Properly grounded branch circuit. •... -
Page 9: Parts Provided
Installation Preparation PARTS PROVIDED Locate the parts packed with the hood. Wood Support Duct Transition with Original Screws with Damper 2 Stainless Steel Grease Filters (3 filters with 48" models) Heat Lamp (2 with 48" models) Backguard Allen Wrench 2 Implement Rods and 4 Stand-offs For Implement Rods Warming Shelf HARDWARE... -
Page 10: Step 1, Determine Ductwork And Wiring Locations
Installation Instructions STEP 1 DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS • Use a level to draw the cooktop centerline location. Top of Hood Draw the line to ceiling height. • Measure desired distance from the bottom of the hood to the cooking surface. Wood 22-1/2"... -
Page 11: Step 2A Install Hood Onto Wall
Installation Instructions STEP 2A INSTALL HOOD ONTO WALL IMPORTANT: Framing must be capable of supporting up to 150 lbs. Install Transition Onto Top of Hood SKIP THIS STEP IF INSTALLING BENEATH A SOFFIT OR CABINET, GO TO STEP 2B. • Locate at least 2 vertical studs at the wood support. Duct •... -
Page 12: Step 2B, Install Hood Beneath Soffit
Is Recessed “A” “B” Centerline to Stud Hood Width Push Back Back and Keyhole Slots At the Top to Wall Wall ZV48R 23-9/16" 47-15/16" ZV36R 17-9/16" 35-15/16" ZV30R 14-9/16" 29-15/16" Top View • Drive mounting screws into the studs until they Front of Hood 2"... -
Page 13: Step 3 Connect Ductwork
Installation Instructions STEP 3 CONNECT DUCTWORK STEP 5 INSTALL DUCT COVERS • Install ductwork, making connections in direction of Note: For easier handling, remove cardboard insert airflow as illustrated. after film is peeled off. • Secure joints in ductwork with sheetmetal screws. •... -
Page 14: Step 7 Install Filters
Installation Instructions STEP 7 INSTALL FILTERS • Insert the filter into the opening and drop into the • To remove the filters, grasp the latch, pull the filter bottom. Raise filter to the top of the opening and up and lift out. lock into place. -
Page 15: Step 9, Install Shelf Only
Installation Instructions STEP 10 INSTALL IMPLEMENT STEP 9 INSTALL SHELF “ONLY” RODS • Remove shelf packaging and protective film. • If installing the shelf alone, without the backguard, place shelf against the bottom of the hood and mark screw hole locations “B” on the wall. •... - Page 16 Note: While performing installations described in this book, safety glasses or goggles should be worn. ® For Monogram local service in your area, call 1-800-444-1845. Note: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and specifications are subject to change without notice.
