KanexPro HDSC61D-4K User Manual

6-input collaboration switcher & scaler with 4k hdmi output
Hide thumbs Also See for HDSC61D-4K:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

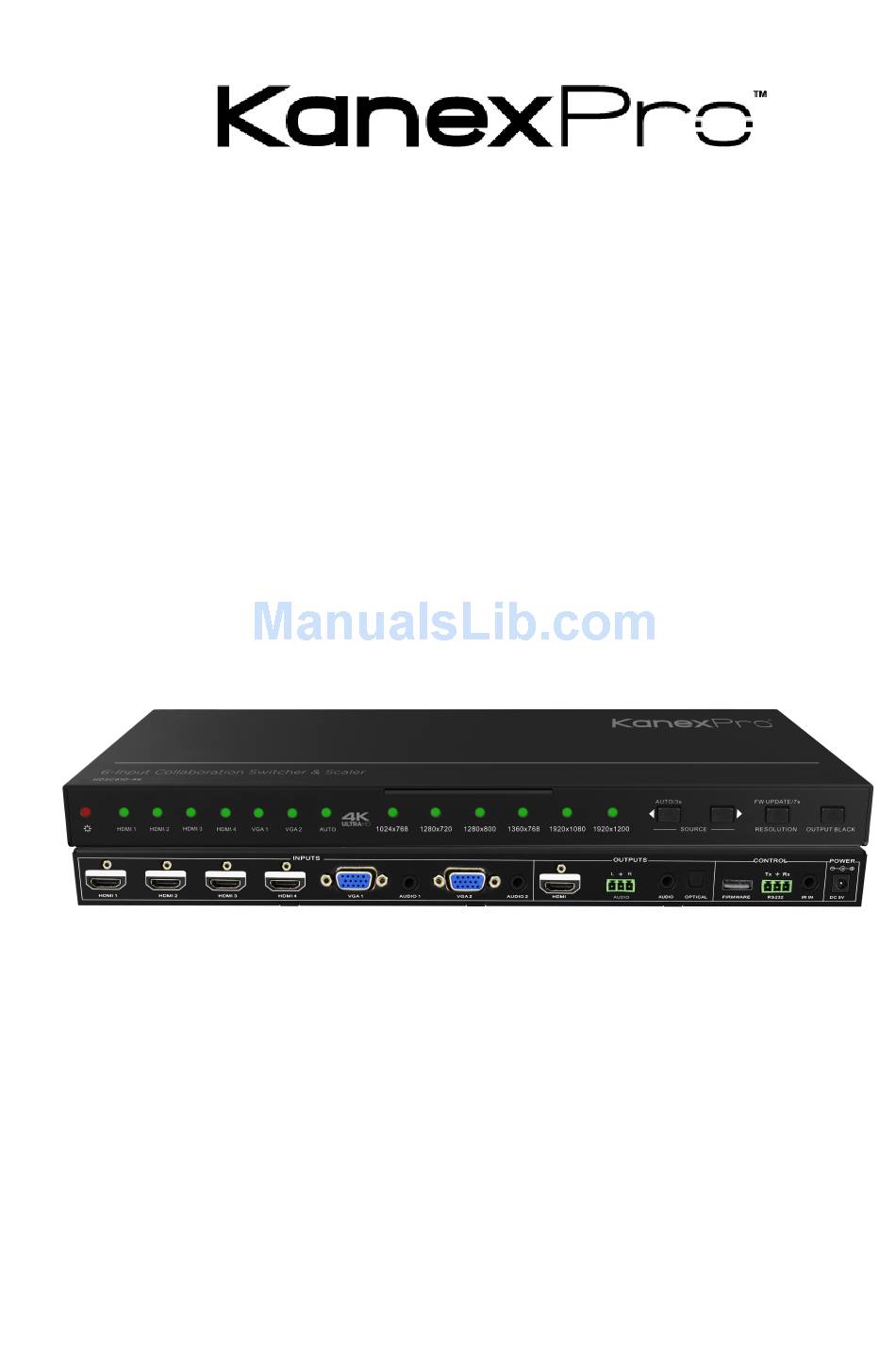

HDSC61D-4K
6-Input Collaboration Switcher & Scaler with
4K HDMI Output
All Rights Reserved
Version: HDSC61D-4K_2015V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDSC61D-4K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KanexPro HDSC61D-4K

Summary of Contents for KanexPro HDSC61D-4K

  • Page 1 HDSC61D-4K 6-Input Collaboration Switcher & Scaler with 4K HDMI Output All Rights Reserved Version: HDSC61D-4K_2015V1.1...

  • Page 2: Fcc Statement

    Compact Scaler Switcher 6x1 Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till April 2015.

  • Page 3: Safety Precautions

    Compact Scaler Switcher 6x1 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l...

  • Page 4: Table Of Contents

    Compact Scaler Switcher 6x1 Contents   1. Introduction ........................1   1.1 Introduction to Compact Scaler Switcher ... Error! Bookmark not defined.   1.2 Features ......................1   1.3 Package List ....................... 1   2. Panel Description ......................2   2.1 Front Panel ......................

  • Page 5: Introduction

    1. Introduction 1.1 The HDSC61D-4K Collaboration Switcher & Scaler The KanexPro HDSC61D-4K is a compact 6x1 switcher with 6 video inputs (4 HDMI, 2 VGA), 2 auxiliary audio inputs (switched following VGA), 1 HDMI output and 3 audio outputs (dual-mono analog audio, 3.5mm stereo audio, and optical audio).

  • Page 6: Panel Description

    Compact Scaler Switcher 6x1 l 1 x IR Remote (Cell battery is not included) l 1 x User manual Notes： Confirm all the accessories are included, if not, please contact with the dealers. 2. Panel Description 2.1 Front Panel Name Description Indicator for power status l...

  • Page 7: Rear Panel

    Compact Scaler Switcher 6x1 LED blinking when the system is loading firmware Press to switch on/off audio Video output. All LED turn off OUTPUT BLACK ⑦ except power LED when switch off output. Note: Pictures shown in this manual are for reference only; different model and specifications are subject to real product.

  • Page 8: System Diagram

    Compact Scaler Switcher 6x1 2) All of the power switches, plugs, sockets and power cords should be insulated and safe. 3) All devices should be connected before power on. 3.2 System Diagram Figure 3- 1 Connection Diagram 3.3 Connection Procedures Step1.

  • Page 9: System Operations

    Compact Scaler Switcher 6x1 education, command & control center and smart home etc. 4. System Operations 4.1 Front Panel Button Control Front panel buttons can be used for source selections, output resolution adjusting, front panel buttons management, software updating and output screen setting. (Please refer to chapter 2.1).

  • Page 10: Rs232 Control

    Compact Scaler Switcher 6x1 Operation Examples: l Connect HDMI2, HDMI4, and VGA2 ports with source devices, select HDMI4 to outputs. l Press and hold for the front button SOURCE/AUTO for 3 seconds or more to enter in auto-switching mode. l Connect HDMI3 with a source device, and then it will choose HDMI3 to output. l...

  • Page 11: Rs232 Communication Commands

    Compact Scaler Switcher 6x1 Monitoring area indicates whether the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, only then will you be able to send command in Command Sending Area. 4.2.3 RS232 Communication Commands Baud rate: 9600 Data bit: 8...
  • Page 12 Compact Scaler Switcher 6x1 50619% Change the resolution to 1360X 768 Resolution: 1360x768 Change the resolution to1920X1200 50620% Resolution: 1920x1200 WUXGA 50626% Change the resolution to 1024X768 XGA Resolution: 1024x768 50627% Change the resolution to 1280X720 720P Resolution: 1280x720 Change the resolution to 1280X800 50628% Resolution: 1280x800 WXGA...
  • Page 13 Compact Scaler Switcher 6x1 Auto-adjust the input parameter for (VGA 50606% VGA Input Auto only) Check the system version Version Vx.x.x 50699% 50697% Exit standby mode Wake up! 50797% Enter standby mode Go to standby! 50698% Software update 50617% Reset to factory defaults Factory Reset Change the horizontal polarity to the 50707%...
  • Page 14 Compact Scaler Switcher 6x1 50636% Check the brightness Brightness: xx 50637% Check the contrast Contrast: xx 50638% Check the saturation Saturation: xx 50639% Check sharpness Sharpness: xx 50640% Check the color temperature Color Temperature: xx Embedded Audio Output: 50652% Check Digital audio output status enable/disable 1920x1080 50709%...

  • Page 15: Ir Control

    Compact Scaler Switcher 6x1 flash disk. Step2. Plug the USB flash disk to the SC61E Firmware port on its rear panel. Step3. Send command 50709% to read EDID data from U flash disk, then, send command to update EDID. 4.3 IR control The unit enables to use the IR remote to control it.

  • Page 16: Specification

    Compact Scaler Switcher 6x1 Step3. Press the button “RESOLUTION/FW UPDATE” for 7 seconds or more to update the firmware automatically. Or send command 50698% to update software. 5. Specification Video Input Video Output Input 4 HDMI, 2 VGA Output 1 HDMI Input 4 female HDMI (Type-A) Output...
  • Page 17 Compact Scaler Switcher 6x1 Note: Compact Scaler Switcher supports 4K&1080p 3D HDMI signal; please adopt quality HDMI cables compliant with HDMI1.4 for reliable transmission when connecting Supported Input Resolutions Format Resolution 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@42Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1024x768@85Hz, 1152x864@75Hz, 1280x768@60Hz, 1280x768@75Hz, 1280x768@85Hz, 1280x960@60Hz, 1280x960@85Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x1024@85Hz, 1365x1024@60Hz, 1365x1024@60Hz,...

  • Page 18: Panel Drawing

    Compact Scaler Switcher 6x1 6. Panel Drawing...

  • Page 19: Troubleshooting & Maintenance

    Cannot control the The device has already Send it to authorized dealer for device been broken. repairing. If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support at support@kanexpro.com...

  • Page 20: After-Sales Service

    3) Technical Support: Email to our after-sales department or make a call, please inform us the following information about your cases. l Product version and name. l Detailed failure situations. l The formation of the cases. Contact KanexPro directly at 888-975-1368 or email us at support@kanexpro.com.
