- Page 1 EXT-AVIPH264TX USER MANUAL H.264 HDMI® Encoder over IP w/ POE & RS-232 All Rights Reserved Version: Ext-AVIPH264TX_2017V1.0...
-
Page 2: Fcc Statement
KANEXPRO EXT-AVIPH264TX Preface Read this user manual carefully before using this product. Pictures displayed in this manual are for reference only. Different models and specifications are subject to the actual product. This manual is only for operational instruction, not for any maintenance usage. -
Page 3: Safety Precautions
KANEXPRO EXT-AVIPH264TX SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment. -
Page 4: Table Of Contents
KANEXPRO EXT-AVIPH264TX Table of Contents ………………………………………………………………………….5 1. Introduction ……………………………………………….5 1.1 Introduction to EXT-AVIPH264TX ……………………………………………………………………..5 1.2 Features 1.3 Package Content……………………………………………………………………………….. ………………………………………………………………………..6 2. Specifications …………………………………………………………………….8 3. Panel Description ……………………………………………………………………..8 3.1 TX Panel ……………………………………………………………………..8 3.2 RX Panel 3.3 Panel Drawing………………………………………………………………………………… …………………………………………………………11 4. Installation and Configuration ………………………………………………………………18... -
Page 5: Introduction
Introduction 1.1 Introduction to EXT-AVIP264TX The KanexPro EXT-AVIPH264TX is an AV over IP Encoder with an HDMI input and Ethernet out which uses advanced H.264 compression algorithm to transmit full HD 1080p from HDMI based sources with less bandwidth over LAN network. -
Page 6: Specifications
KANEXPRO EXT-AVIPH264TX 11). 2x Power adapter 5V 1A 2. Specifications Performance Protocol H.264 encoder over TCP/IP Support Video format 480i/480p/576i/576p/720p/1080i/1080 p@60HZ Support Audio format LPCM, Audio sampling rate 48KHZ Streaming Bit Rate 15Mbps HDCP Compliant IR Frequency 38 -56 KHZ... - Page 7 KANEXPRO EXT-AVIPH264TX 119x79.5x28mm Net Weight TX: 0.28KG; RX:0.28KG Supported input resolution Frequency Resolution 576i 576P 50Hz 720P 1080P 1080i 480i 480P 60Hz/59.94Hz 720P 1080P 30Hz/29.97Hz 1080P 24Hz 1080P 25Hz 1080P VESA Resolution Frequency Resolution 576i 576P 50Hz 720P 1080P 1080i...
-
Page 8: Panel Description

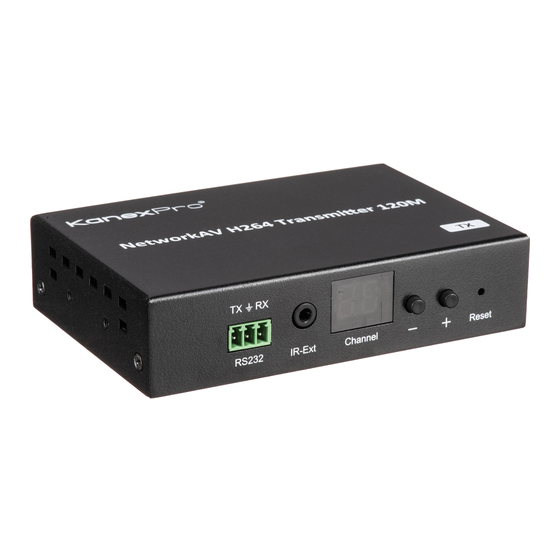

KANEXPRO EXT-AVIPH264TX 3. Panel description 3.1 TX 1) DC 5V 1A input 2) Green indicator of data status 3) Red indicator of power input 4) HDMI output for local display 5) HDMI input 6) CAT5e/6 output 7) IR-TX 8) RS232 port... - Page 9 KANEXPRO EXT-AVIPH264TX 1) DC 5V 1A input 2) Green indicator of data status 3) Red indicator of power input 4) HDMI output 5) CAT5e/6 input 6) IR-RX 7) RS232 port 8) IR-Ext 9) LED to show the Group ID 10) Press the button for the previous Group ID...
-
Page 10: Panel Drawing
KANEXPRO EXT-AVIPH264TX 3.3 Panel Drawing Transmitter Receiver... -
Page 11: Installation And Configuration
KANEXPRO EXT-AVIPH264TX 4. Installation and Configuration Setup HDMI TX and RX When connecting point to point, no need to configure TX and RX, When connecting point to many, many to point and many to many, please make sure every TX and RX has unique IP and MAC address, every TX has unique group ID. - Page 12 KANEXPRO EXT-AVIPH264TX The default IP address of the RX is 192.168.1.12 Step 1: Make sure the Transmitter and PC are in the same domain. Access the Network Setting Control Panel in Windows and locate your Lan connection. Under Windows 7, this can be done by clicking Start >...
- Page 13 KANEXPRO EXT-AVIPH264TX Step 6: Restart the extender after resting the IP Address. Choose the Group ID and Baud Rate by Remote controller (When the LED shows “00”, it’s ready to work) ① Press the button, switch to choose the Group ID or Baud rate.
- Page 14 KANEXPRO EXT-AVIPH264TX TX 1 RX 1 Set the group ID for TX and RX via web browser Step 1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1) Step 2: Use an Ethernet Cable to connect the PC (or laptop) and the Extender.
- Page 15 KANEXPRO EXT-AVIPH264TX 3. Connect another HDMI display and the HDMI Receiver unit with HDMI Cable. 4. Connect the Transmitter and Receiver with Cat5e/6 cable 5. Connect the IR TX cable into “IR TX” port of the transmitter; Connect the IR RX cable into “IR RX”...
- Page 16 KANEXPRO EXT-AVIPH264TX 3. Connect the HDMI looping output of the Transmitter to the local HDMI Display. 4. Connect the transmitter and the switch/router with cat5e or cat6 cable. 5. Connect all the Receivers and the switch/ router with Cat5e/6 cable.
-
Page 17: Rs232 And Baud Rate
KANEXPRO EXT-AVIPH264TX 10. Choose the source by Remote controller or Web browser as instructed above (5.1.2) ※ Daisy chain the switch if its RJ45 port is not enough. ※ The quantity of Transmitter is no more than 64 pcs. ※ The total quantity of Transmitter and Receiver is less than 256 pcs. -
Page 18: Firmware Update
KANEXPRO EXT-AVIPH264TX from TX to RX or from RX to TX, connect to your RS232 devices, such as PC, IP Camera, Creston control panel, Smart Matrix, printer and Scanner and so on. It works when TX, RX and your RS232 devices baud rate is the same. -
Page 19: Pc Tool Instructions
KANEXPRO EXT-AVIPH264TX 7. PC Tool Instructions Step 1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1) Step 2: Open the PC Tool. Step 3: Click “Start Scan”. - Page 20 KANEXPRO EXT-AVIPH264TX Step 4: Choose the TX or RX Name. 7.1 Firmware Upgrade Upgrade for TX Step 1: Click “Firmware Upgrade”.
- Page 21 KANEXPRO EXT-AVIPH264TX Step 2: Click “Upgrade Encoder FW” first.
- Page 22 KANEXPRO EXT-AVIPH264TX Step 3: After the step 2 is finished, click “Firmware Upgrade” again, then click “Upgrade TX FW”. Upgrade for RX Step 1: Click “Firmware Upgrade”.
- Page 23 KANEXPRO EXT-AVIPH264TX Step 2: Click “Upgrade Rx FW”.
- Page 24 KANEXPRO EXT-AVIPH264TX 7.2 Other settings Step 1: Change the IP/Netmask/Gateway/DHCP/Uart Baudrate/Group ID/Mac Address/ Device name on the PC tool interface. Step 2: Click “Update”, after “Update” is finished, click “Reboot”.
-
Page 25: After-Sales Service Warranty
KANEXPRO EXT-AVIPH264TX 7.2 Click “Factory Reset” on TX or RX. 8. After-sales Service and Warranty. If problems arise when operating the device, please refer to this user manual. - Page 26 Product version and name. Detailed failure situations. The formation of the cases. Remarks: For any questions or problems, please try to get help from your local distributor or contact kanexpro.com or call us at 888-975-1368 for further support.
-
Page 27: How To Use Vlc
KANEXPRO EXT-AVIPH264TX 9. How to use VLC Step1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1) Step2: Connect the HDMI Source without HDCP with the transmitter and power on the device. Step3: Connect the transmitter to the PC. - Page 28 KANEXPRO EXT-AVIPH264TX Step 6: Click “Next”. Step 7: Choose “RTP / MPEC Transport Stream” or "UDP".
- Page 29 KANEXPRO EXT-AVIPH264TX Step 8: Click “Next”. Step 9: Click “Stream”.
-
Page 30: Warranty
KANEXPRO EXT-AVIPH264TX Step 10: Click “Open Network Stream”, then you can click “Play” to view the video. 10. WARRANTY... - Page 31 B. CUSTOMER REMEDIES KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro option, either return of the price paid for the product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
- Page 32 KANEXPRO EXT-AVIPH264TX any other pecuniary loss) arising out of the use of or inability to use this product, even if KanexPro has been advised of the possibility of such damages. 1405 Pioneer Street Brea, CA 92821...
