  • Page 1 HAECOAX2 - 4K Compliant Audio De-Embedder Extract multi-channel audio from HDMI 4K Devices User manual...

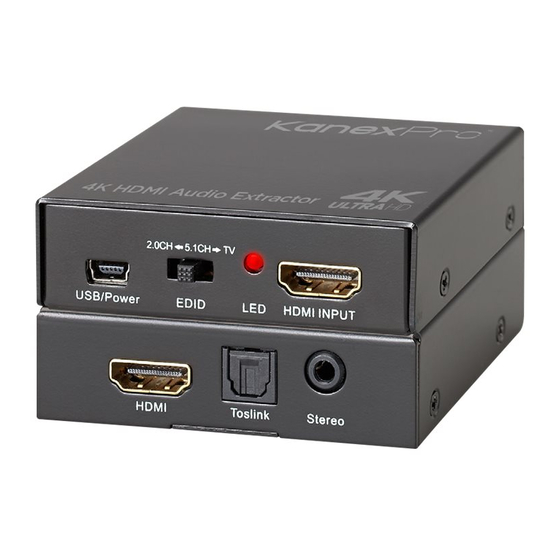

  • Page 2  Introduction The KanexPro HAECOAX2 is a 4K compliant audio de-embedder that extracts the audio from HDMI signal and provides outputs for analog stereo using 3.5mm head phone jack and digital TOSLINK audio. It will also De-embed audio with or without HDMI output connected to a display.
  • Page 3  Features  HDMI Audio De-embedding – Analog Stereo & TOSLINK digital Audio  Supports 4K, 1080p/60 and 3D  De-embeds audio with or without HDMI output connected to a display  Supports Color depths of 8,10, 12 & 16 bits ...
  • Page 4  Package 1 x HDMI Audio De-embedder 1 x USB Cable (standard to mini) Operation Manual  Specifications Frequency/Bandwidth: 2.97Gbps Input Ports: 1 x HDMI Female ports. Output port: 1 x HDMI Female port, 1x Toslink, 1x 3.5mm stereo jack HDMI Audio Output: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD Power Supply:...
  • Page 5 Dimensions (mm): 60 (D) x 55 (W) x 20 (H) Weight (g): 40 (1.4 ounces) Operating Temperature: 0˚C ~ 40˚C / 32˚F ~ 104˚F Storage Temperature: -20˚C ~ 60˚C / -4˚F ~ 140˚F  Operation controls and Functions USB Power: Connect the USB Cable to source USB port for power in. EDID Switch: Press this switcher &...
  • Page 6 HDMI input: This port is where you connect the HDMI source output from Blu-ray, PS4, Set-top Box or PC/ Laptop. HDMI OUT: This port is where you connect the HDTV or monitor with HDMI cable for input source display. Toslink OUT: This slot is where you connect to the audio amplifier with optical fiber cable. AUDIO OUT: This slot is where you connect to the speaker with 3.5mm earphone cable.
  • Page 7 Attention: If HDMI source power is not enough, the converter may display a flickering or intermittent dropout that means an external power of 5V, 1 amp will be needed via USB to use the de-embedder. USB to barrel cable is supplied. Application Diagram...
  • Page 8 Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be warranted for the remainder of the original warranty period of 3 years, whichever is longer.
  • Page 9 No other warranties: TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, KANEX DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS.
  • Page 10 Brea, California Visit: KanexPro.com MPN: HAECOAX2...
