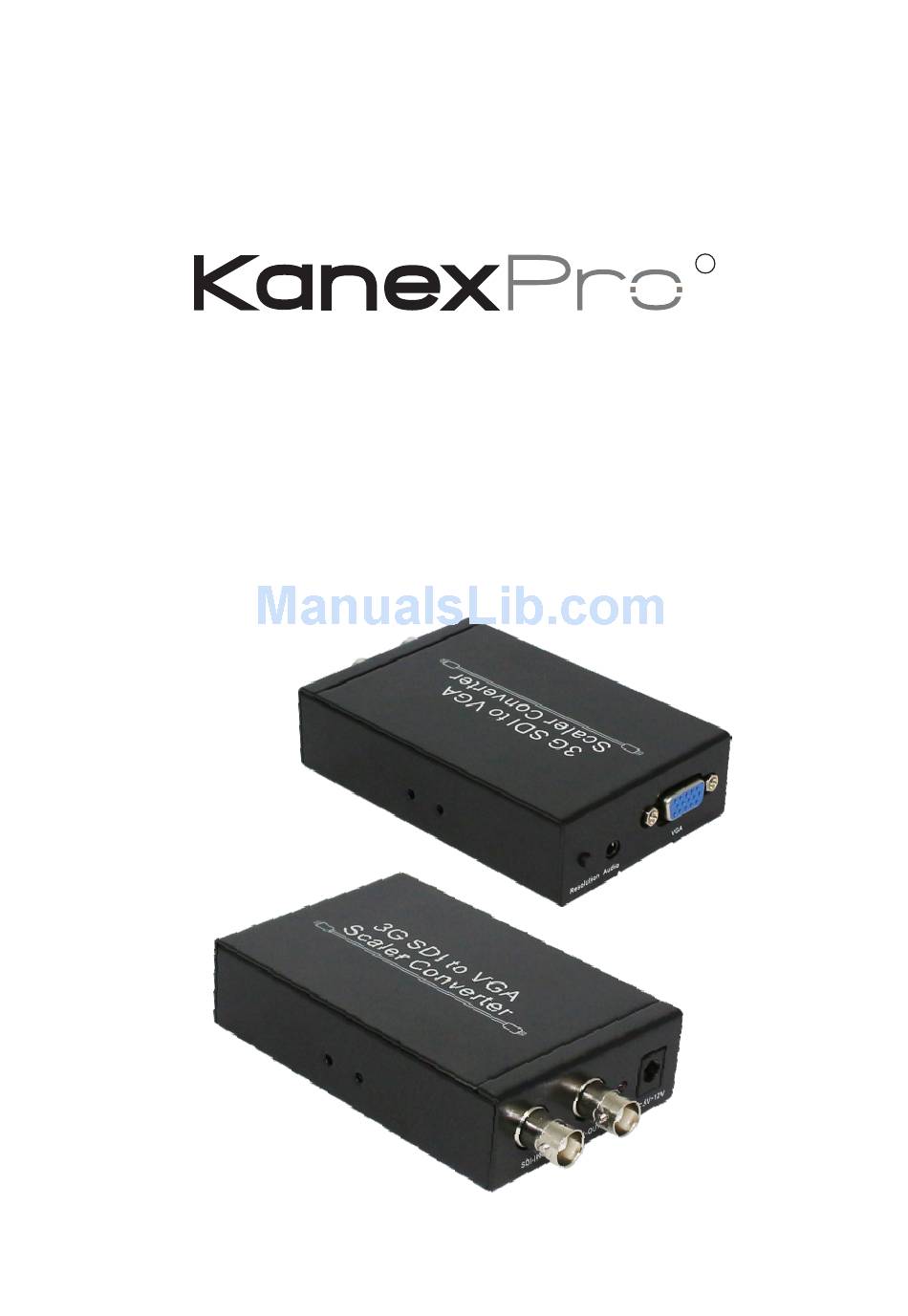

- Page 1 EXT-SDIVGA 3G/HD-SDI/ SDI to VGA Converter...
-
Page 2: Speci Cations

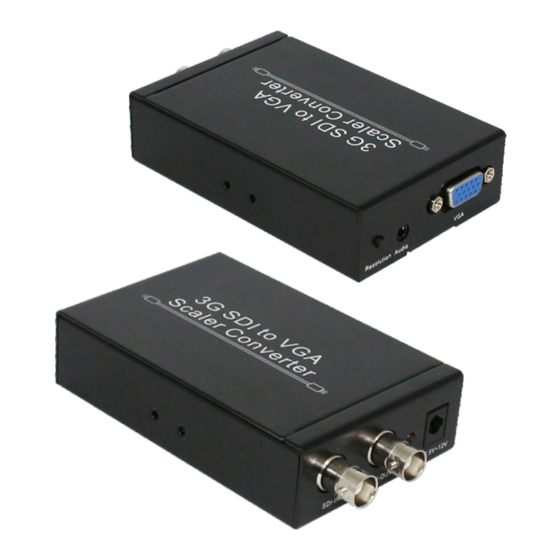

1.1. Introduction to EXT-SDIVGA e KanexPro SDI to VGA Converter allows SDI, HD-SDI and 3G-SDI signals to be displayed on a VGA monitor or a projector ensuring high bit-rates up to 3 Gbps for faster signal transmission without loss in broadcasting quality signals. -
Page 3: Specifications
Simultaneous display with SDI /VGA signals Alternative audio output to analog 2CH Data rates up to 3 Gbps SDI Input cable length support - up to 300m HD mode length up to: 200m Capable of cascading to multiple units Automatic detection of SD, HD and 3 Gb/s SDI standards Compact in size, perfect for mobile broadcasting units Specifications Video Input:... -
Page 4: Application Example
Operation controls and functions SDI IN: is slot is where you connect the SDI source output for SDI signal sending to be displayed on the screen SDI OUT: is slot is where you connect the SDI display with a SDI cable for the input source to display POWER LED: is red LED will illuminate when the converter is connected to the provided power supply DC IN:... - Page 5 KanexPro's entire liability and Customer's exclusive remedy shall be, at KanexPro option, either return of the price paid for the product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers' receipt.
