- Page 1 CON-AUDXTRACT USER MANUAL Extract multi-channel audio from HDMI All Rights Reserved Version: CON-AUDXTRACT_2018V1.1...
-
Page 2: Fcc Statement
CON-AUDXTRACT Preface Read this user manual carefully before using the product. Pictures are shown in this manual for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. -
Page 3: Safety Precautions
CON-AUDXTRACT SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ... -
Page 4: Table Of Contents
CON-AUDXTRACT Table of Contents 1. Introduction ........................4 1.1 Introduction to CON-AUDXTRACT ..............4 1.2 Features ......................4 1.3 Packing List ......................5 2. Panel Description ......................6 2.1 Front Panel ......................6 2.2 Rear Panel ......................7 3. System Connection ..................... 8 3.1 Usage Precautions ..................... -
Page 5: Introduction
1. Introduction 1.1 Introduction to CON-AUDXTRACT The KanexPro CON-AUDXTRACT is an audio converter used to extract the encoded multi-channel LPCM, Dolby Digital 5.1, DTS-HD 5.1 from HDMI sources to optical audio output and decode to 2 CHs analog stereo audio via RCA (L/R) and COAX outputs without any other external equipment. -
Page 6: Packing List
CON-AUDXTRACT 1.3 Packing List 1 x CON-AUDXTRACT 2 x Mounting Ears（with 2 Screws） 4 x Plastic Cushions 1 x Power Adapter (DC 12V 1A) 1 x User Manual Note: Please contact your distributor immediately if any damage or defect in the components is found. -
Page 7: Panel Description

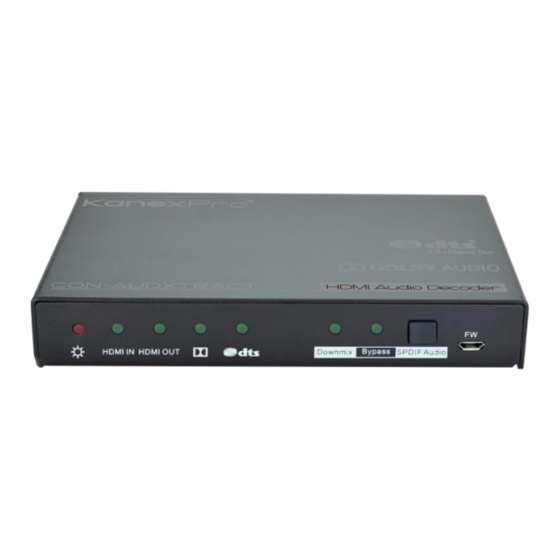

CON-AUDXTRACT 2. Panel Description 2.1 Front Panel Name Description ① Power LED Turns red when DC power present. ② HDMI IN Activity LED Green when HDMI signal input. ③ HDMI OUT Activity LED Green when HDMI signal output. ④ Dolby Activity LED Green when Dolby audio signal input. -
Page 8: Rear Panel
CON-AUDXTRACT 2.2 Rear Panel Name Description ① HDMI IN HDMI signal input. ② HDMI OUT HDMI signal output. ③ OPTICAL Optical audio output. ④ COAX Coaxial audio output. ⑤ RCA (L/R) audio output. ⑥ DC 12V Power input port. Note: Pictures shown in this manual are only for reference. -
Page 9: System Connection
CON-AUDXTRACT 3. System Connection 3.1 Usage Precautions Verify all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ... -
Page 10: Connection Procedure
CON-AUDXTRACT 3.3 Connection Procedure In the living room: Step1. Connect a HDMI source (Blu-Ray) to HDMI input port of the HDBaseT Matrix with HDMI cable. Step2. Connect the HDMI output of HDBaseT Matrix to the HDMI IN port of the Audio converter with HDMI cable. -
Page 11: Specification
CON-AUDXTRACT 4. Specification Input & Output (1) HDMI Input Signal (1) Type A Receptacle Input Connector (1) HDMI; (1) OPTICAL; (1) COAX; (1) L/R; Output Signal (1) Type A Receptacle; (1) Toslink Receptacle; OUTPUT Connector (1) Black RCA Receptacle; (1) Red & White RCA Receptacle;... -
Page 12: Panel Drawing
CON-AUDXTRACT 5. Panel Drawing HDMI IN HDMI OUT OPTICAL COAX DC 1 2 V CON-AUDXTRACT HD M I Audio D ecoder 132 mm D ownm ix Bypass HD M I I N HD M I O U T SPD I F Audio... -
Page 13: Troubleshooting & Maintenance
CON-AUDXTRACT 6. Troubleshooting & Maintenance Problems Potential Causes Solutions Incorrect setting on the Check the display’s setting display Output images in display show with ghost Try another high quality A cable of bad quality connection cable Check with oscilloscope or... -
Page 14: Customer Service
CON-AUDXTRACT 7. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years. -
Page 15: Warranty
KanexPro has been advised of the possibility of such damages. - Page 16 1405 pioneer street Brea, CA 92821...
