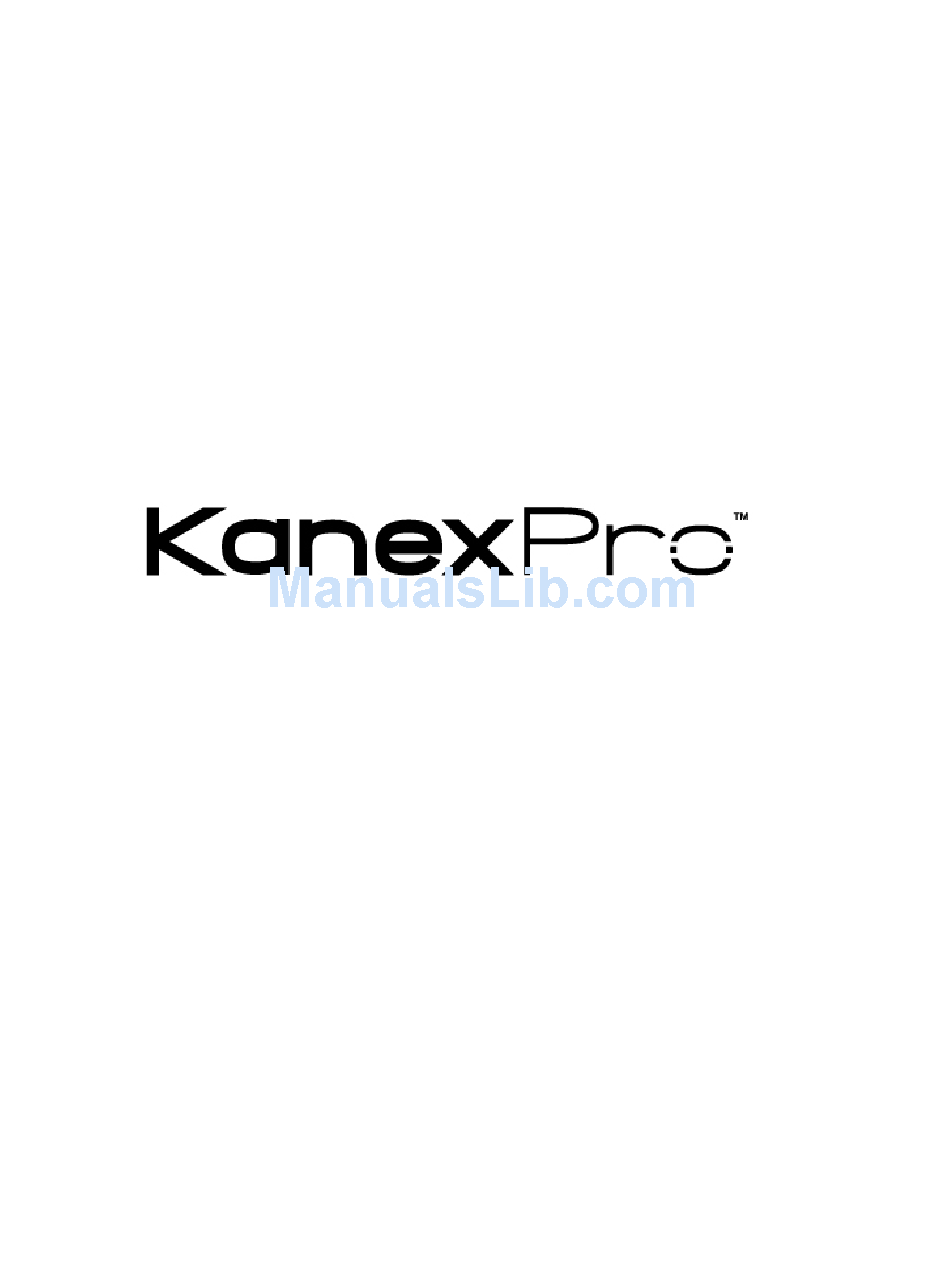

  • Page 1 EXT-SDI3GX SDI to HDMI™ Converter...
  • Page 2: Table Of Contents

    EXT-SDI3GX Table of Content 1. Introduction…………………………………………………… 2. Specifications ………………………………………………… 3. Package Content……………………………………………… 4. Panel Description…………………………………………….. 5. Connection and Operation………………………………..… 6. Warranty Information…………………………………………...
  • Page 3: Introduction

    1. Introduction 1.1 Product Description The KanexPro SDI to HDMI converter is a cost-effective version down from our EXT-3GSDI. It supports SDI, 3G-SDI & HD-SDI to HDMI for display on any monitor equipped with an HDMI jack. This device can be rack-mounted to the back of most equipment;...
  • Page 4: Specifications

    EXT-SDI3GX 2. Specifications Signal Input/ Output Input Connector 1xSDI BNC Male Output Connector 1x HDMI Female(A Type), 1xSDI BNC Male Mechanical Size (L-W-H) 100×70×25MM Weight (Net) 202G Warranty Limited Warranty Term 1 Year Environmental 0 ℃ to +70℃ Operating Temperature...

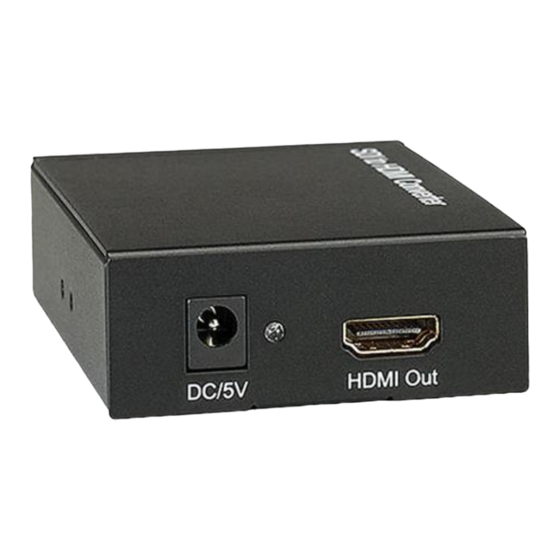

  • Page 5: Panel Description

    EXT-SDI3GX 4. Panel Description (1) Power in, DC 5V/1A/2A adapter use. (2) HDMI out, connect to the HDMI TV or HDMI monitor (3) SDI input, connect to the SDI sources, such as SDI Camera etc. (4) SDI output, loop output, can be connected to a monitor or SDI Device.
  • Page 6: Connection Diagram

    EXT-SDI3GX 5.2 Connection Diagram       Warranty   A. LIMITED WARRANTY KanexPro™ warrants that (a) its products (the “Product”) will perform greatly in agreement with the...
  • Page 7 Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be warranted for the remainder of the original warranty period of 1 year, whichever is longer.
