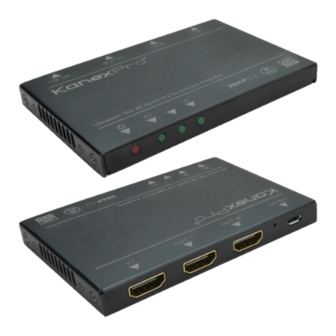

Summary of Contents for KanexPro SP-1X2SL18G

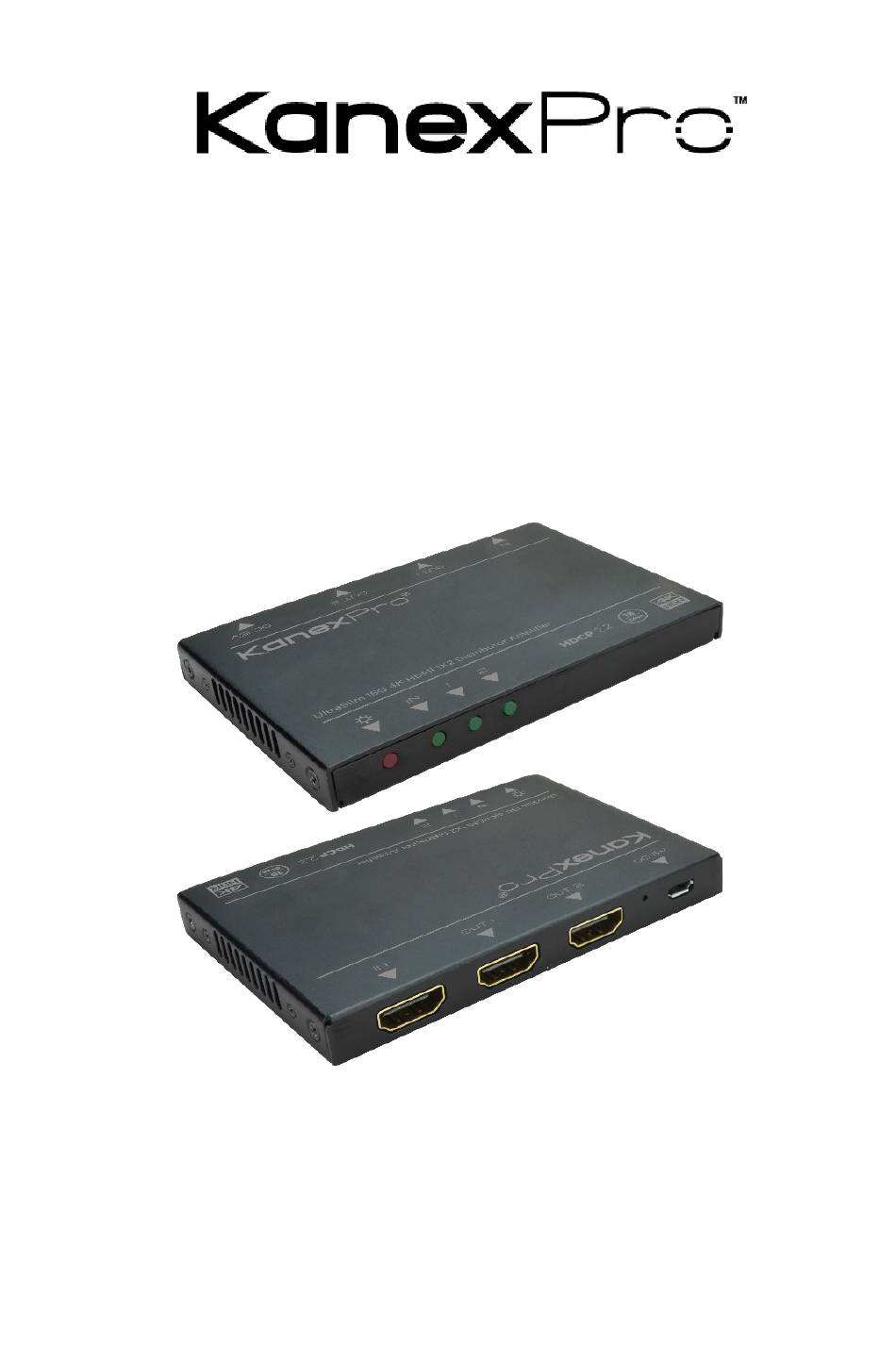

- Page 1 SP-1X2SL18G 4K HDMI Splitter 1x2 All Rights Reserved Version: SP-1X2SL18G_2016V1.0...
- Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. SP-1X2SL18G www.kanexpro.com...
- Page 3 Unplug the power cord when left unused for a long period of time. l Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. SP-1X2SL18G www.kanexpro.com...
-
Page 4: Table Of Contents
4K HDMI Splitter 1x2 Contents 1. Introduction ........................1 1.1 Introduction to SP-1X2SL18G ................1 1.2 Features ......................1 1.3 Packing List ......................1 2. Panel Description ......................2 3. System Connection ..................... 4 3.1 Usage Precautions ..................... 4 3.2 System Diagram ....................4 3.3 Connection Procedures .................. -
Page 5: Introduction
1. Introduction 1.1 Introduction to SP-1X2SL18G SP-1X2SL18G is a HDMI splitter featuring the capability to repeat HDMI or DVI source to 2 displays synchronously. Compliance with HDMI2.0& HDCP2.2, SP-1X2SL18G provides comprehensive resolution capacities up to 4K& 1080p 3D. It’s capable to automatically recognize the resolution and HDCP compliant status of the input signal. -
Page 6: Panel Description
HDMI output ports, connect to HDMI displays, automatically OUT1& ⑤ capture the input resolution OUT2 HDMI input port. connect with HDMI or DVI source device such ⑥ as Blu-ray DVD SP-1X2SL18G KanexPro.com... - Page 7 HDMI signal contains both HDMI video signal and embedded audio signal (PCM, Dolby Digital, DTS, DTS-HD), while DVI signal contains solely video signal. d) SP-1X2SL18G is capable to switch input signal format according to the displays. For example, when the input signal is HDMI and the display can only support DVI signal, SP-1X2SL18G will switch the signal into DVI format.
-
Page 8: System Connection
Step1. Connect a HDMI/ DVI source device (e.g. Blue-ray DVD) to the IN socket of SP-1X2SL18G with HDMI cable. Step2. Connect HDMI displays to OUT 1 and OUT 2 sockets of SP-1X2SL18G with HDMI cables. Step3. Plug a DC 5V 2A power adapter to the power port of SP-1X2SL18G. -
Page 9: Edid Management
4K HDMI Splitter 1x2 3.4 EDID Management SP-1X2SL18G comprises 1 HDMI input port & 2 HDMI output ports, and it possess built-in EDID management function. When all output ports are connected with displays, the source device will gain the EDID data from the display connected output 1 port. At this point, if you disconnect the output 1 display and want the source device to gain the EDID from the output 2, the SP-1X2SL18G need to be restarted. -
Page 10: Specification
In-built EDID management Support Dolby D (True HD)/ DTS (HD-Master Audio)/ HDMI Embedded Audio General Temperature 0~ 55℃ Reference Humidity 10% ~ 90% Input:100V~240V AC Power Supply Output: DC5V 2A Power Consumption 4.5W(Max) Weight Dimension (W*H*D) 102mmx 11mmx 70mm SP-1X2SL18G KanexPro.com... -
Page 11: Supported Input Video Formats
1920 x 1080I@30Hz 3840 x 2160@25Hz 3840 x 2160@30Hz 3840 x 2160@60Hz 1080P 3D@60Hz Note: SP-1X2SL18G supports 4k& 3D HDMI signals, please adopt quality HDMI cables compliant with HDMI2.0 for better transmission when connecting 4K or 3D sources. SP-1X2SL18G KanexPro.com... -
Page 12: Panel Drawing
4K HDMI Splitter 1x2 5. Panel Drawing 102 mm SP-1X2SL18G KanexPro.com... -
Page 13: Troubleshooting & Maintenance
No HDMI signal output in The connecting cables may Check whether the cables SP-1X2SL18G while local not be connected correctly are connected correctly HDMI input is in normal or it may be broken. and in working condition. -
Page 14: After-Sales Service
4K HDMI Splitter 1x2 7. After-sales Service If there appear some problems when running SP-1X2SL18G, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrants that its products will be free from defects in materials and workmanship for two years, which starts from the first day you buy this product (The purchase invoice shall prevail). - Page 16 Brea, California KanexPro.com MPN: SP-1X2SL18G HDMI®and HDBaseT™ are trademarks or registered trademarks of HDMI Licensing LLC & HDBaseT Alliance respectively in the United States and other countries. KanexPro is a trademark of Apogee Inc., registered trademarks in the US.
