Summary of Contents for KanexPro CON-AUDXTRACT

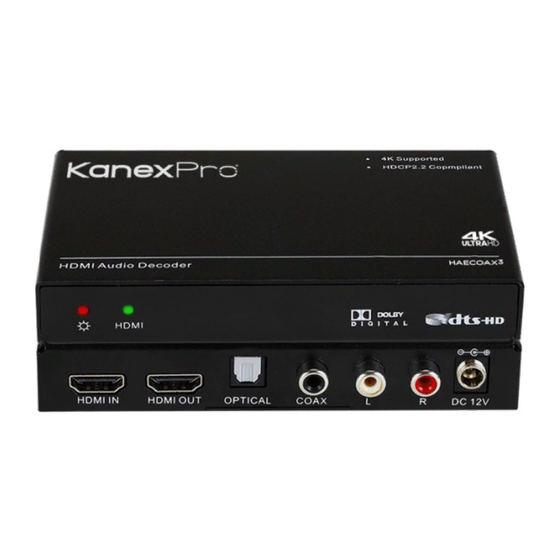

- Page 1 PDF provided by Conference Room AV KanexPro CON-AUDXTRACT HDMI Audio Decoder with Dolby, 4K 60Hz - HDCP 2.2...
-
Page 2: Con-Audxtract
CON-AUDXTRACT USER MANUAL Extract multi-channel audio from HDMI All Rights Reserved Version: CON-AUDXTRACT_2016V1.2... -
Page 3: Fcc Statement
KANEXPRO CON-AUDXTRACT Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till June 2016. -
Page 4: Safety Precautions
KANEXPRO CON-AUDXTRACT SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for... -
Page 5: Table Of Contents
KANEXPRO CON-AUDXTRACT Table of Contents 1. Introduction ........................5 1.1 Introduction to CON-AUDXTRACT ..............5 1.2 Features ......................5 1.3 Packing List ......................6 2. Panel Description ......................6 3. System Connection ..................... 7 3.1 Usage Precautions ..................... 7 3.2 System Diagram ....................7 3.3 Connection Procedure .................. -
Page 6: Introduction
1. Introduction 1.1 Introduction to CON-AUDXTRACT The KanexPro CON-AUDXTRACT is our next generation of audio converter designed to extract the encoded multi-channel LPCM, Dolby Digital 5.1, DTS-HD 5.1 from HDMI sources to optical audio output and decode to 2 CH’s analog stereo audio via RCA (L/R) and COAX outputs without any other external AV equipment. -
Page 7: Packing List
KANEXPRO CON-AUDXTRACT 1.3 Packing List 1 x HDMI Audio Decoder 2 x Mounting ears（with 4 Screws） 1 x Power adapter (DC 12V 1A) 1 x User manual Notes: If you find any defective or missing parts, please contact your local dealer. -
Page 8: System Connection
KANEXPRO CON-AUDXTRACT 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment and has a proper temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safe. -
Page 9: Connection Procedure
HDBT IN port of HDBaseT Receiver. Step7. Connect a HDMI signal cable between the HDMI OUT port of HDBaseT Receiver and the HDMI IN port of CON-AUDXTRACT-2. Step8. Connect a HDMI signal cable between the HDTV and the HDMI OUT port of CON-AUDXTRACT-2. -
Page 10: Specification
KANEXPRO CON-AUDXTRACT 4. Specification 1 × HDMI（Type A Receptacle） Input Signal 1 × HDMI（Type A Receptacle） 1 × OPTICAL（Toslink Receptacle） Output Signal 1 × COAX（Black RCA Receptacle） 1 × L/R（Red & White RCA Receptacle） Deep Color 8/10/12/16 Bit at 1080p and 2160p/60... -
Page 11: Panel Drawing
KANEXPRO CON-AUDXTRACT 5. Panel Drawing 10 | P a g e... -
Page 12: Troubleshooting & Maintenance
KANEXPRO CON-AUDXTRACT 6. Troubleshooting & Maintenance Problems Causes Solutions Incorrect setting Check the display’s setting display Output images display show with ghost Try another high quality A cable of bad quality connection cable Check with oscilloscope or No signal at the input / output... -
Page 13: After-Sales Service
Detailed failure situations. l The formation of the cases. Remarks: For any questions or problems, please try to get help from your local distributor or contact kanexpro.com or call us at 888-975-1368 for further support. 12 | P a g e... -
Page 14: Warranty
KanexPro has been advised of the possibility of such damages. - Page 15 1405 pioneer street Brea, CA 92821 14 | P a g e...
