  • Page 1 EXT-AVIP120M USER MANUAL HDMI® Video Over IP Decoder Kit up to 120m All Rights Reserved Version: EXT-AVIP120M_2017V1.2...
  • Page 2 KANEXPRO EXT-AVIP120M Preface Read this user manual carefully before using this product. Pictures displayed in this manual are for reference only. Different models and specifications are subject to the actual product. This manual is only for operational instruction, not for any maintenance usage. The functions described in this version are updated till June 2017.
  • Page 3 KANEXPRO EXT-AVIP120M SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment.
  • Page 4: Table Of Contents

    KANEXPRO EXT-AVIP120M Table of Contents 1. Introduction ........................5 1.1 Introduction to EXT-AVIP120M ................5 1.2 Features ......................5 1.3 Package List ....................... 5 2. Panel Description ......................6 3. System Connection ..................... 8 3.1 Usage Precautions ..................... 8 3.2 System Diagram ....................8 3.3 Connection Procedure ..................
  • Page 5: Introduction

    1. Introduction 1.1 Introduction to EXT-AVIP120M The KanexPro NetworkAV 120m is a simple and cost-effective encoder / decoder set which allows you to extend full HD 1080p/60 HDMI signals over IP up to 120 meters. The IP Extender kit can be used as point-to-point, point-to-many and many-to-many based on network configuration.
  • Page 6: Panel Description

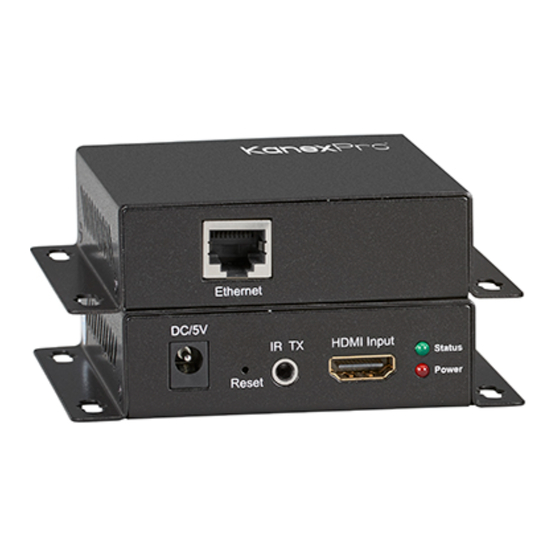

    KANEXPRO EXT-AVIP120M 2. Panel Description Transmitter Panel ① Indicator of power input ② Status of signal connection ③ HDMI input ④ Ethernet Port ⑤ IR-TX Port ⑥ Reset Button ⑦ Power input port (DC/5V) Pictures shown in this manual are only for reference.
  • Page 7 KANEXPRO EXT-AVIP120M Receiver Panel ① Indicator of power input ② Status of signal connection ③ HDMI input ④ Ethernet Port ⑤ IR-RX Port ⑥ Reset Button ⑦ Power input port (DC/5V) Pictures shown in this manual are only for reference.
  • Page 8: System Connection

    KANEXPRO EXT-AVIP120M 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment, which should have a proper temperature and humidity. 2) All the power switches, plugs, sockets and power cords should be insulated and safe.
  • Page 9 KANEXPRO EXT-AVIP120M P a g e...
  • Page 10 KANEXPRO EXT-AVIP120M Network Switch Connect HDMI TX ports with GES24 port, also connect HDMI RX ports with GES24 ports. (GES24 is a specified VLAN switch for this extender). A HTTP server is embedded in TX and RX, you can setup IP address for RX via web browser.
  • Page 11 KANEXPRO EXT-AVIP120M Setup HDMI TX and RX A HTTP server is embedded in each TX and RX. you can setup IP address for HDMI extender via web browser. The default IP address of the TX is 192.168.168.55, MAC address is: 00:0b: 78:00:60:01.
  • Page 12: Connection Procedure

    KANEXPRO EXT-AVIP120M Note: If you need to restore the device to its factory default settings, please power on the device, the red light becomes lighting, waiting about 10 seconds, the green LED light starts working, now to press the reset button about 5-10 seconds, then the green light will go out, you have successfully restored IP address to factory IP address now.
  • Page 13: Specification

    KANEXPRO EXT-AVIP120M 4. Specifications Operating Temperature -5 to +35℃(+23 to +95℉) Range 5 to 90%RH (No Condensation) Operating Humidity Range 0.5-1.0 Volts P-P Input Video Signal Input DDC Signal 5 volts p-p(TTL) Support Video Format DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P Video Output HDMI 1080P 8-bit 120m(Maximum) over single CAT5E/6...
  • Page 14: Panel Drawing

    KANEXPRO EXT-AVIP120M 5. Panel Drawing 14 | P a g e...
  • Page 15: Troubleshooting & Maintenance

    KANEXPRO EXT-AVIP120M 6. Troubleshooting & Maintenance Problems Causes Solutions Incorrect setting on the Check the display’s setting Output images display display show with Try another high-quality ghost A cable of bad quality connection cable Check with oscilloscope or No signal at the input /...
  • Page 16: After-Sales Service

     Detailed failure situations.  The formation of the cases. Remarks: For any questions or problems, please try to get help from your local distributor or contact kanexpro.com or call us at 888-975-1368 for further support. 16 | P a g e...
  • Page 17: Warranty

    KanexPro has been advised of the possibility of such damages.
  • Page 18 1405 pioneer street Brea, CA 92821 18 | P a g e...
