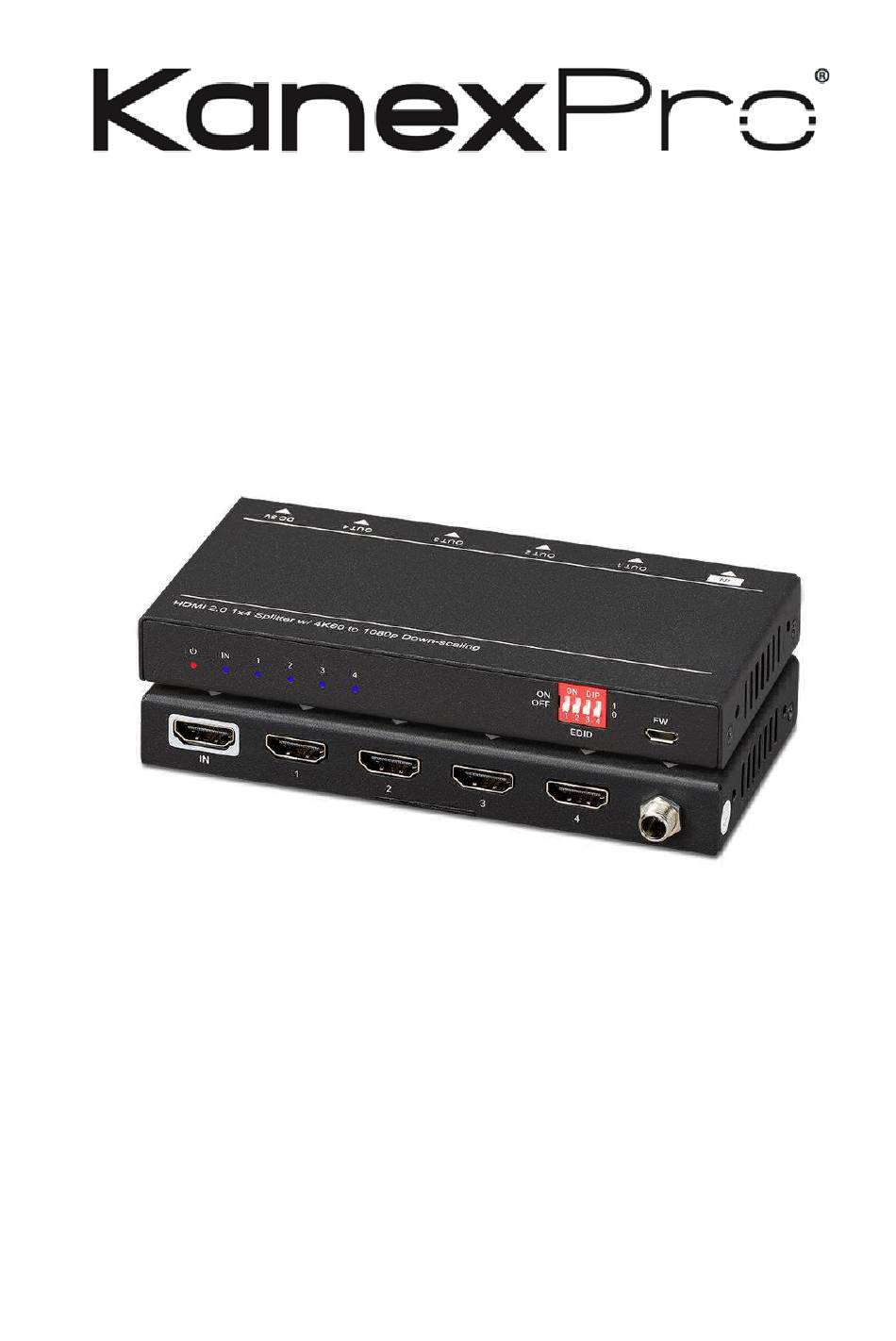

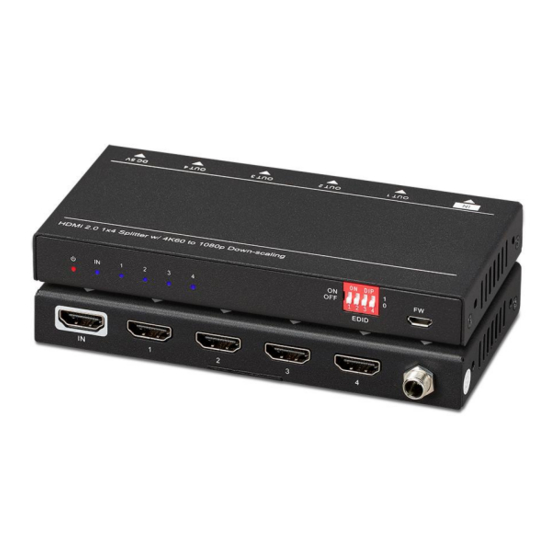

- Page 1 SP-1X4SL18G HDMI 2.0 1x4 Splitter with 4K to 1080P Down-scaling All Rights Reserved MPN# SP-1X4SL18G...
-
Page 2: Copyright Notice
KanexPro assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. KanexPro assumes no responsibility for any inaccuracies that may be contained in this document. KanexPro also makes no commitment to update or to keep current the information contained in this document. -
Page 3: Safety Precautions
SP-1X4SL18G SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Product Introduction
SP-1X4SL18G Product Introduction Thanks for choosing the HDMI 2.0 1x4 Splitter, which can distribute one HDMI input to four outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the front panel. -
Page 5: Dip Switch Operation
SP-1X4SL18G ④ EDID: 4-pin DIP switch for EDID setting and HDCP mode selection. Please refer to the 5.1 EDID Management for more details. ⑤ FW: Micro-USB port for firmware upgrade. Rear Panel DC 5V ① INPUT: Type-A female HDMI input port to connect a HDMI source. -
Page 6: Hdcp Mode
SP-1X4SL18G Switch 1~3 are used for EDID setting. The DIP switch status and its corresponding setting are shown at the back of the product. EDID Setting Default Priority OUT 1 > 2 > 3 > 4 4K/30Hz LPCM Priority OUT 4 > 3 > 2 > 1... -
Page 7: Firmware Upgrade
SP-1X4SL18G for broader video solution. Video Resolution Down-scaling The product supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P display, shown in the below chart. Input Output Color Resolution Refresh Downscale... -
Page 8: Technical Specification
SP-1X4SL18G Technical Specification Video Input Input (1) HDMI Input Connector (1) Type-A female HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version 2.2, 1.4 compliant Supported Video Output Output (4) HDMI Output Connector (4) Type-A female HDMI... -
Page 9: System Connection
SP-1X4SL18G System Connection The following diagram illustrates the typical input and output connection of the splitter: 4K/60 Display 4K/60 Display 4K/60 Blu-ray 1080p Display 4K@60 4:4:4 HDR Down Scaling Down Scaling 1080p Display... -
Page 10: After Sales Service
SP-1X4SL18G 10. After-sales Service If problems arise when operating the device, please refer to this user manual. Any transport costs are borne by the users during the warranty. 1. Product Limited Warranty: We warrant that products will be free from defects in materials and workmanship for three years, which starts from the first day the product exits warehouse. -
Page 11: Limited Warranty
KanexPro has been advised of the possibility of such damages... - Page 12 SP-1X4SL18G Brea California, www.kanexpro.com...
