- Page 1 KanexPro HDMI 2.0 Audio Embedder VER 1.0...
- Page 2 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
- Page 4 Audio sampling rates up to 192 kHz are supported for the highest fidelity. HDCP 2.2 and CEC bypass are also supported. Covered by KanexPros limited 3 Year warranty, rest assured that HAECOAX4 is the best tool for your next project 2.
- Page 5 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Video Resolution up to 4K2K@50/60Hz(YUV4:4:4),4K2K@ 30Hz,1080P@120Hz and 1080P3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:0 Color Depth 10-bit, 12-bit HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, (Pass-through) Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X...

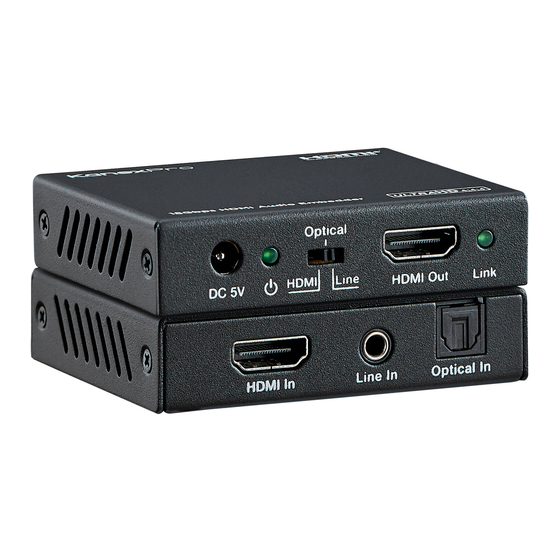

- Page 6 5. Operation Controls and Functions 5.1 Front Panel Number Name Function description HDMI In Connect to HDMI source device, such as DVD player or Set top box Line In Analog audio input port. Optical In Optical audio input port. 5.2 Rear Panel Number Name Function description...
- Page 7 input. ▪ When the dial switch is dialed to Line, the HDMI Out port output audio from Line In port input. HDMI Out Connect to HDMI display device such as TV/Projector. Link LED The LED will illuminate when detected HDMI output signal.
- Page 8 Remarks: For further assistance or solutions, please contact your local distributor, or email directly to us at support@kanexpro.com...
