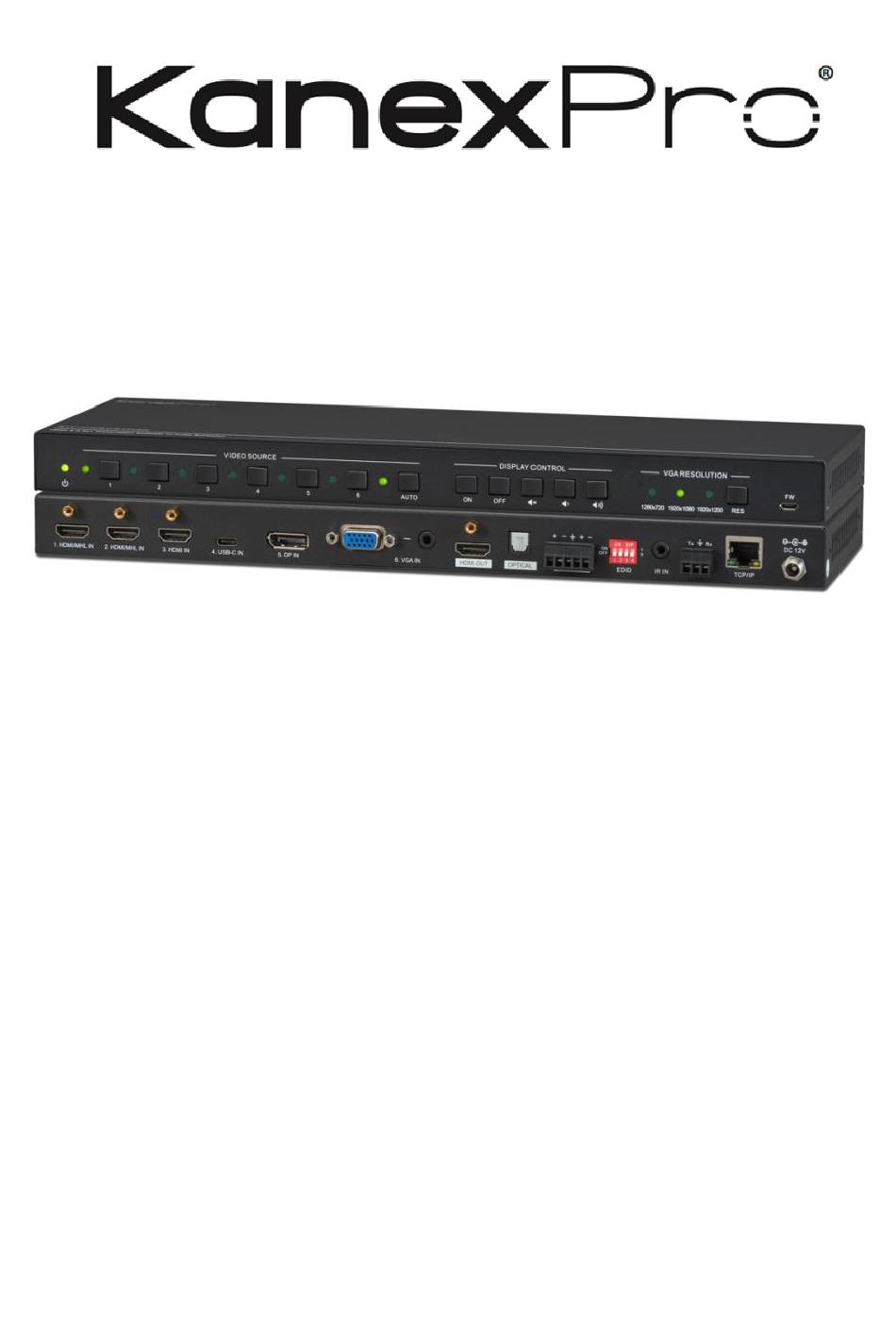

- Page 1 HDSC61D-4K 6-Input Collaboration Switcher with Audio Output All Rights Reserved Version: HDSC61D-4K_2019V2.0...
- Page 2 6x1 Collaboration Switcher w/ 4K & Audio output Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 6x1 Collaboration Switcher w/ 4K & Audio output SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ⚫...
-
Page 4: Table Of Contents
6x1 Collaboration Switcher w/ 4K & Audio output Table of Content 1. Product Introduction ....................1 1.1 Features ......................2 1.2 Package List ....................... 2 2. Specification ........................ 3 3. Panel Description ......................5 3.1 Front Panel ......................5 3.2 Rear Panel ......................6 4. - Page 5 6x1 Collaboration Switcher w/ 4K & Audio output 8.2.2 Source Switching ................... 23 8.2.3 VGA Resolution Selection ..............24 8.2.4 EDID Management................. 25 8.2.5 Audio Control..................25 8.2.6 Display Control ..................26 8.2.7 CEC Control ................... 26 8.2.8 Third-party Device Control ..............27 9.
-
Page 6: Product Introduction
6x1 Collaboration Switcher w/ 4K & Audio output 1. Intro The KanexPro HDSC61D-4K is a six input to one output 4K/60Hz collaboration switcher consisting of 3-HDMI, one USB-C, one DisplayPort and one VGA input to one HDMI output. These inputs can be switched from various HDMI, USB-C based laptops, iPads and other computing devices to one 4Kx2K display offering HDR, 4:4:4 sampling. -
Page 7: Features
Smart EDID management for various application and customized setting • Locking HDMI & power supplies • Includes mounting kit 1.2 Package List 1x HDSC61D-4K Switcher ⚫ 2x Mounting Ears with 4 Screws ⚫ 4x Plastic Cushions ⚫ 1x IR Receiver ⚫... -
Page 8: Specification
6x1 Collaboration Switcher w/ 4K & Audio output 2. Specification Video (2) HDMI/MHL, (1) HDMI, (1) USB-C, (1) DP, (1) Video Input (3) Type-A female HDMI, (1) Type-C USB 3.0, Video Input Connector (1) DisplayPort, (1) 15-pin female VGA HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit MHL Input Resolution Up to 1080P@60Hz... - Page 9 6x1 Collaboration Switcher w/ 4K & Audio output 2.0Vrms ± 0.5dB. 2V = 16dB headroom above - Max Output Level 10dBV (316mV) nominal consumer line level signal <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz THD+N sine at 0dBFS level (or max level) >80dB, 20Hz ~ 20KHz bandwidth >70dB, 10KHz sine at 0dBFS level (or max level Crosstalk Isolation...
-
Page 10: Panel Description
6x1 Collaboration Switcher w/ 4K & Audio output 3. Panel Description 3.1 Front Panel VIDEO SOURCE DISPLAY CONTROL VGA RESOLUTION AUTO 1280x720 1920x1080 1920x1200 ① Power LED: The LED illuminates red when the device is in standby, or illuminates green when the device is power on. ②... -
Page 11: Rear Panel
6x1 Collaboration Switcher w/ 4K & Audio output 3.2 Rear Panel 1 2 3 4 1. HDMI/MHL IN 2. HDMI/MHL IN 3. HDMI IN 4. USB-C IN 5. DP IN 6. VGA IN HDMI OUT OPTICAL EDID IR IN RS232 TCP/IP ①... -
Page 12: System Connection
6x1 Collaboration Switcher w/ 4K & Audio output 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. ⚫ System should be installed in a clean environment with proper temperature and ⚫ humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ⚫... -
Page 13: Button Control
6x1 Collaboration Switcher w/ 4K & Audio output 5. Button Control 5.1 Manual Switching When the switcher is in the manual switching mode, the Auto Mode LED goes out. If need to change the input source, please directly press the 1, 2, 3, 4, 5 or 6 button, and the corresponding LED illuminates green immediately. -
Page 14: Vga Resolution Selection
6x1 Collaboration Switcher w/ 4K & Audio output 5.4 VGA Resolution Selection The RES button on the front panel is designed for VGA resolution selection. OFF: Display Off. Press RES button repeatedly to set the VGA resolution to 1280x720, 1920x1080 or 1920x1200, and its corresponding LED will illuminates green. - Page 15 6x1 Collaboration Switcher w/ 4K & Audio output 1100 User-defined 2 1101 User-defined 3 1110 User-defined 4 1111 Enable GUI or RS232 EDID management. Note: Stereo Audio: LPCM 2Ch ⚫ High Definition Audio: LPCM 8Ch, AC-3 6Ch, DTS 5.1, Dolby Digital5.1 ⚫...
-
Page 16: Ir Remote Control
6x1 Collaboration Switcher w/ 4K & Audio output 6. IR Remote Control Connect the IR IN port to an IR receiver, the switcher can be controlled by the below IR remote. ① Enter or exit standby mode. ② Video input selection buttons (1~6) and AUTO mode button. -
Page 17: Gui Control
6x1 Collaboration Switcher w/ 4K & Audio output 7. GUI Control The switcher also be controlled via TCP/IP, and the default IP setting is: IP Address: 192.168.0.178 Subnet Mask: 255.255.250.0 Please type 192.168.0.178 in the internet browser, and it will enter the below log-in webpage: Username: admin Password: admin... -
Page 18: Switching Tab
6x1 Collaboration Switcher w/ 4K & Audio output 7.1 Switching Tab Click the AUTO button to enable automatic switching mode. ⚫ Click 1~6 button to select input source respectively. ⚫ 7.2 Display Control Tab 1) CEC Control... - Page 19 6x1 Collaboration Switcher w/ 4K & Audio output ON: Display On. ⚫ OFF: Display Off. ⚫ : Mute/unmute display audio. ⚫ : Volume down display audio. ⚫ : Volume up display audio. ⚫ 2) VGA Resolution Selection VGA output resolution can be selected as 1024x768@60Hz, 1280x720@50Hz, ⚫...
-
Page 20: Audio Tab
6x1 Collaboration Switcher w/ 4K & Audio output 7.3 Audio Tab Turn on or turn off the digital audio output. ⚫ Turn on or turn off the analog audio output. ⚫... -
Page 21: Edid Tab
6x1 Collaboration Switcher w/ 4K & Audio output 7.4 EDID Tab Before select EDID in this tab, please ensure the 4-pin DIP switch on the rear ⚫ panel is on the “1111” position. 7.5 RS232 Tab... -
Page 22: Interface Tab
6x1 Collaboration Switcher w/ 4K & Audio output Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200. ⚫ Command Ending: NULL, CR, LF or CR+LF can be chosen. ⚫ Command: Type the command in this box to control the third-party device which ⚫... -
Page 23: Access Tab
6x1 Collaboration Switcher w/ 4K & Audio output 7.7 Access Tab Modify the login password. ⚫ Lock or unlock the front panel buttons. ⚫ 7.8 Network Tab... -
Page 24: Gui Upgrade
6x1 Collaboration Switcher w/ 4K & Audio output Set Static IP or Dynamic Host Configuration Protocol (DHCP). ⚫ Modify the static IP Address, Subnet Mask, and Gateway. ⚫ 7.9 GUI Upgrade Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. -
Page 25: Rs232 Control
6x1 Collaboration Switcher w/ 4K & Audio output 8. RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending the RS232 commands. 8.1 RS232 Control Software Installation: Copy the control software file to the control PC. ⚫... - Page 26 6x1 Collaboration Switcher w/ 4K & Audio output The main view is shown as below: Parameter configuration area Monitoring area, show the commands and its feedback information. Command sending area Operation area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then the command is ready to be sent in command sending area.
-
Page 27: Rs232 Command
6x1 Collaboration Switcher w/ 4K & Audio output 8.2 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Note: All commands not need to end with “<CR><LF>”. ⚫ In the commands, “[”and “]” are symbols for easy reading and do not need to be ⚫... -
Page 28: Source Switching
6x1 Collaboration Switcher w/ 4K & Audio output IIS OUT ON! FACTORY DEFAULT! SCU61E VERSION V1.0.0 POWER ON! FRONT PANEL UNLOCK! HDMI OUT SWITCH TO RST. Factory reset. AUTO MODE! HDMI OUT SWITCH TO 1! DIP0000! DIP EDID0000! SPDIF OUT ON! IIS OUT ON! RS232/GUI COMMANDS LIST:... -
Page 29: Vga Resolution Selection
6x1 Collaboration Switcher w/ 4K & Audio output 8.2.3 VGA Resolution Selection When VGA source is selected, the below commands can be used to set the VGA output resolution. Command Function Feedback Example SET RESOLUTION OF VGA Set the VGA output resolution to VGARES1. -
Page 30: Edid Management
6x1 Collaboration Switcher w/ 4K & Audio output 8.2.4 EDID Management Command Function Feedback Example EDID_0001! Read the preset EDID. [xxxx] represents EDIDR[xxxx]. the 4-pin DIP switch status. … EDIDUSE0001! Invoke the preset EDID. [xxxx] represents EDIDUSE[xxxx]. EDID_RS232&GUI_MODE! the 4-pin DIP switch status. EDID0001! User-define EDID ⚫... -
Page 31: Display Control
6x1 Collaboration Switcher w/ 4K & Audio output 8.2.6 Display Control Command Function Feedback Example TVON. Power on the display. CEC TV POWER ON! Power off the display. CEC TV POWER OFF! TVOFF. TVVOL+. Increase the display audio. CEC TV VOLUME INCREASE! CEC TV VOLUME Decrease the display audio. -
Page 32: Third-Party Device Control
6x1 Collaboration Switcher w/ 4K & Audio output 8.2.8 Third-party Device Control The switcher supports RS232 pass-through control, the third-party device can be controlled by RS232 command, and the command format as shown below: Command Function Command Example /+3:abc123 xxx: ASCII string. The “B”... -
Page 33: Panel Drawing
6x1 Collaboration Switcher w/ 4K & Audio output 9. Panel Drawing 1 2 3 4 1. HDMI/MHL IN 2. HDMI/MHL IN 3. HDMI IN 4. USB-C IN 5. DP IN 6. VGA IN HDMI OUT OPTICAL EDID IR IN RS232 TCP/IP 342.5 mm VIDEO SOURCE... -
Page 34: Troubleshooting & Maintenance
The front panel buttons Unlock the front panel by front panel buttons are locked. buttons. while can control it through RS232 port. Note: If the problem still remaining after following the above troubleshooting steps, please contact KanexPro directly at support@kanexpro.com for further assistance. -
Page 35: Customer Service
Contact us at Toll free (888)875-1368 x117, International +1(714)332.1681 or email directly to support@kanexpro.com...
