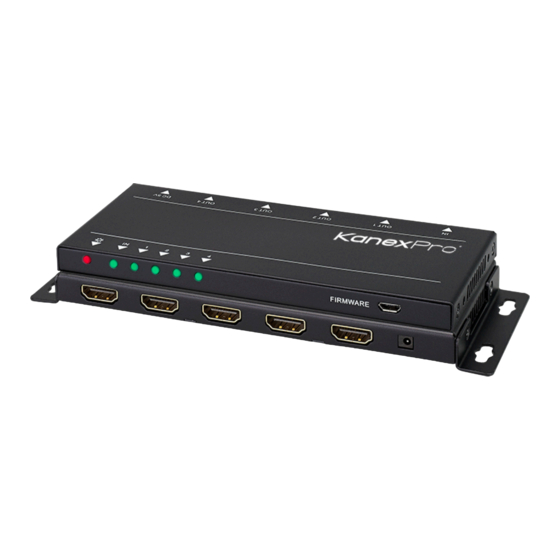

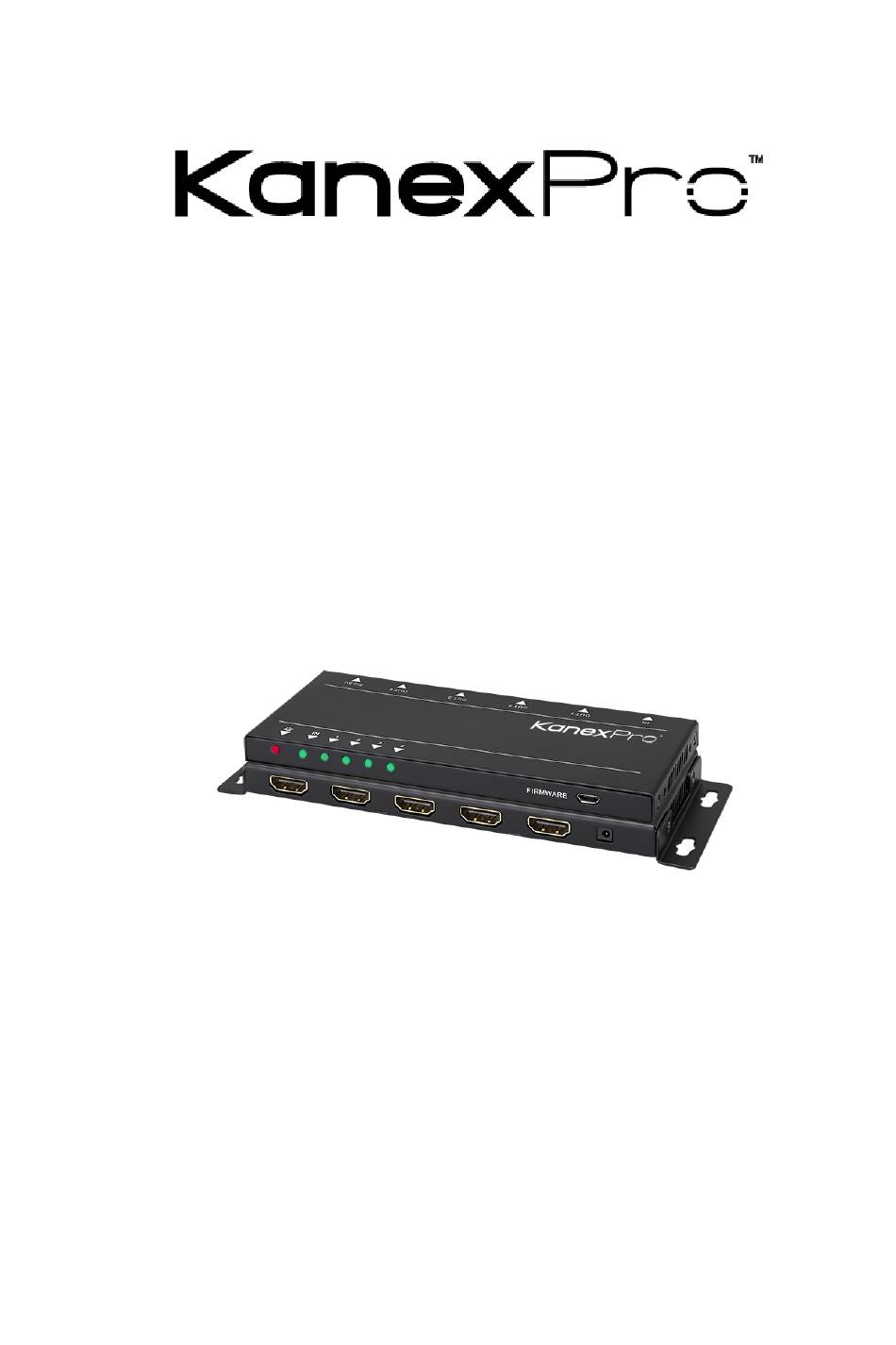

- Page 1 SP-4KPROSLIM1X4 Ultra Slim 4K HDMI 4-Port Splitter All Rights Reserved Version: SP-4KPROSLIM1X4_2014V1.0...
- Page 2 Ultra Slim 4K HDMI 4-Port Splitter SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l...
- Page 3 Ultra Slim 4K HDMI 4-Port Splitter NOTICE: Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is for operation instruction only, not for any maintenance usage. The functions described in this version are updated till September 2014. Any changes of functions and parameters since then will be informed separately.
-
Page 4: Table Of Contents
Ultra Slim 4K HDMI 4-Port Splitter Contents 1. Introduction ........................1 1.1 Introduction to 4K HDMI Splitter ................. 1 1.2 Features ......................1 1.3 Package List ....................... 2 2. Panel Description ......................3 2.1 Front Panel ......................3 ... -
Page 5: Introduction
1. Introduction 1.1 Introduction to the World’s Slimmest Ultra HD 4K HDMI Splitter The KanexPro 1x4 HDMI Splitter is an ultra-slim, space saving 4K@30Hz compliant distribution amplifier which lets you duplicate one HDMI source signal to four UHD 4K displays without losing signal integrity and resolution. Incredibly thin aluminum design with only 0.4 inches thick, this professional splitter is ready to fit in any installation... -
Page 6: Package List
Ultra Slim 4K HDMI 4-Port Splitter 1.3 Package List l 1 x 4K HDMI Splitter l 2 x Mounting ears (separate from 4K HDMI Splitter) l 4 x Screws l 4 x Plastic cushions l 1 x Power Adapter (DC 5V 1A) l... -
Page 7: Panel Description
Ultra Slim 4K HDMI 4-Port Splitter 2. Panel Description 2.1 Front Panel Name Description Power Illuminate red once powered on indicator Indicate the HDCP compliant status of the input signal Input HDCP Ø Iluminate green when the input signal is with HDCP compliant Ø... -
Page 8: System Connection
Ultra Slim 4K HDMI 4-Port Splitter Note: a) Pictures shown in this manual are for reference only; different model and specifications are subject to real product. b) HDMI signal contains both HDMI video signal and embedded audio signal (PCM, Dolby Digital, DTS, DTS-HD), while DVI signal contains solely video signal. c) 4K HDMI Splitter is capable to switch input signal format according to the displays. -
Page 9: Edid Management
Ultra Slim 4K HDMI 4-Port Splitter Step3. Plug a DC 5V power adapter to the power port of 4K HDMI Splitter. Note: All the ports support hot-plug. It’s important to know that hot plugging a display may result in splash screen at all connected output devices. 3.4 EDID Management 4K HDMI Splitter comprises 1 HDMI input port &... -
Page 10: Specification
Ultra Slim 4K HDMI 4-Port Splitter Step4. Select the right port number in the dropdown list of PORT, and click Open File to load the upgrade file. Click Start to start firmware upgrading. 4. Specification Video Input Input 1 HDMI Input Connector 1 female type A HDMI 1.4 Min/ Max Signal Level... -
Page 11: Supported Input Video Formats
Ultra Slim 4K HDMI 4-Port Splitter 4.1 Supported Input Video Formats Input Resolution HDMI 720 x 480@60Hz R R 720 x 480I@30Hz R R 720 x 576@50Hz R R 720 x 576I@25Hz R R 1280 x720@50Hz R R 1280 x720@60Hz R... -
Page 12: Troubleshooting & Maintenance
Ultra Slim 4K HDMI 4-Port Splitter 6. Troubleshooting & Maintenance Problems Causes Solutions The connecting cables may Check whether the cables not be connected correctly are connected correctly Color losing or no video or it may be broken. and in working condition. signal output in HDMI The display is not Make sure the resolution of... -
Page 13: After-Sales Service
Ultra Slim 4K HDMI 4-Port Splitter 7. After-sales Service If there appear some problems when running 4K HDMI Splitter, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail). - Page 14 Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
- Page 15 Ultra Slim 4K HDMI 4-Port Splitter Brea, California KanexPro.com MPN: SP-4KPROSLIM1X4 HDMI are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Kanex is a trademark of Apogee Inc., registered in the U.S.
