RGBRLHD

USER MANUAL

+
Convert component video and analog audio to HDMI
All Rights Reserved
Version: RGBRLHD_2017V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RGBRLHD and is the answer not in the manual?

Questions and answers

Summary of Contents for KanexPro RGBRLHD

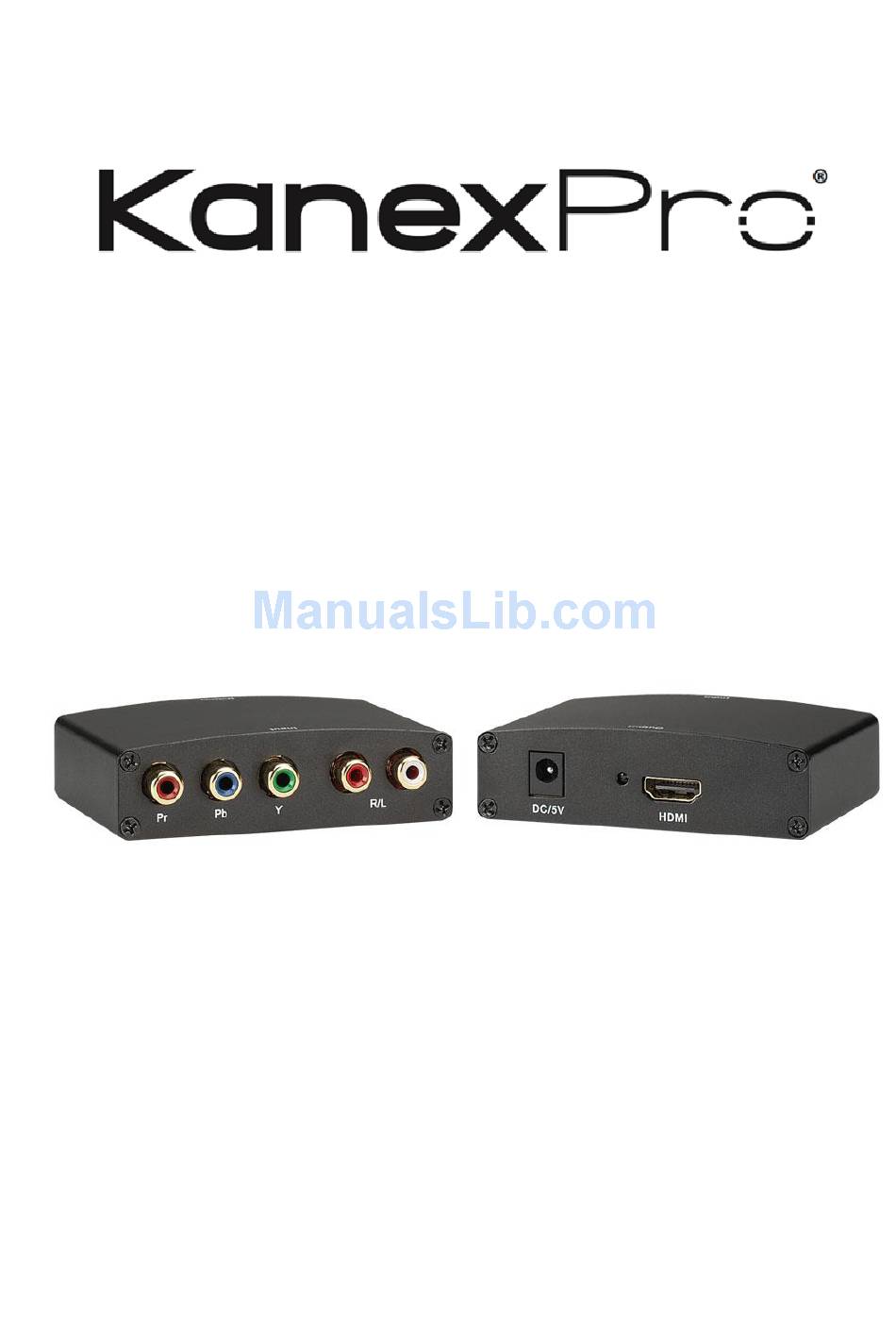

  • Page 1: User Manual

    RGBRLHD USER MANUAL Convert component video and analog audio to HDMI All Rights Reserved Version: RGBRLHD_2017V1.0...
  • Page 2: Fcc Statement

    KANEXPRO RGBRLHD Preface Read this user manual carefully before using this product. Pictures displayed in this manual are for reference only. Different models and specifications are subject to the actual product. This manual is only for operational instruction, not for any maintenance usage. The functions described in this version are updated till December 14, 2016.
  • Page 3: Safety Precautions

    KANEXPRO RGBRLHD SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment.
  • Page 4: Table Of Contents

    KANEXPRO RGBRLHD Table of Contents 1.0 Introduction…………………………………………………………………………………………………………..5 2.0 Specifications…………………………………………..……………………………………………………………….6 3.0 Package Contents…………………………………………..................7 4.0 Panel Descriptions……………………………………..................7 5.0 Connection and Operation …………………….…..……………………………………………………………..9 After-sales Service………………………………………………………………………………………………………..10 Warranty…………………………………………………………………………………………………………………….11 P a g e...
  • Page 5: Introduction

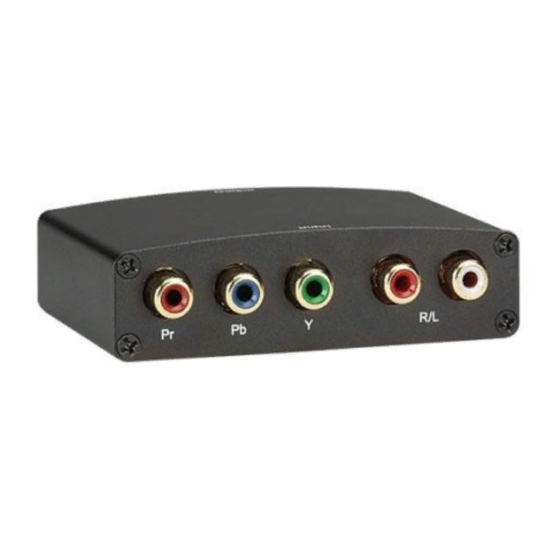

    Please keep this manual for future reference. 1. Introduction The KanexPro component audio-video converter to HDMI is a classic fit for older, analog devices that need seamless integration for today's home theater environments. It connects your component video sources such as VCR, DVD player and high-resolution cameras to HDMI compliant displays and projectors.
  • Page 6: Specifications

    KANEXPRO RGBRLHD 2. Specifications Input: Component(YPbPr+R/L) x1 Output: HDMI x1 Video Amplifier Bandwidth: 6.75Gbps Vertical Frequency Range: 50/60Hz Color Depth: 8bit per channel Resolutions (HDTV): 480p/576p/720p/1080i/1080p Power Supply: 5V DC@2A Power Consumption: Operating Temperature: 0°C to +70°C Operating Humidity: 10% to 85 % RH (no condensation) Storage Temperature: -10°C to +80°C...
  • Page 7: Package Contents

    KANEXPRO RGBRLHD 3. Package Contents Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:  Main unit.  5V DC Power Supply  User's Manual 4. Panel Descriptions Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
  • Page 8: Back Panel

    KANEXPRO RGBRLHD Back Panel: Upper Panel: Output Front Panel: P a g e...
  • Page 9: Connection And Operation

    KANEXPRO RGBRLHD 5. Connection and Operation Before installation, please make sure all devices you wish to connect have been turned off. Connect the YPbPr video and R/L audio to this Converter. (Input cables are optional) Connect the HDMI output from this product to the TV which has HDMI input.
  • Page 10: After-Sales Service

     Detailed failure situations.  The formation of the cases. Remarks: For any questions or problems, please try to get help from your local distributor or contact kanexpro.com or call us at 888-975-1368 for further support. 10 | P a g e...
  • Page 11: Warranty

    KanexPro has been advised of the possibility of such damages.
  • Page 12 KANEXPRO RGBRLHD 1405 Pioneer Street Brea, CA 92821 12 | P a g e...
