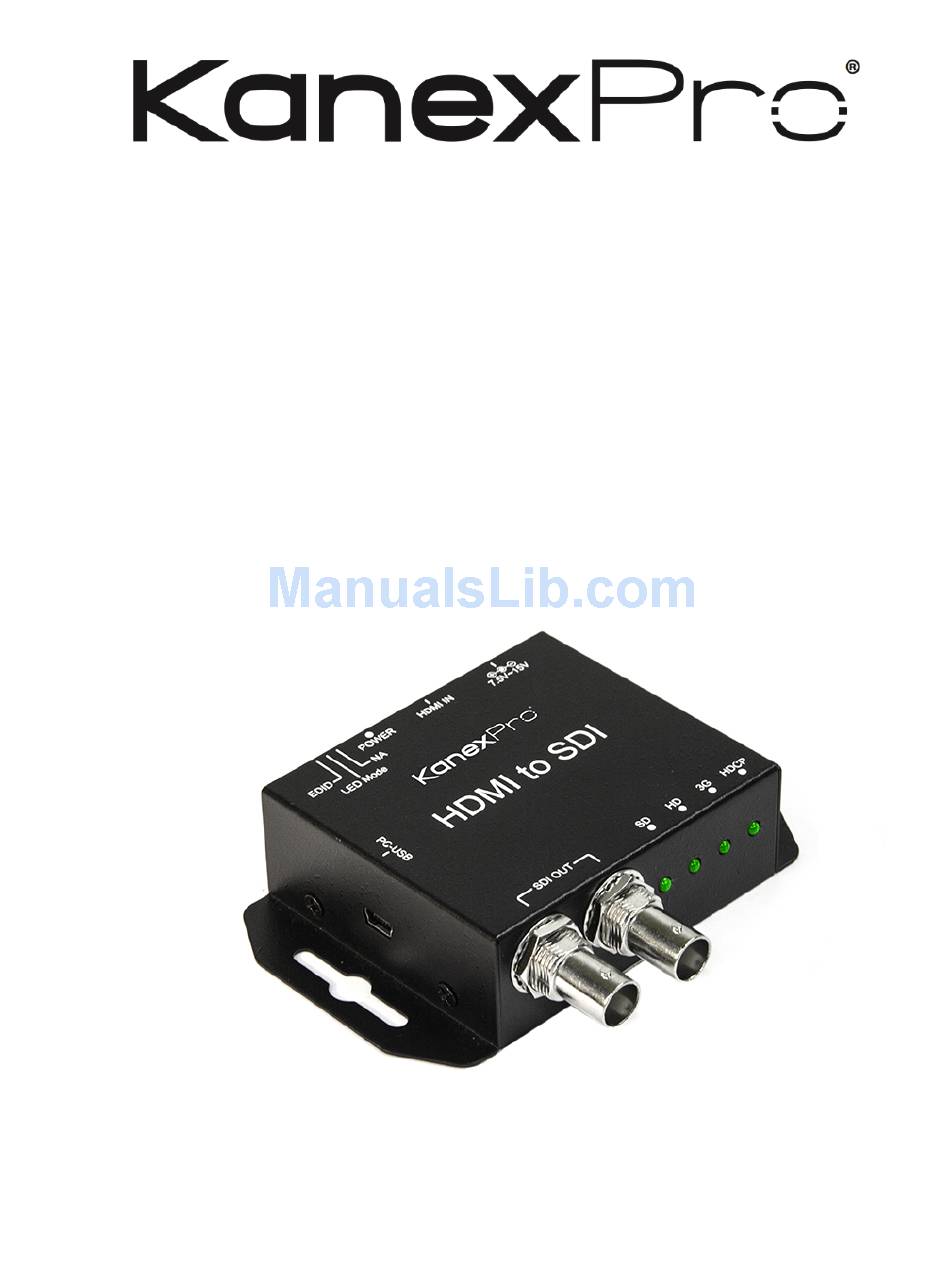

- Page 1 SDI-HDSDXPRO USER MANUAL Version 1.1...
-
Page 2: Table Of Contents
Index Description ................3 Features .................. 3 Connection Diagram ..............4 Front Panel ................5 Rear Panel ................5 Dip Switch ................6 EDID Leaning ................7 Specifications ................8 Firmware Upload ................ 9 Update List ................11 Warranty ................... 11... -
Page 3: Description

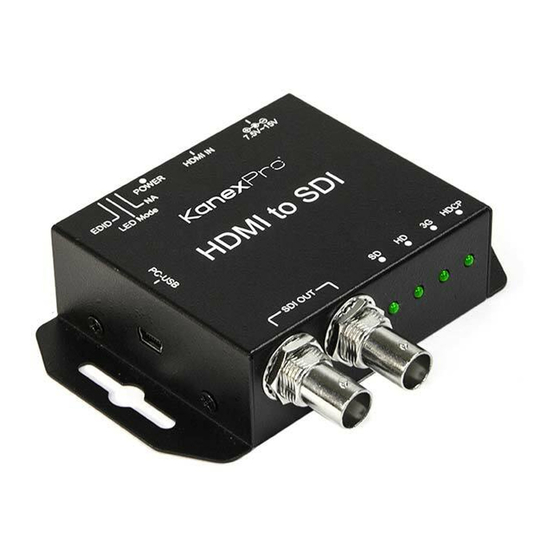

KANEXPRO SDI-HDSDXPRO Description The KanexPro next generation of HDMI to SDI converters are designed for converting single –HDMI signal into two 3G-SDI, HD-SDI signals in professional applications involving broadcasting, post –production and filming. It auto detects input signals converting the output resolution to correct format. -
Page 4: Connection Diagram
KANEXPRO SDI-HDSDXPRO Application Diagram P a g e... -
Page 5: Front Panel
KANEXPRO SDI-HDSDXPRO Front Panel 3G/HD/SD-SDI Output 1 3G/HD/SD-SDI Output 2 3G/HD/SD/HDCP LED indicator Rear Panel 1. Power (+6V ~ + 15V) 2. HDMI Input 3. Power LED indicator 4. Dip Switch: Pin On (↑): Enable Pin OFF (↓): Disable a. EDID b. -
Page 6: Dip Switch
KANEXPRO SDI-HDSDXPRO Dip Switch EDID: In order to keep the compatibility of HDMI to most monitors, SDI- HDSDXPRO features EDID learning ability. Pin On (↑): Default EDID Pin OFF (↓): Leaning EDID LED Mode: Pin OFF (↓): Resolution SD LED... -
Page 7: Edid Leaning
EDID Leaning 1. Turn off SDI-HDSDXPRO Box and EDID pin is pull down. 2. Connect the TV monitor thru HDMI port to SDI-HDSDXPRO box, and then turn on SDI-HDSDXPRO box. 3. The LED of SDI-SDHDXPRO box will light, which indicates the EDID learning process is finished. -
Page 8: Specifications
KANEXPRO SDI-HDSDXPRO Specifications DESCRIPTION SD – 720 x 480i (NTSC) / 720 x 576 I (PAL) HD– 1280 x 720p 1920 x 1080 50i/60i Support Video Resolution 1920 x 1080 24p/25p/30p 3G– 1920 x 1080 50p/60p 2K– 2048 x 1080 24p/30p... -
Page 9: Firmware Upload
KANEXPRO SDI-HDSDXPRO Firmware Upload Firmware is upgradable in the field using the integrated USB port How to Firmware upgrade: Step 1. Open Upload Firmware Program tools.exe and connect box to PC by USB Cable. Step 2. Plug and un-plug “DC adapter” to power on/off the converter box (the connection check status will be changed to “Connect”) - Page 10 KANEXPRO SDI-HDSDXPRO Step 3. Plug and un-plug “DC adapter” again (the connection check status will be changed to “Connected”) and Please click the Open File button to select the firmware bin file. Step 4. Please click “Start’ Button to proceed with new firmware programming.
-
Page 11: Update List
B. CUSTOMER REMEDIES KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro option, either return of the price paid for the product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’... - Page 12 D. NO LIABILITY FOR DAMAGES To the maximum extent permitted by applicable law, in no event shall KanexPro be liable for any damages whatsoever (including without limitation, special, incidental, consequential, or indirect damages for personal injury, loss of...
