HDMI IN Connector (PCS-XG100S only)

An HDMI output camera like Handycam can be connected to HDMI IN.
If using it as the second camera, make appropriate setting under "Camera" setup menu →
"Second Camera Input".
Notes
・Playback of a Blu-ray disc copy-guarded cannot be input to the HDMI IN connector as it
does NOT support HDCP.
・Supported HDMI version is 1.4b.

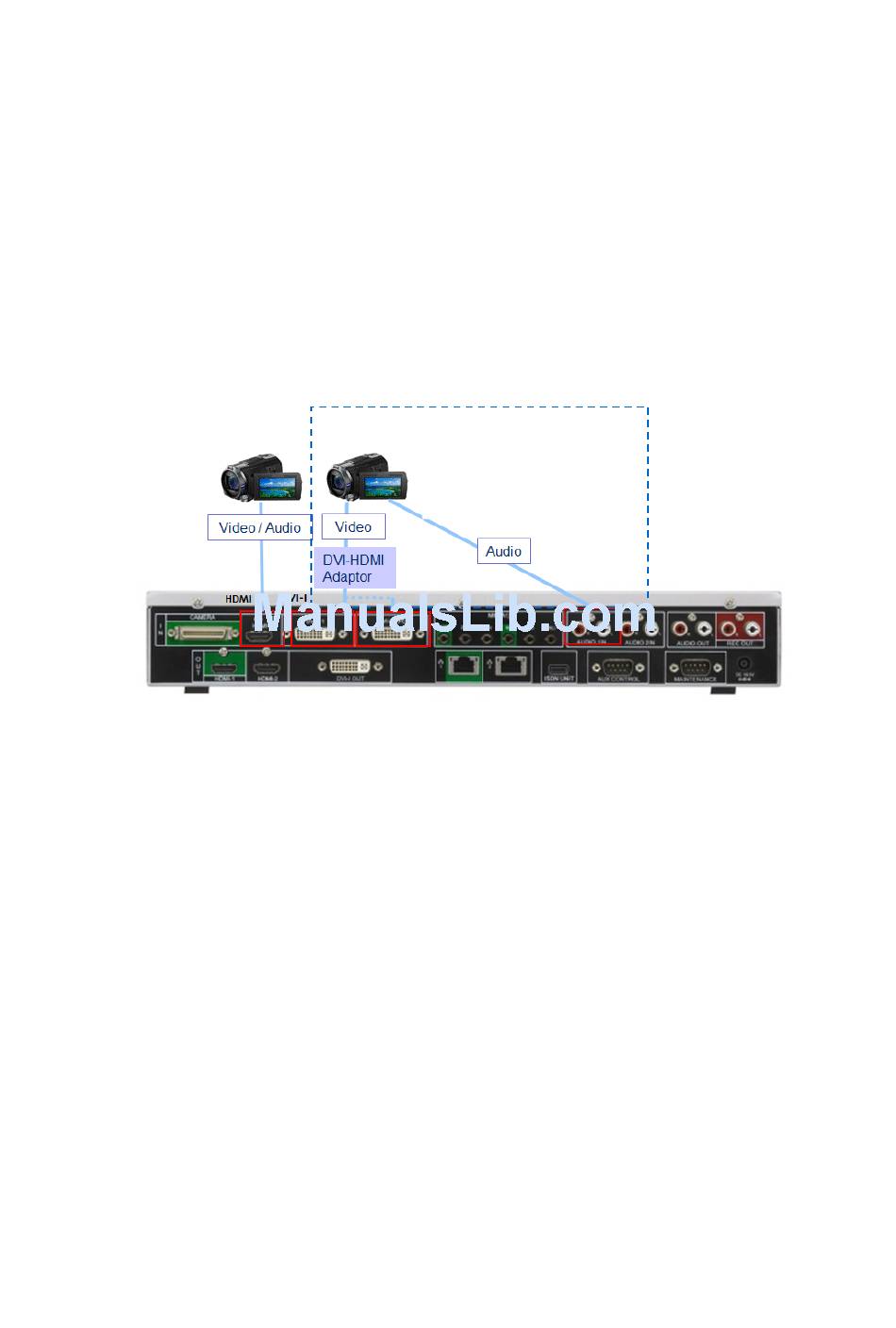

・Without HDMI IN, connect as shown in the figure below.
Audio Input
To send HDMI audio to a remote party, set "AUX" as "Audio Input".
In order not to send HDMI audio to a remote party, set "MIC" as "Audio Input".
The above settings are enabled regardless of "Link to Audio Input" setting.
Note
・Other AUX audio input will be ignored if set.
In case of not using HDMI IN
* Do the same way when
PCS-XG77S is used.
