Sony PCS-XG100 System Integration Manual Page 15

Hd video communication system.

Also See for PCS-XG100

Installation manual - 2 pages
Operating instructions manual - 297 pages

PCS-XG100/XG77 System Integration Manual

Sender side

Audio Input: MIC,

AUDIO 1 IN, AUDIO 2 IN

*Note

The reverse audio can be used even with AUDIO 1 IN/AUDIO 2 IN only when these inputs are used for MIC.

Note that you cannot use it with AUDIO 1 IN/AUDIO 2 IN when these inputs are used for AUX.

Hello

ぉ

*Note

Receiver side

Reversed MIC Inputs

side)

Hello

ぉ

Reversed MIC Inputs

side)

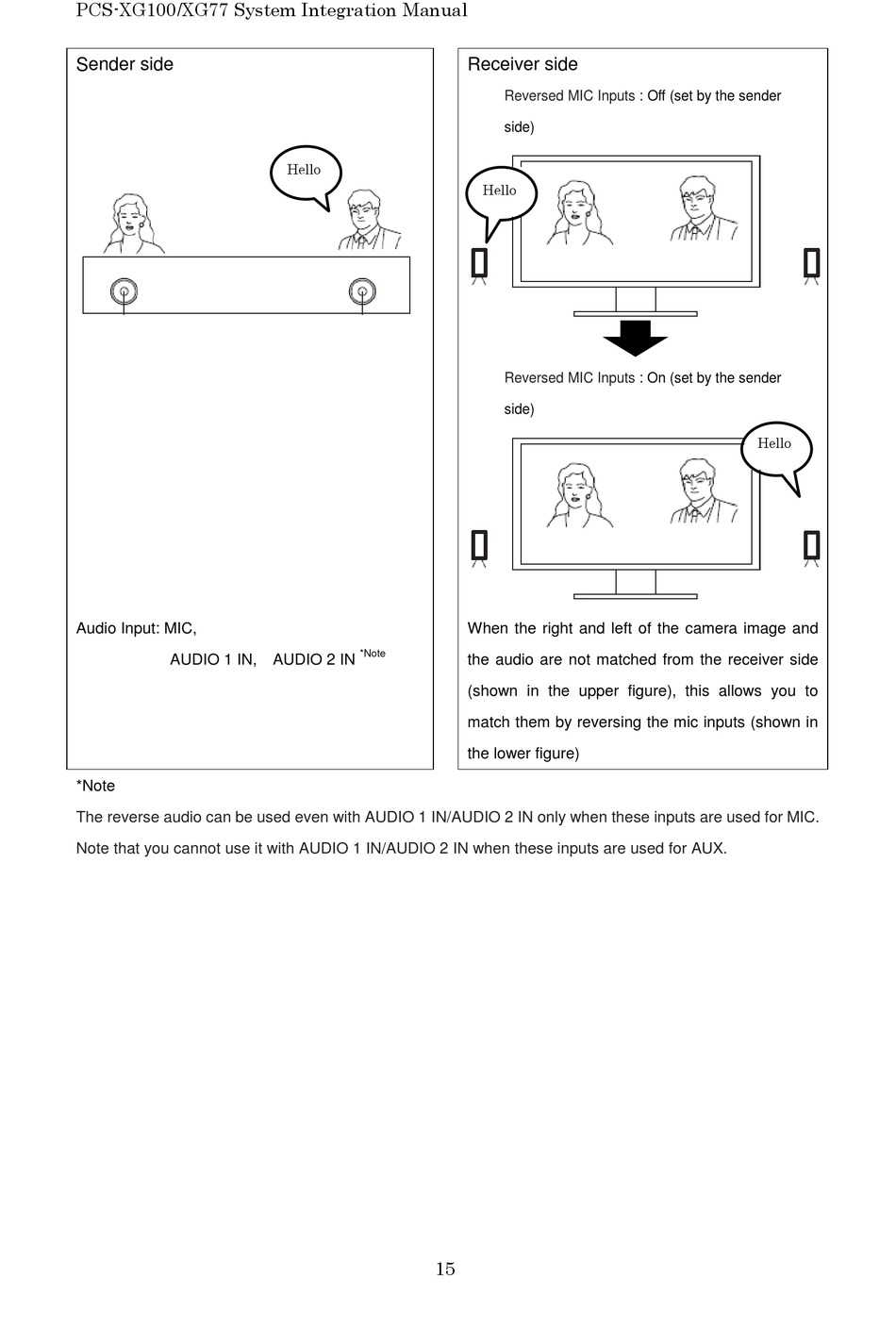

When the right and left of the camera image and

the audio are not matched from the receiver side

(shown in the upper figure), this allows you to

match them by reversing the mic inputs (shown in

the lower figure)

: Off (set by the sender

: On (set by the sender

Hello

ぉ
