PCS-XG100/XG77 System Integration Manual
1.5.

Audio Specifications and Settings

1.5.1.

Connector Input/Output Signals

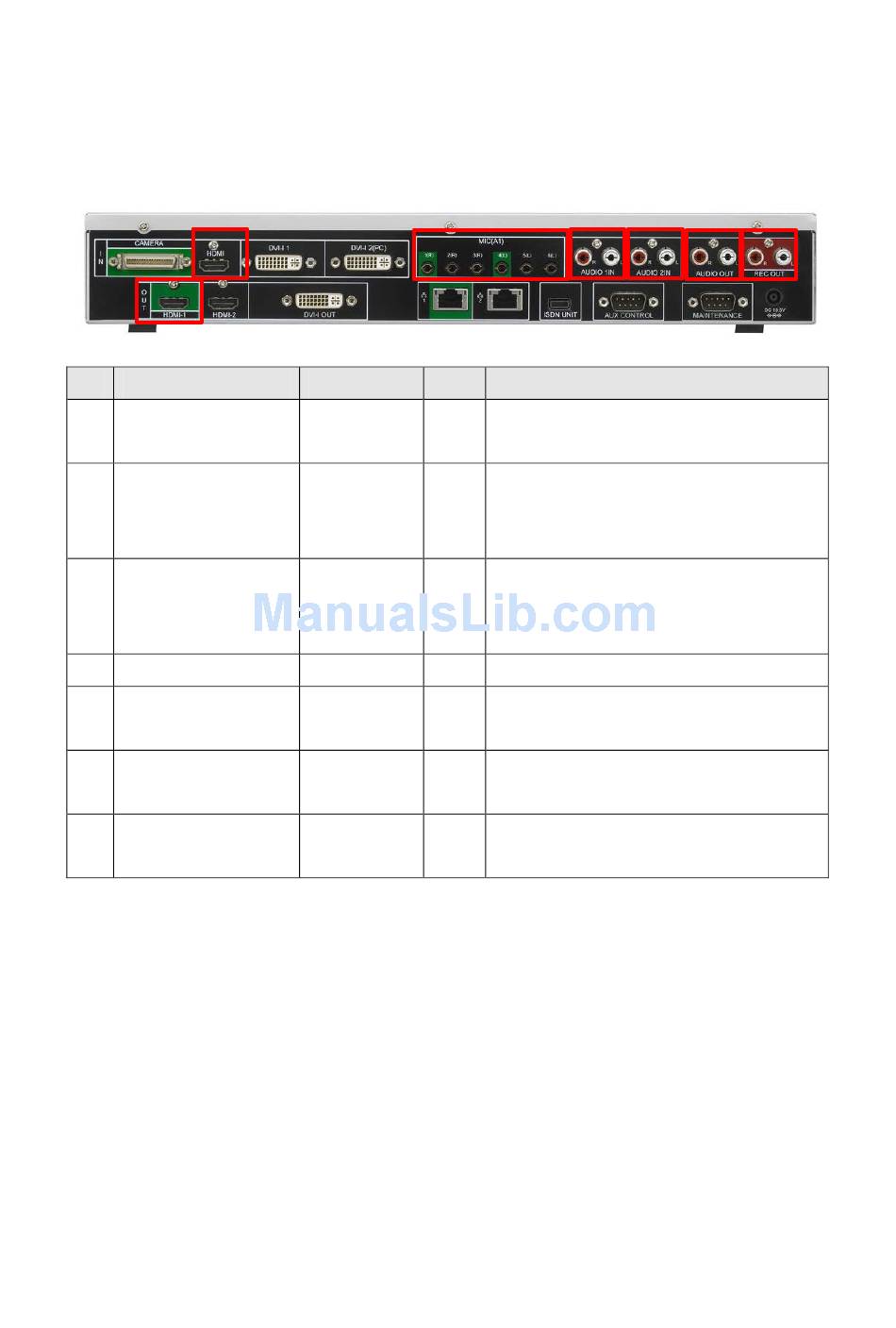

Rear Panel (Photo:PCS-XG100S)
(4)
(7)
No
Connector Name
(1)
MIC (A1) IN
1 to 3 (R), 4 to 6 (L)
(2)
AUDIO 1 IN (L/R)
(3)
AUDIO 2 IN (L/R)
(4)
HDMI IN *Note
(5)
AUDIO OUT (L/R)
(6)
REC OUT (L/R)
(7)
HDMI-1 OUT
*Note
HDMI-2 OUT
0dBs=0.775V
*Note: HDMI IN and HDMI-2 OUT connectors are not available on the PCS-XG77S.
HDMI-1 OUT is called HDMI OUT for the PCS-XG77S.
Type
I/O
Mini jack
I
RCA
I
RCA
I
HDMI
I
RCA
O
RCA
O
HDMI
O
12
(2)
(1)
(3)
Specifications
Standard Value: -55dBs
Impedance: 4.8k ohm (plug in power 2.5V)
+9dBs max (max:clip level)
Standard Value: -11dBs
Impedance: 47k ohm or more, Unbalanced
+9dBs max (max:clip level)
Standard Value: -11dBs
Impedance: 47k ohm or more, Unbalanced
2ch linear PCM, 32/44.1/48 kHz
+6dBs max, Standard Value: -14dBs
Impedance: 1k ohm or less
+6dBs max, Standard Value: -14dBs
Impedance: 1k ohm or less
2ch linear PCM, 32/44.1/48 kHz
(5)
(6)
