6 Engage the printhead and lock the printhead by tightening the two
screws at the top of the printhead bracket (the reverse action of Step 3).
7 Load the ribbon (only in case of thermal transfer printing).
8 Test the print quality and readjust if necessary.
To reset dot line position to factory default setting

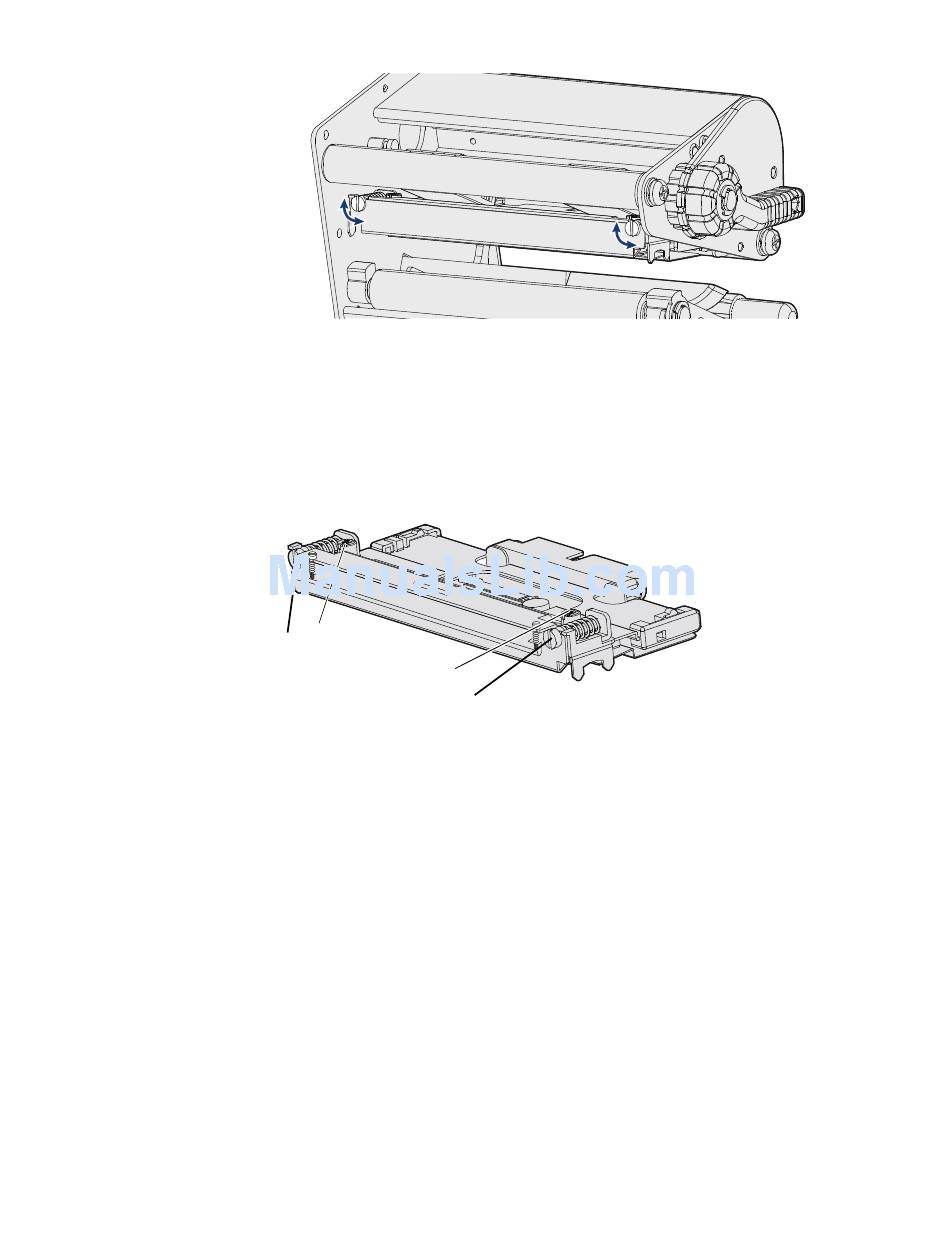

1 Release screws A and B (half a turn is enough).
A
C
B
2 Tighten screws C and D (counterclockwise) as far as they will go. Be
careful not to overdo it, as it may damage the threads.
3 Unscrew screws C and D 5 full turns (200 dpi printhead) or 1 ½ turns
(300 dpi printhead).
4 Tighten screws A and B.
D
