Side Panels

Right-Hand Door

EasyCoder PD41/PD42 Printer Service Manual
This section describes the right-hand door assembly that covers the media
compartment and the left-hand side panel that covers the electronics
compartment.
The right-hand door covers the media compartment, which contains the
print mechanism, the transfer ribbon mechanism, the media supply, and
the optional rewinder. The door is attached to the center section with two
hinges and can be opened 180° to facilitate ribbon and media load.

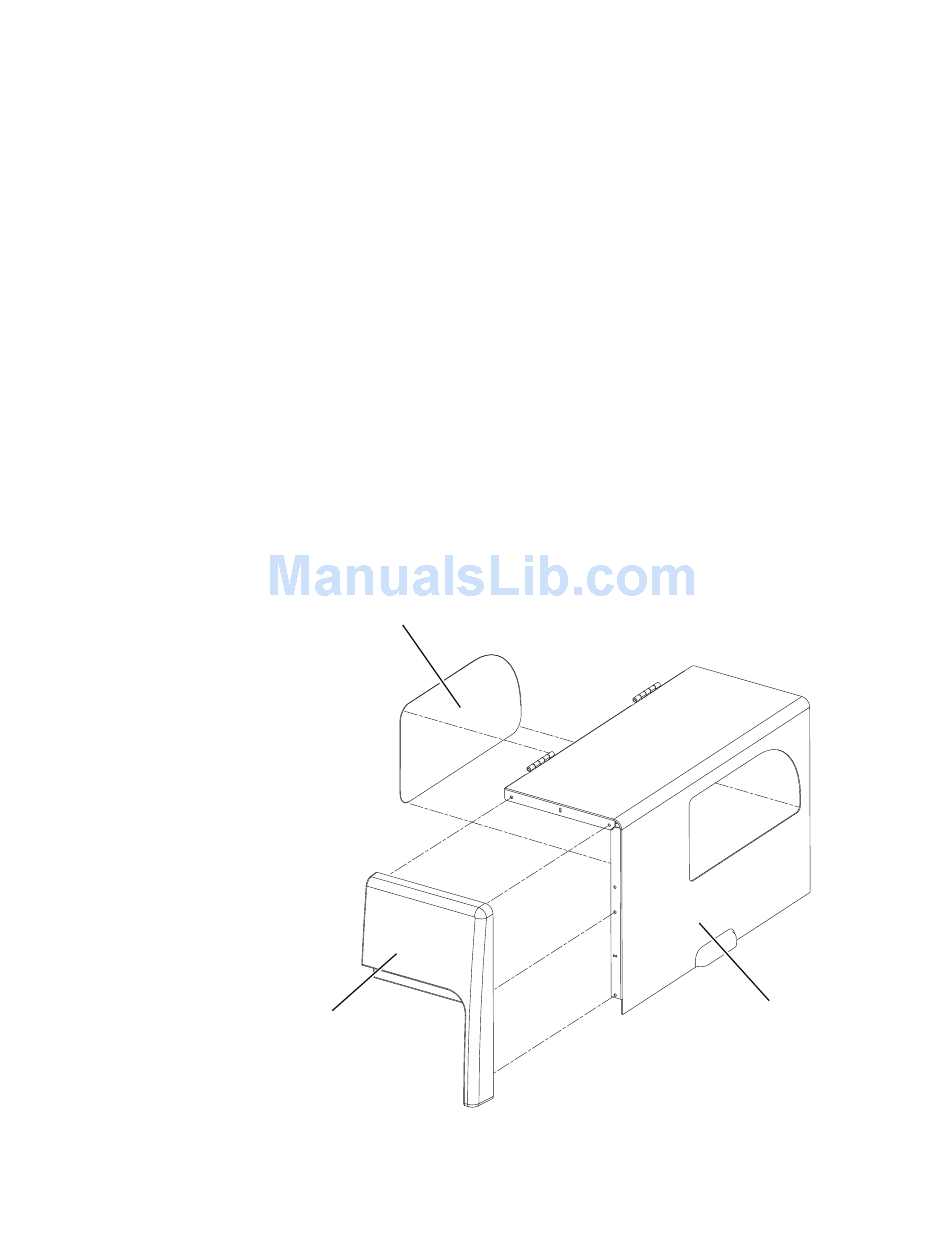

The door assembly consists of a hinged door to which the top right panel is
fitted using four screws. A clear plastic inspection window is glued to the
inside of the door. A media and ribbon load instructions label is fitted
inside the top part of the door.
The door assembly is available as a complete unit. The top/right panel can
be replaced separately and is attached to the door using a total of four
screws (not included).
To remove the right-hand door
Remove the four screws that attach the hinges to the center section.
Window
Top/Right Panel
Right-Hand Door
Chapter 3 — Replacing Parts
Right-hand
Door
25
