EasyLAN Ethernet Interface

Installing the EasyLAN Ethernet Interface

EasyCoder PD41/PD42 Printer Service Manual
The EasyLAN interface board provides the printer with a 10/100 Mbit
Ethernet connection. The port is equipped with two LED indicators that
inform the user of the state of the connection:
EasyLAN LED Indicators
LED Indicator On
Green Link
Yellow 100Mbit/s
This chapter only describes the physical installation of the EasyLAN
interface board; for detailed configuration and setup instructions, please
refer to the EasyLAN Software for PD41/PD42 Instructions (P/N 943-130-
xxx) and the EasyLAN User's Guide (P/N 1-960590-03).

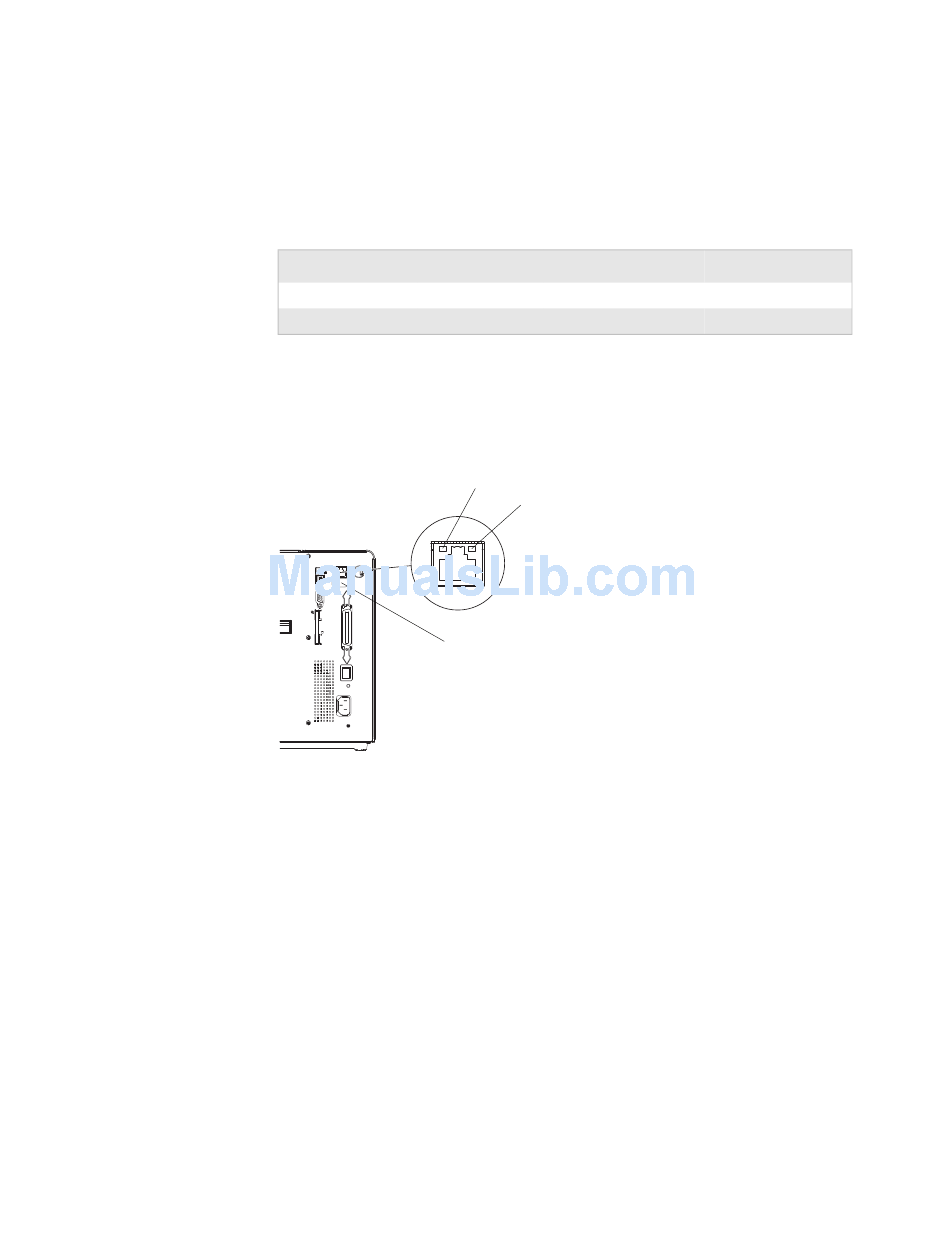

Yellow LED
MAC Address Label
I O
The installation kit contains:
• EasyLAN Ethernet interface board
• MAC address label
To install the EasyLan Ethernet Interface
1 Disconnect the power cord and remove the left-hand panel (For help,
see "To remove the left-hand panel" on page
2 Put the printer back in upright position.
3 Locate the screw in the upper left corner of the electronics compartment
that holds the main board in place. Remove the screw.
Off
No Link
10Mbit/s
Green LED
27).
Chapter 4 — Interfaces
Flashing
Data Activity
N/A
91
