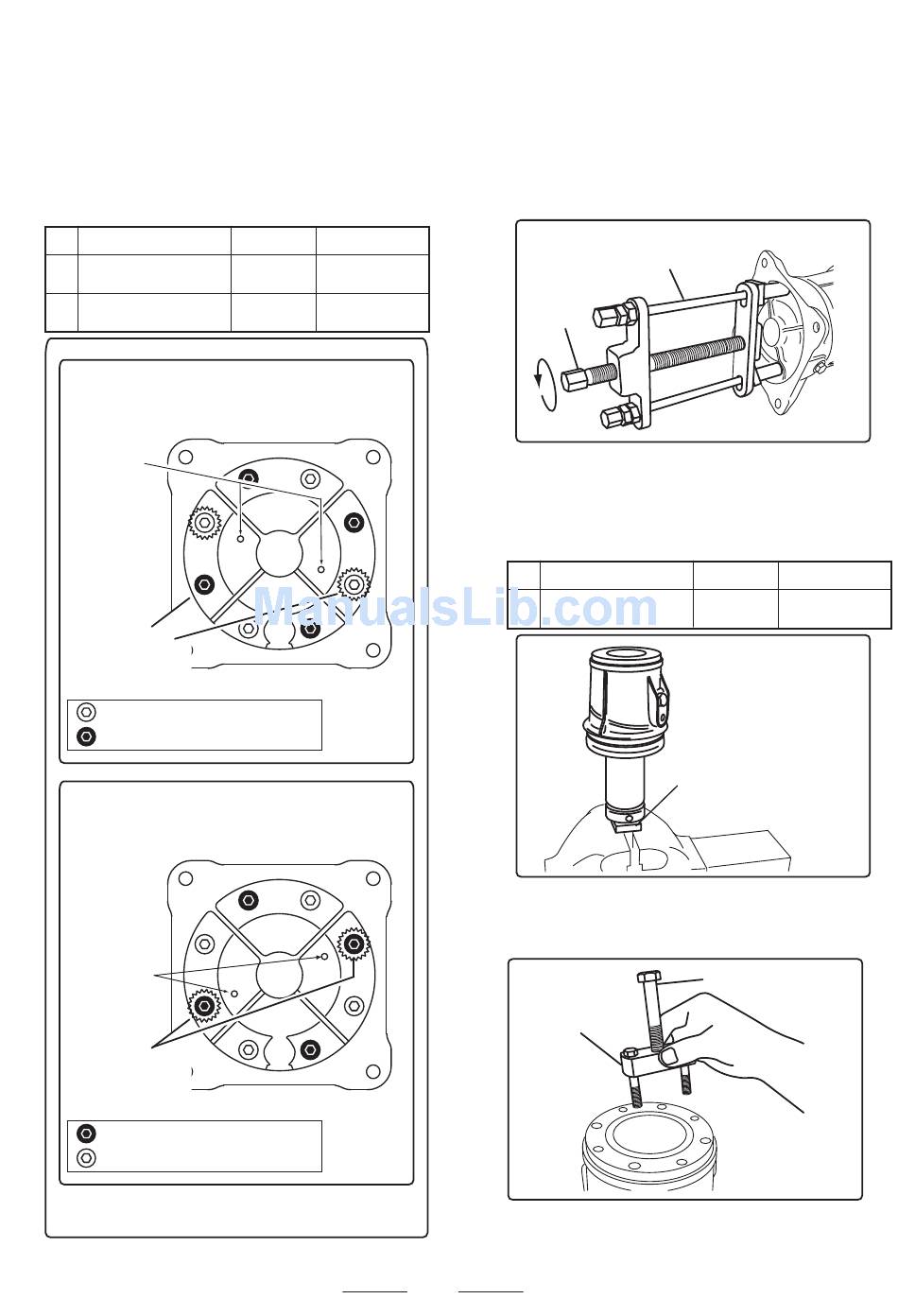

MULTIQUIP MTX SERIES Service Manual page 14

i) In case of MTX-70 / 80 / 90
1) Unscrew 2 pcs bolts which marked foot
plate. (fig.12)
Assemble the spring cylinder remover(P/N:
9830-10040) there.Then, unscrew 6 pcs
remaining bolts after tightening the center
bolt of the spring cylinder remover.
No.
Size
Socket Head Bolt
15
M10X20
Socket Head Bolt
16
M10X40
MTX-60
Backside of "Foot plate"
Front (Front cover side)
Mark
Special tool
wearing point
Rear (Engine side)
Socket head bolt M10 x 20(15)
Socket head bolt M 8 x 40(16)
MTX-70 / 80 / 90
Backside of "Foot plate"
Front (Front cover side)
Mark
Special tool
wearing point
Rear (Engine side)
Socket head bolt M10 x 20(15)
Socket head bolt M10 x 40(16)
Tightening
Remarks
torque
68.6N ・ m
Apply Loctite
(50.6ft ・ lbf)
#221
53.9N ・ m
Apply Loctite
(39.8ft ・ lbf)
#221
fig.12
2) Loosening the center bolt of the spring cyl
inder remover slowly will remove the foot
plate (13). (fig.13)
Remove the spring cylinder remover when
decreasing pressure of main springs (9).
Then, remove the lower main springs (9)
and lower stopper (8).
Special tool
(Spring cylinder remover)
Center
bolt
Load the piston rod holder (P/N:9839-10030)
H.
to the vice, and put the spring cylinder as-
sembly which removed the foot plate upside
down to it. Then, remove the bolt (5), SW and
PW, which fixing the piston end (4). (fig.14)
No.
Bolt M12X30
5
(Fine Pitch Thread)
I.
Assemble the piston end remover (P/N:9839-
10010) to the piston end(4), and tightening
the center bolt of it. (fig.15)
Special tool
(Piston end
remover)
11
Tightening
Size
torque
117.6N ・ m
(83.7ft ・ lbf)
Special tool
(Piston rod holder)
Center bolt
fig.13
Remarks
Apply Loctite
#221
fig.14
fig.15
