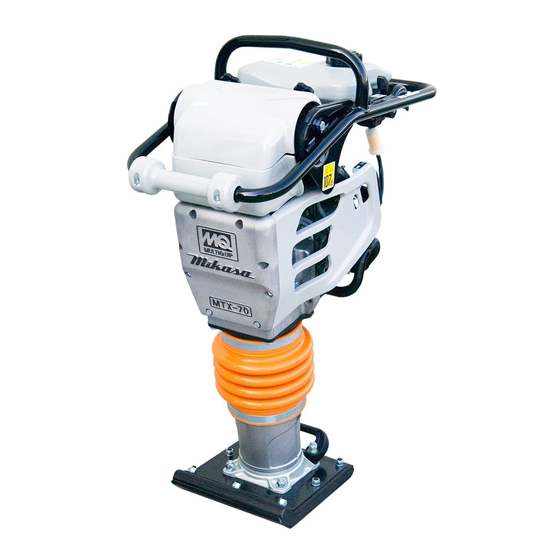

OPERATION AND PARTS MANUAL
SERIES
MODEL MTX-60
TAMPING RAMMER
(HONDA
GASOLINE ENGINE)
GX100UKRBF
Revision #7 (06/28/19)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mikasa Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MULTIQUIP Mikasa Series

Summary of Contents for MULTIQUIP Mikasa Series

  • Page 1 OPERATION AND PARTS MANUAL SERIES MODEL MTX-60 TAMPING RAMMER (HONDA GASOLINE ENGINE) GX100UKRBF Revision #7 (06/28/19) To find the latest revision of this publication, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

  • Page 2: Proposition 65 Warning

    PROPOSITION 65 WARNING PAGE 2 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 3 NOTES MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19) — PAGE 3...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS MTX-60 Rammer Honda GX100KRBF Engine Proposition 65 Warning ........... 2 Cylinder Barrel Assembly......... 36-37 Table Of Contents ........... 4 Crankcase Cover Assembly......38-39 Parts Ordering Procedures ........5 Crankshaft Assembly........40-41 Safety Information ..........6-9 Piston/Connecting Rod Assembly.....

  • Page 5: Parts Ordering Procedures

    , 2006 Order via Internet (Dealers Only) Best Deal! If you have an MQ Account, to obtain a Username Order parts on-line using Multiquip’s SmartEquip website! and Password, E-mail us at: parts@multiquip. com. View Parts Diagrams Order Parts To obtain an MQ Account, contact your District Sales Manager for more information.

  • Page 6: Safety Information

    SAFETY INFORMATION Do not operate or service the equipment before reading Potential hazards associated with the operation of this the entire manual. Safety precautions should be followed equipment will be referenced with hazard symbols which at all times when operating this equipment. may appear throughout this manual in conjunction with Failure to read and understand the safety safety messages.
  • Page 7 NEVER lubricate components or attempt service on a NEVER use accessories or attachments that are not running machine. recommended by Multiquip for this equipment. Damage NOTICE to the equipment and/or injury to user may result. ALWAYS keep the machine in proper running condition.
  • Page 8 SAFETY INFORMATION ENGINE SAFETY FUEL SAFETY DANGER DANGER The engine fuel exhaust gases contain poisonous carbon DO NOT add fuel to equipment if it is placed inside truck monoxide. This gas is colorless and odorless, and can bed with plastic liner. Possibility exists of explosion or cause death if inhaled.
  • Page 9 SAFETY INFORMATION TRANSPORTING SAFETY CAUTION NEVER allow any person or animal to stand underneath the equipment while lifting. NOTICE Before lifting, make sure that the equipment parts (hook and vibration insulator) are not damaged and screws are not loose or missing. Always make sure crane or lifting device has been properly secured to the lifting bail (hook) of the equipment.

  • Page 10: General Information

    GENERAL INFORMATION DEFINITION OF TAMPING RAMMER CAUTION — Handle Operation The Mikasa MTX-60 tamping rammer is a powerful compacting tool capable of applying a tremendous force Before starting operation check the in consecutive impacts to a soil surface. Its applications lifting handle to: include soil compacting for road, embankments and reservoirs as well as backfilling for gas pipelines, water...

  • Page 11: Specifications

    SPECIFICATIONS Table 1. MTX-60 Rammer Specifications Overall Height 38.8 in. (985 mm) Overall Width 13.8 in. (350 mm) Over Length 28.1 in. (713 mm) Shoe Size (W x L) 10.4 x 13.4 in. (265 x 340 mm) Fuel Tank Capacity 2.1 qt.

  • Page 12: Controls And Components

    CONTROLS AND COMPONENTS Figure 1. MTX-60 Rammer Figure 1 shows the location of the controls and compo- 9. Fuel Tank – Holds the fuel for the unit (up to 3.2 quarts) nents for the MTX-60 Tamping Rammer. The functions of 10.

  • Page 13: Basic Engine

    BASIC ENGINE Figure 2. Engine Controls and Components (Honda GX100) The engine (Figure 2) must be checked for proper lubrica- 4. Muffler – Used to reduce noise and emissions. tion and filled with fuel prior to operation. Refer to the 5.

  • Page 14: Operation

    OPERATION This section is intended to assist the operator with the ini- ENGINE tial start-up of the MTX-60 Tamping Rammer. It is extremely 1. Fill the fuel tank (Figure 3) with unleaded gasoline. At important that this section be read carefully before attempt- the same time, check the engine oil and make it a habit ing to operate the rammer.
  • Page 15 OPERATION INSPECTION DO NOT press the primer pump bulb 1. Check all nuts, bolts fasteners for tightness. Retighten more than four (4) times, as this will cause as necessary. fuel to flood the carburetor. 2. Clean any dirt from the recoil starter and foot pedestal. Wipe the entire unit clean before operating.
  • Page 16 OPERATION OPERATION STOPPING THE ENGINE 1. To start the rammer tamping action, move the throttle 1. Move throttle lever quickly from the START to IDLE lever (Figure 8) quickly from IDLE to the START position (Figure 9) and run the engine for three minutes ) position.

  • Page 17: Maintenance

    MAINTENANCE EVERY 200 HOURS Perform the scheduled maintenance procedures as indicated: DAILY Remove the oil drain plug on foot housing (Figure 13) and drain the oil. Refill with approximately 0.69 qt. (0.65  Thoroughly remove dirt and oil from the engine and liter) of 10W-30 SE, SF or higher grade motor oil.

  • Page 18: Troubleshooting

    TROUBLESHOOTING i t o i t u c i f t l u l i a i t i n d i r i t i n l i w . e t i s o o i t i c a l o i t i l i a...
  • Page 19 TROUBLESHOOTING i t o n i t i t u i t a f s i s u j e r r v e l . l e i r p v i t c a l o i t i o i t u l f l f l...

  • Page 20: Explanation Of Code In Remarks Column

    A blank entry generally indicates that the item is not sold assembly/kit that can be purchased, or is not available separately or is not sold by Multiquip. Other entries will for sale through Multiquip. be clarified in the “Remarks” Column.

  • Page 21: Suggested Spare Parts

    SUGGESTED SPARE PARTS MTX-60 RAMMER 1 TO 3 UNITS WITH HONDA GX100UKRBF ENGINE Qty. Description 1 ..956100062 ..... THROTTLE WIRE 3 ..366010070 ..... PRIMARY ELEMENT, AIR CLEANER 3 ..366010080 ..... SECONDARY ELEMENT, AIR CLEANER 1 ..366345570 ..... CAP, FUEL TANK W/ STRAP 2 ..

  • Page 22: Nameplate And Decals

    NAMEPLATE AND DECALS NAME PLATE AND DECALS ASSY. > > “ … ‰ “ † † ‡ — ‚ ‰ “ ‰ — Ž Œ & Made in Japan ‡ ‘ ’ ‡ € “ ’ ƒ ‚ > € —...
  • Page 23 NAMEPLATE AND DECALS NAME PLATE AND DECALS ASSY. PART NO. PART NAME QTY. REMARKS 920212910 OPERATION DECAL 920212460 AIR CLEANER DECAL ..........1 ..NPA-1246 920212470 LEVER OPERATION DECAL 920212490 MAX SPEED DECAL 4100 920212480 MACHINE STOP DECAL 920210310 EC NOISE REQ. DECAL LWA107 920212840 CHOKE OPERATION DECAL 920212540...

  • Page 24: Crankcase And Engine Assembly

    CRANKCASE AND ENGINE ASSY. CRANKCASE AND ENGINE ASSY. 36-4 36-3 71-1 36-2 71-2 71-3 36-1 36-7 36-9 36-8 42-1 36-5 42-2 42-3 54-1 54-2 32-1 32-1 43-2 43-1 STYLE CLUTCH 54-2 54-1 STYLE CLUTCH 25-2 25-1 54-2 54-1 PAGE 24 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 25 CRANKCASE AND ENGINE ASSY. CRANKCASE AND ENGINE ASSY. PART NO. PART NAME QTY. REMARKS 368119170 CRANKCASE CP ............1 ..INCLUDES ITEM W/ 009120204 STUD BOLT 10X50X21T/21S 041006007 BEARING 6007Z 368347410 PINION DRUM 060404010 OIL SEAL TC - 40528 080200350 STOP RING S-35 080100620 STOP RING R-62...

  • Page 26: Crankcase And Engine Assembly

    CRANKCASE AND ENGINE ASSY. CRANKCASE AND ENGINE ASSY. 36-4 36-3 71-1 36-2 71-2 71-3 36-1 36-7 36-9 36-8 42-1 36-5 42-2 42-3 54-1 54-2 32-1 32-1 43-2 43-1 STYLE CLUTCH 54-2 54-1 STYLE CLUTCH 25-2 25-1 54-2 54-1 PAGE 26 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 27 CRANKCASE AND ENGINE ASSY. CRANKCASE AND ENGINE ASSY. (continued) PART NO. PART NAME QTY. REMARKS 366460150 SIDE SEALING FORM 42-1 001220851 BOLT 8X55 T 42-2 030208200 WASHER, LOCK M8 42-3 031108160 WASHER, FLAT M8 43-1 001210815 BOLT 8X15 H 43-2 030208200 WASHER, LOCK M8 368217760...

  • Page 28: Guide Cylinder Assembly

    GUIDE CYLINDER ASSY. GUIDE CYLINDER ASSY. PAGE 28 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 29 GUIDE CYLINDER ASSY. GUIDE CYLINDER ASSY. PART NO. PART NAME QTY. REMARKS 368461210 PISTON PIN 368459920 PISTON PIN PLUG 368347290 PISTON ROD 368461160 PISTON END 001121230 BOLT 12X30 T 030212300 WASHER, LOCK M12 952404790 WASHER 13306 368461260 LOWER STOPPER 368461200 BOTTOM STOPPER 368461270 MAIN SPRING...

  • Page 30: Foot Assembly

    FOOT ASSY. FOOT ASSY. PAGE 30 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 31 FOOT ASSY. FOOT ASSY. PART NO. PART NAME QTY. REMARKS 362910150 FOOT ASSY 265W M4B 022711214 NYLON NUT M12 030212300 WASHER, LOCK M12 009110034 SQUARE NECK BOLT 12X65 009110035 SQUARE NECK BOLT 12X95 368347460 FOOT COVER 363343390 HANDLEBAR GRIP (FOOT) MTX-60 RAMMER •...

  • Page 32: Fuel Tank And Handle Assembly

    FUEL TANK AND HANDLE ASSY. FUEL TANK AND HANDLE ASSY. FOR CARBURETORS WITHOUT PRIMING BULBS FOR CARBURETORS WITH PRIMING BULBS 12-2 12-1 12-2 12-1 110 1 12-2 12-1 NOTES ITEM 110, PRIMER PUMP KIT, FOR USE ON UNITS WITH S/N T-3424 AND ABOVE PAGE 32 —...
  • Page 33 FUEL TANK AND HANDLE ASSY. FUEL TANK AND HANDLE ASSY. PART NO. PART NAME QTY. REMARKS 368347630 SHOCK ABSORBER W/ PIN 001521020 SOCKET HEAD BOLT 10X20 T 033121009 TOOTHED LOCK WASHER B M10 368119570 HANDLE 001211020 BOLT 10X20 H 030210250 WASHER, LOCK M10 939010270 RUBBER STOPPER (70)

  • Page 34: Combination Lever Assembly

    COMBINATION LEVER ASSY. COMBINATION LEVER ASSY. PAGE 34 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 35 COMBINATION LEVER ASSY. COMBINATION LEVER ASSY. PART NO. PART NAME QTY. REMARKS 366900032 COMB. LEVER W/ THROTTLE WIRE ......1 ..INCLUDES ITEMS W/@ 956200110 COMB. LEVER W/OUT THROTTLE WIRE ....1 ..INCLUDES ITEMS W/ # 366346260 FUEL COCK, OLD STYLE ..........1 ..NLA, MUST ORDER ITEM A OR B 366349430 FUEL COCK, NEW STYLE 366010180...

  • Page 36: Honda Gx100Krbf Engine

    HONDA GX100KRBF ENGINE — CYLINDER BARREL ASSY. CYLINDER BARREL ASSY. PAGE 36 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 37 HONDA GX100KRBF ENGINE — CYLINDER BARREL ASSY. CYLINDER BARREL ASSY. PART NO. PART NAME QTY. REMARKS 12000Z0DV00 BARREL ASSY., CYLINDER ........1 ..INCLUDES ITEMS W/ 12201Z0D305 GUIDE ASSY., EX VALVE (O.S.) 12204Z0D305 GUIDE, INLET VALVE (O.S) 12311Z0D000 COVER, HEAD T 12355Z0D000 COVER COMP A, BREATHER 12365Z0D000 COVER COMP B, BREATHER 15571Z0DV71 VALVE, OIL OUTLET...

  • Page 38: Crankcase Cover Assembly

    HONDA GX100KRBF ENGINE — CRANKCASE COVER ASSY. CRANKCASE COVER ASSY. PAGE 38 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 39 HONDA GX100KRBF ENGINE — CRANKCASE COVER ASSY. CRANKCASE COVER ASSY. PART NO. PART NAME QTY. REMARKS 11300Z0D409 COVER ASSY., CRANK CASE ........1 ..INCLUDES ITEMS W/ 15600ZM7003 OIL FILLER CAP ASSY ..........2 ..INCLUDES ITEMS W/# 15625ZE1003 PACKING, OIL FILLER CAP 16510ZL8000 GOVERNOR ASSY.

  • Page 40: Crankshaft Assembly

    HONDA GX100KRBF ENGINE — CRANKSHAFT ASSY. CRANKSHAFT ASSY. 85.3 PAGE 40 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 41 HONDA GX100KRBF ENGINE — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 13310Z0DV70 CRANK SHAFT COMP..........1 ..INCLUDES ITEM W/ 91001Z0DV01 BEARING, RADIAL BALL MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19) — PAGE 41...

  • Page 42: Piston/Connecting Rod Assembly

    HONDA GX100KRBF ENGINE — PISTON/CONN. ROD ASSY. PISTON AND CONNECTING ROD ASSY. PAGE 42 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 43 HONDA GX100KRBF ENGINE — PISTON/CONN. ROD ASSY. PISTON AND CONNECTING ROD ASSY. PART NO. PART NAME QTY. REMARKS 13010Z0D003 RING SET, PISTON 13101Z0D000 PISTON 13111ZE0000 PISTON PIN 13200Z0D000 CONNECTING ROD ASSY......1 ....INCLUDES ITEM W/ 13200Z0D305 CONNECTING ROD ASSY......1 ....UNDERSIZE, INCLUDES ITEM W/ 90001ZM7000 CONNECTING ROD BOLT 90551ZE0000 CLIP, PISTON PIN 13MM MTX-60 RAMMER •...

  • Page 44: Camshaft Assembly

    HONDA GX100KRBF ENGINE — CAMSHAFT ASSY. CAMSHAFT ASSY. PAGE 44 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 45 HONDA GX100KRBF ENGINE — CAMSHAFT ASSY. CAMSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 14320Z0D010 PULLEY, COMP., CAMSHAFT 14324Z0D000 SHAFT, CAM PULLEY 14400Z0D003 TIMING BELT (61YU7 G-200) 14431Z0D000 ROCKER ARM, INTAKE VALVE 14441Z0D000 ROCKER ARM, EXHAUST VALVE 14461ZL8000 SHAFT, ROCKER ARM 14711Z0D000 INLET VALVE 14721Z0D000 EXHAUST VALVE 14751Z0D000 SPRING, VALVE...

  • Page 46: Recoil Starter Assembly

    HONDA GX100KRBF ENGINE — RECOIL STARTER ASSY. RECOIL STARTER ASSY. PAGE 46 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 47 HONDA GX100KRBF ENGINE — RECOIL STARTER ASSY. RECOIL STARTER ASSY. PART NO. PART NAME QTY. REMARKS 28400Z0DV03ZA RECOIL STARTER ASSY ....... 1 ..INCLUDES ITEMS W/ 28410Z0DV02ZA CASE COMP., RECOIL *5-3-5 28421Z0DV02 REEL, RECOIL STARTER 28422ZG0W02 RATCHET, STARTER 28433ZG0W02 GUIDE, RATCHET 28441ZW6003 SPRING, FRICTION 28442ZH8003...

  • Page 48: Fan Cover Assembly

    HONDA GX100KRBF ENGINE — FAN COVER ASSY. FAN COVER ASSY. PAGE 48 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 49 HONDA GX100KRBF ENGINE — FAN COVER ASSY. FAN COVER ASSY. PART NO. PART NAME QTY. REMARKS 19610Z0DV00ZB FAN COVER CP. 90014952000 BOLT, FLANGE 6X14 (CT200) MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19) — PAGE 49...

  • Page 50: Carburetor Assy (S/N T-3423 And Below)

    HONDA GX100KRBF ENGINE — CARBURETOR ASSY. (S/N T-3423 AND BELOW) CARBURETOR ASSY. (S/N T-3423 AND BELOW) PAGE 50 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 51 HONDA GX100KRBF ENGINE — CARBURETOR ASSY. (S/N T-3423 AND BELOW) CARBURETOR ASSY. (S/N T-3423 AND BELOW) PART NO. PART NAME QTY. REMARKS 16010Z0DV02 GASKET, METALING DIAPHRAGM 16011Z0DV02 GASKET, PUMP 16013Z0DV02 DIAPHRAGM ASSY, METALING 16014Z0DV02 DIAPHRAGM, PUMP 16018ZM3004 SCREEN, INLET 16019ZM3004 VALVE, INLET NEEDLE 16022ZM3014 PIN, METALING LEVER 16023Z0DV02 LEVER, METALING 16030ZM3004 SPRING, PUMP...

  • Page 52: Carburetor Assy (S/N T-3424 And Above)

    HONDA GX100KRBF ENGINE — CARBURETOR ASSY. (S/N T-3424 AND ABOVE) CARBURETOR ASSY. (S/N T-3424 AND ABOVE) PAGE 52 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 53 HONDA GX100KRBF ENGINE — CARBURETOR ASSY. (S/N T-3424 AND ABOVE) CARBURETOR ASSY. (S/N T-3424 AND ABOVE) PART NO. PART NAME QTY. REMARKS 16010Z0DV02 GASKET, METERING DIAPHRAGM 16011Z0DV02 GASKET, PUMP 16013Z4ES32 DIAPHRAGM ASSY, METERING 16014Z0DV02 DIAPHRAGM, PUMP 16018ZM3004 SCREEN, INLET 16019ZM3004 VALVE, INLET NEEDLE 16022ZM3014 PIN, METERING LEVER 16023Z0DV02 LEVER, METERING 16030ZM3004 SPRING, PUMP...

  • Page 54: Air Cleaner Assembly

    HONDA GX100KRBF ENGINE — AIR CLEANER ASSY. AIR CLEANER ASSY. PAGE 54 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 55 HONDA GX100KRBF ENGINE — AIR CLEANER ASSY. AIR CLEANER ASSY. PART NO. PART NAME QTY. REMARKS 17228Z0DV01 PACKING, AIR CLEANER 90042Z4ES30 STUD BOLT 5X95 9405005000 FLANGE NUT 5MM 17410Z4ES30 ELBOW, AIR CLEANER MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19) — PAGE 55...

  • Page 56: Muffler Assembly

    HONDA GX100KRBF ENGINE — MUFFLER ASSY. MUFFLER ASSY. PAGE 56 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 57 HONDA GX100KRBF ENGINE — MUFFLER ASSY. MUFFLER ASSY. PART NO. PART NAME QTY. REMARKS 18310Z0DV20 MUFFLER COMP. 18321Z0DV20 MUFFLER PROTECTOR 18381Z0D000 GASKET, MUFFLER 90014952000 VOLT, FLANGE 6X14 (CT200) 90048Z0DV00 STUD BOLT 5X78 90343ZE6000 NUT, SELF-LOCK 6MM MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19) — PAGE 57...

  • Page 58: Flywheel Ignition Assembly

    HONDA GX100KRBF ENGINE — FLYWHEEL IGNITION ASSY. FLYWHEEL IGNITION ASSY. PAGE 58 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 59 HONDA GX100KRBF ENGINE — FLYWHEEL IGNITION ASSY. FLYWHEEL IGNITION ASSY. PART NO. PART NAME QTY. REMARKS 13331ZM7000 WOODRUFF KEY 25X18 30564ZA5000 GROMMET, CORD 31110Z0D003 FLYWHEEL COMP. 90022888010 FLANGE BOLT 6X20 9405012000 FLANGE NUT M12 28451Z0DV02 STARTER PULLEY 30500Z0DV02 IGNITION COIL ASSY ..........1 ..INCLUDES ITEMS W/ 30700Z0DV01 TERMINAL ASSY.

  • Page 60: Control Assembly

    HONDA GX100KRBF ENGINE — CONTROL ASSY. CONTROL ASSY. PAGE 60 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 61 HONDA GX100KRBF ENGINE — CONTROL ASSY. CONTROL ASSY. PART NO. PART NAME QTY. REMARKS 16555Z0DV00 GOVERNOR ROD 16561Z0DV00 GOVERNOR SPRING 16562Z0DV00 SPRING, THROTTLE RETURN 16594883010 HOLDER, WIRE 90014952000 VOLT, FLANGE 6X14 (CT200) 90015ZE5010 BOLT, GOVERNOR ARM 90605230000 CIR CLIP 92301050200A BOLT 5X20 93500040060H SCREW 4X6 9405006000 FLANGE NUT 6MM...

  • Page 62: Labels Assembly

    HONDA GX100KRBF ENGINE — LABELS ASSY. LABELS ASSY. PAGE 62 — MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19)
  • Page 63 HONDA GX100KRBF ENGINE — LABELS ASSY. LABELS ASSY. PART NO. PART NAME QTY. REMARKS 87521Z0DV01 LABEL, TRADE MARK 87528Z0D000 MARK, CHOKE 87601Z4ES30 MARK, TYPE (KRBF) 89216130690 WRENCH, SPARK PLUG MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19) — PAGE 63...

  • Page 64: Terms And Conditions Of Sale - Parts

    Multiquip be $5.00. meeting this requirement. liable for loss of profit or good will or for any Special order items.
  • Page 65 NOTES MTX-60 RAMMER • OPERATION AND PARTS MANUAL — REV. #7 (06/28/19) — PAGE 65...
  • Page 66 © COPYRIGHT 2019, MULTIQUIP INC. Multiquip Inc , the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.

This manual is also suitable for:

Mtx-60

Table of Contents
