H.
Unscrew a bolt (25) which is fixing the clutch.
Then, assemble the clutch puller B (P/N:9839
-10020) to the clutch by tightening 4 pcs pan
head screws, and tighten the center bolt B to
the crank shaft of engine. (fig.4)
I.
In addition, assemble the clutch puller A
(P/N:9810-10400) to the clutch puller B by
tightening 2 pcs bolts A, and tighten the
center bolt A. (fig.5)
Special tool
(Clutch puller "A")
Center bolt "A"
J.
Remove the clutch by shocking the top end of
center bolt A with plastic hammer. (fig.6)
If it doesn't remove, shock it after tightening
the center bolt A again.
Disassembling the engine is completed
above.
Special tool
(Clutch puller "B")
Center bolt "B"

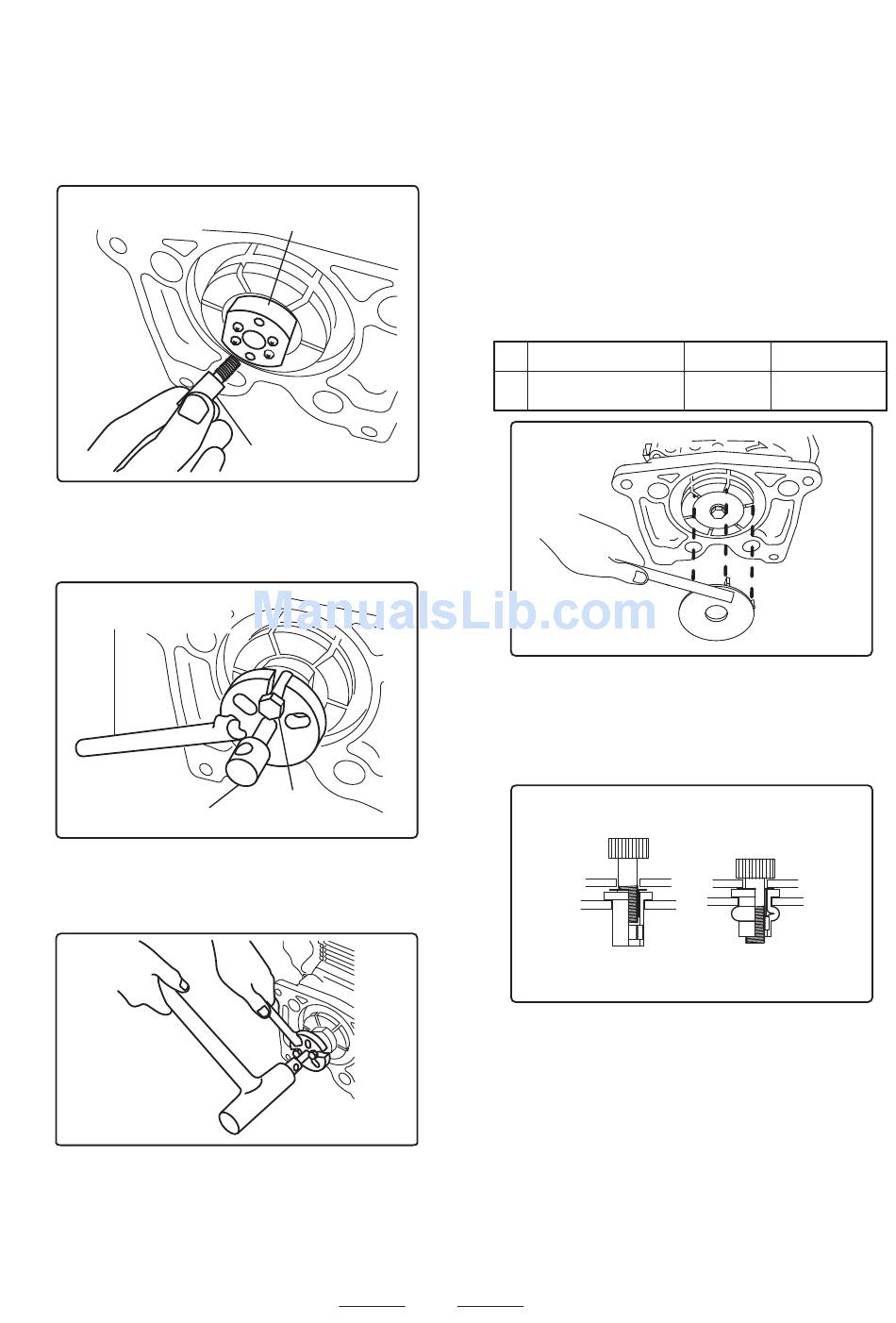

fig.4
Bolt "A"
fig.5
fig.6
(2) Reassembly
Reassemble with the reversed procedure of
disassembly with attention to the following
terms.
A.
Replace the clutch with new one, if it is dam-
aged.
B.
Degrease the engine shaft when assembling
the clutch.
C.
Tighten a bolt which is fixing the clutch by
fixing the clutch with the clutch mounter
(P/N:9830-10060). (fig.7)
No.
Size
25
Bolt M8X25
D.
Adjust the operating speed of engine as table
1.
E.
The well nut (53, 59) is tightened by com-
pressing the rubber of it when is tightening
the bolt. (fig.8)
9
Tightening
Remarks
torque
32.4N ・ m
Apply Loctite
(23.9ft ・ lbf)
#221
fig.7
fig.8
